How to use flame machine?

The printing of polyclinic materials often encounters the problem of ink shedding. The main reason is that it is composed of non-polar molecules. The printer will first choose a special polyclinic ink. If the adhesion of the ink does not meet the requirements, then Consider pre-treating the product surface, and flame treatment is a common and effective method.
The most suitable products for flame treatment are some cylindrical plastic bottles, and the effect is satisfactory no matter whether solvent-based ink or UV ink is used. The Flame Treatment Machine for plastic bottles is composed of a flame generating device and a conveyor belt. The conveyor belt is often equipped with a rotatable support cone. The bottle can be inserted into the cone and enter the flame treatment head with the conveyor belt. The inside of the flame treatment head is filled with compressed air and Combustible gas, after ignition, sprays out a flame with pressure, which can oxidize the surface of the bottle. For automatic screen printing machines, flame treatment devices have almost become a standard configuration.

SF250 Cylinder flame treatment Machine//Parameter
Technical parameters	Flame width:250mm; Burning Gas:LPG gas; Conveyor speed:0~10m/min; Outline dimension:2000X450X850mm; Conveyor size:2000X340mm; Combustion gas:Compressed air 8kg/cm2 ; Bottle mouth diameter: 25mm; Distance between Support seat: 100mm; Max Bottle diameter: 100mm.
Works supply	Power: 1 phase 220V; 5-7bar compress air; Combustible gas
Package list	Dimension: 2.350×0.700×1.200m; Gross weight; 240KG; 1.98CBM.
H.S.Code	8443198000
Certificate	CE

Advantage

Mainly used for the surface pretreatment of PE and PP plastic products;
Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement;
The machine is two sides equipped with baffle-boards to improve the heat efficiency;
Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy;
According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece

Why are polyolefin plastic bottles flame treated? :

Improve surface energy and improve ink adhesion

Polyolefin plastic bottles have low surface energy, low polarity and strong chemical inertness, so it is difficult for inks, paints, etc. to adhere well to their surfaces. Through flame treatment, the molecular chains on the polyolefin surface are oxidized and some polar functional groups are introduced, such as carbonyl groups, carboxyl groups, etc., thereby significantly increasing the surface energy and enhancing the affinity for inks, coatings, glues, etc., during subsequent printing operations. The pattern will be clearer and firmer, and the paste will be more stable.

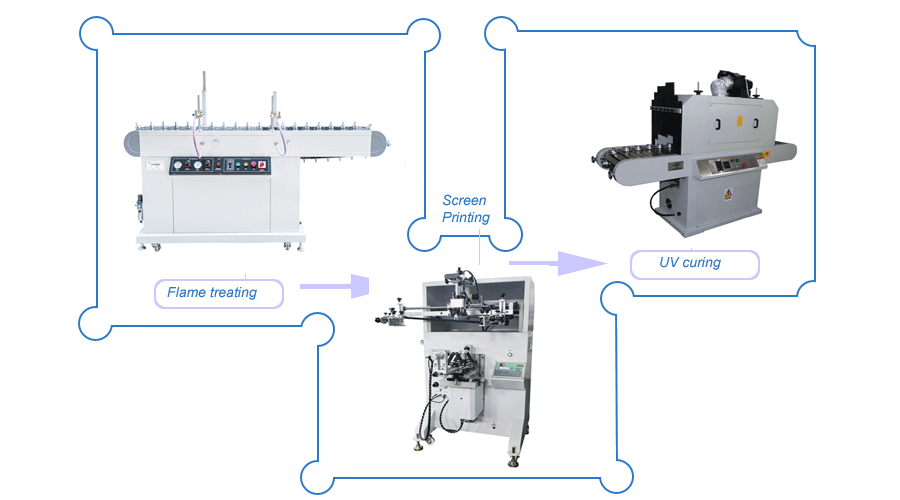

After polyolefin plastic bottles are processed, they can be screen printed with a semi-Automatic Screen Printing Machine, and the adhesion of the ink will be greatly improved. If you choose UV ink, the adhesion of UV ink will also be improved. Used with UV curing machines, small and medium-sized investments can be made.

With the continuous advancement of automated screen printing machines, flame treatment devices have become standard equipment and play an increasingly important role in the plastic packaging and printing industry!

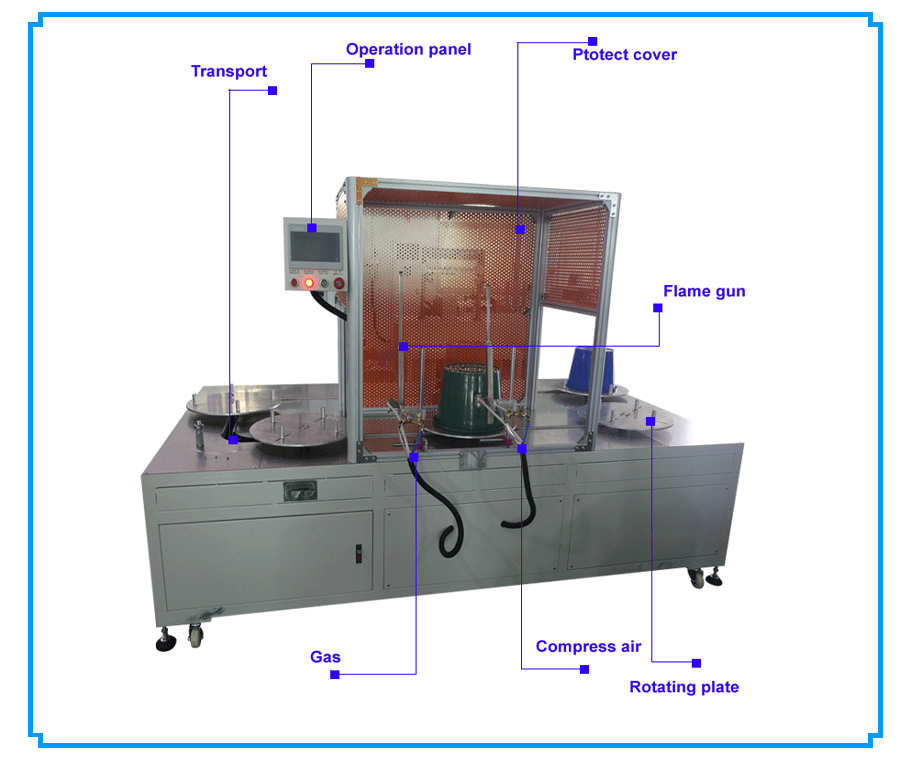

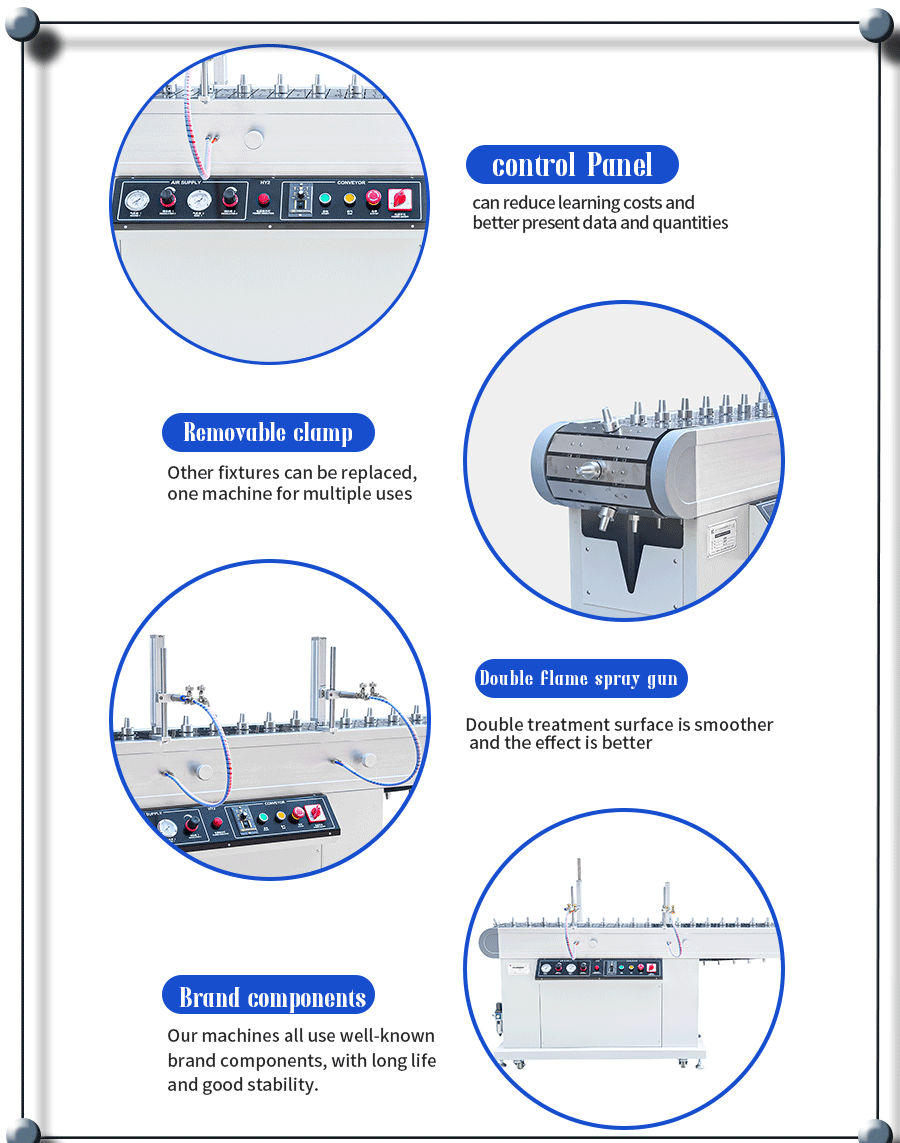

Machine details
