H-TC3040LP Flying disc hot stamping machine

H-TC3040LP Flying disc hot stamping machine

3 month ago

15 0

KC Printing Machine (Group) Limited

 9 year year

Product details

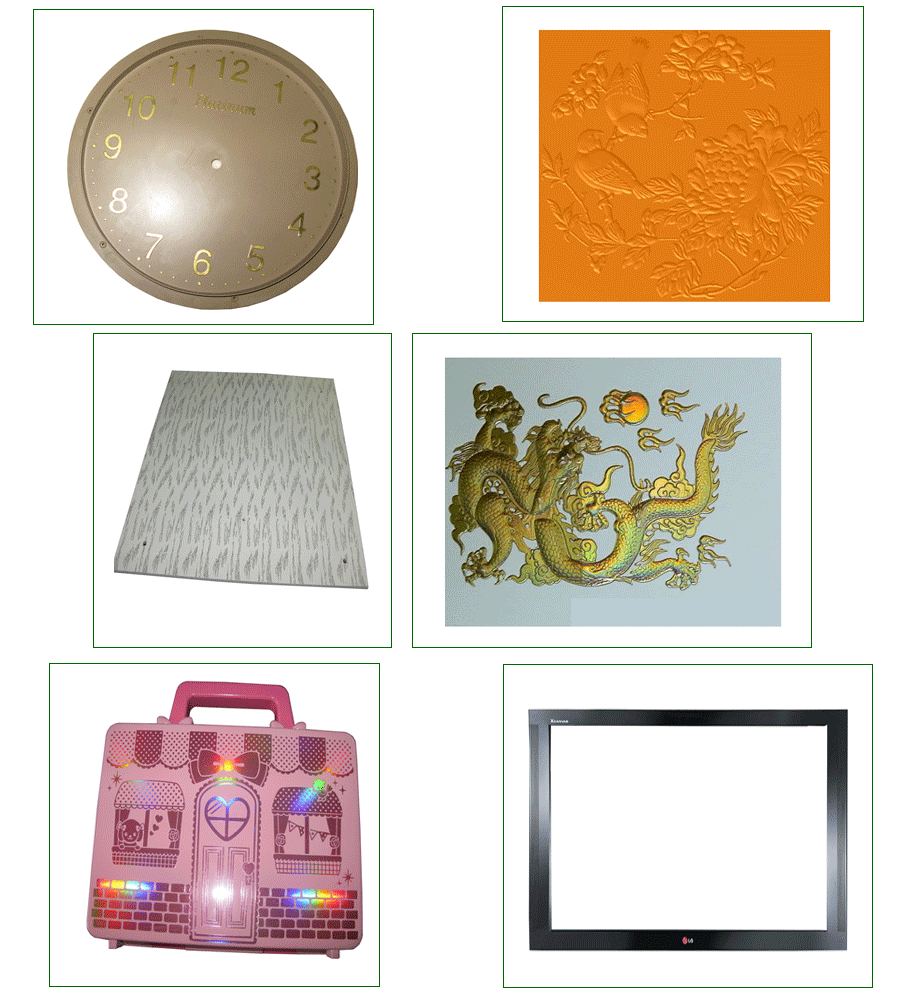

Usage- printed Samples

There will be huge pressure when the hot plate and the worktable are in contact, which is a potential safety hazard for all hot stamping machines. In order to improve the safety of the hot stamping machine, you can install a safety door, install a safety grating, and use a two-button operation mode. Another important practice is to set the workbench to enter and exit automatically. The workbench enters and exits automatically, which can facilitate the pick-and-place of the product and avoid the safety failure of the operator.
The automatic entry and exit of the workbench is also convenient for the operator to observe the product placement, which is more conducive to product positioning. The complete solution to the safety problem of the semi-automatic plane hot stamping machine is to use a fully automatic hot stamping machine, that is, automatic feeding, automatic hot stamping, and automatic unloading, which completely eliminates the possibility of the operator touching the hot plate and the workbench. However, during the debugging process of the machine, this kind of contact is still unavoidable, and it is necessary to carry out the necessary safety training for the operator.

Application areas:

Packaging industry

• Gift packaging: jewelry boxes, cosmetic boxes, etc.

• Food and beverage packaging: can be used for wine boxes, tea boxes, wine boxes, gift boxes.

Printing and publishing industry

• Books and magazines: book and magazine covers, famous book covers, picture albums.

• Advertising: posters, calendars, decorative paintings.

Leather products industry

• Leather goods: such as leather bags, leather shoes, belts, suitcases, leather crafts.

Plastic and rubber industry

• Plastic products: plastic toys, stationery, electrical housing.

Wood processing industry

• Furniture: chairs, stools, tables, sofas, decorative strips, screens

• Wooden crafts: wood carvings, gift boxes, red wine boxes, health care boxes.

Electronic and electrical industry

• Electrical panels: refrigerators, air conditioners, televisions, washing machines, water dispensers, fans and other electrical panels, handles, and decorative lines.

• Electronic products: decorative parts for mobile phones, cameras, camcorders, computers, speakers and other electronic products.

Data sheet

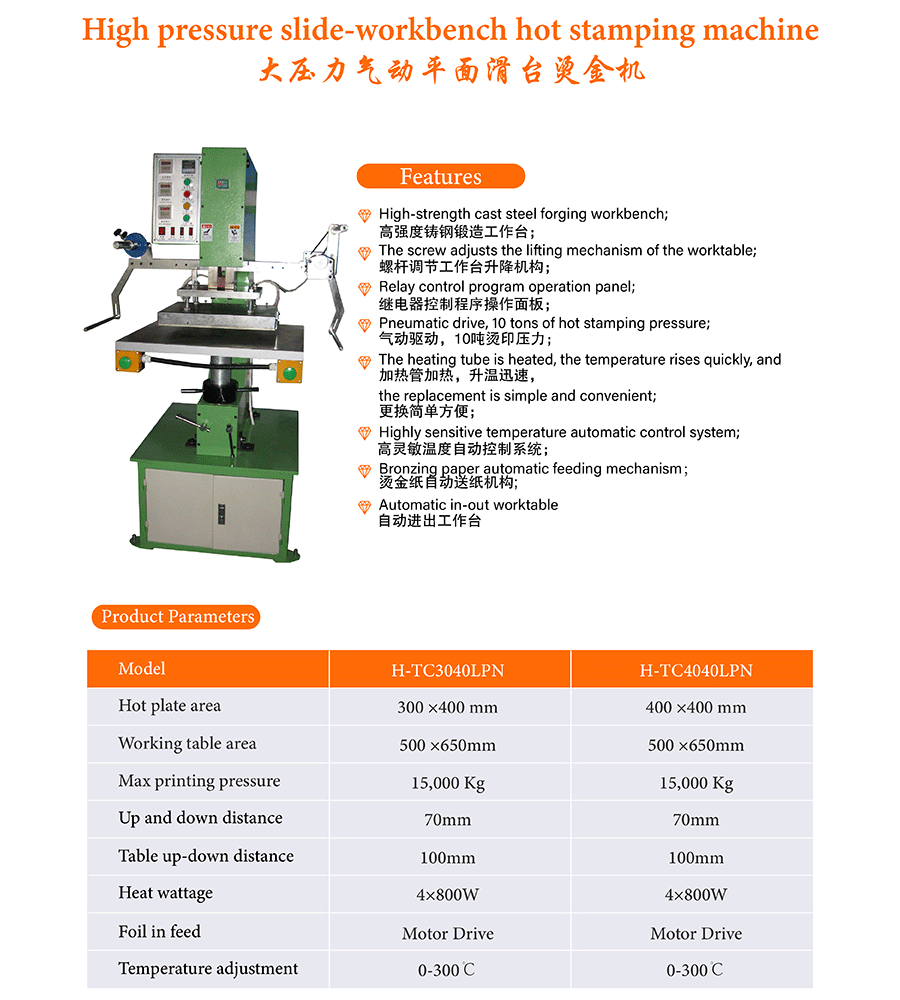

Pneumatic hot stamping Machine with movement table //Parameter
H-TC3040LPN Hot plate area:300 ×400 mm , Working table area:500 ×650mm Max printing pressure:15,000 Kg Up and down distance:70mm Table up-down distance: 100mm Heat wattage: 4×800W Foil in feed: Motor Drive Temperature adjustment:0-300oC .		H-TC4040LPN Hot plate area:400 × 400 mm Working table area:500 ×650mm Max printing pressure:15,000 Kg Up and down distance:70mm Table up-down distance: 100mm; Heat wattage: 4×800W Foil in feed: Motor Drive Temperature adjustment:0-300oC .

Works supply	110V-220VPower supply; 5-7Bar compress air
Package list	Package size: 106010301800mm Gross weight: 650kg; CBM: 1.96524
H.S.Code	8443198000
Certificate	CE

Catalogue

308

Maintenance and care:

Cleaning

Regularly clean the machine heating plate, hot stamping mold, hot stamping foil residue, paper scraps, etc. on the workbench.

Mechanical parts maintenance

The sliding joint surface of the workbench, the lifting screw, the chain of the hot stamping foil winding device, the sprocket, and the sliding joint surface of the hot stamping plate should be regularly added with an appropriate amount of lubricant to reduce friction and wear.

Heating system maintenance

• Thermocouple inspection: Thermocouples are key components for controlling the hot stamping temperature. Regularly check whether the thermocouple sensor is working properly to ensure that the displayed temperature matches the actual temperature.

• Heating plate maintenance: The surface of the heating plate should be kept flat and clean, avoid hitting the heating plate with heavy objects, and regularly clean the dirt on the heating plate.

Electrical system maintenance

• Circuit inspection: Regularly check the electrical circuit of the machine to check whether the wires are damaged, aged, loose joints, etc., to prevent electrical faults such as short circuits and leakage.

• Electrical component maintenance: Regular maintenance of electrical components such as contactors, relays, thermostats, winding motors, limit switches, etc.

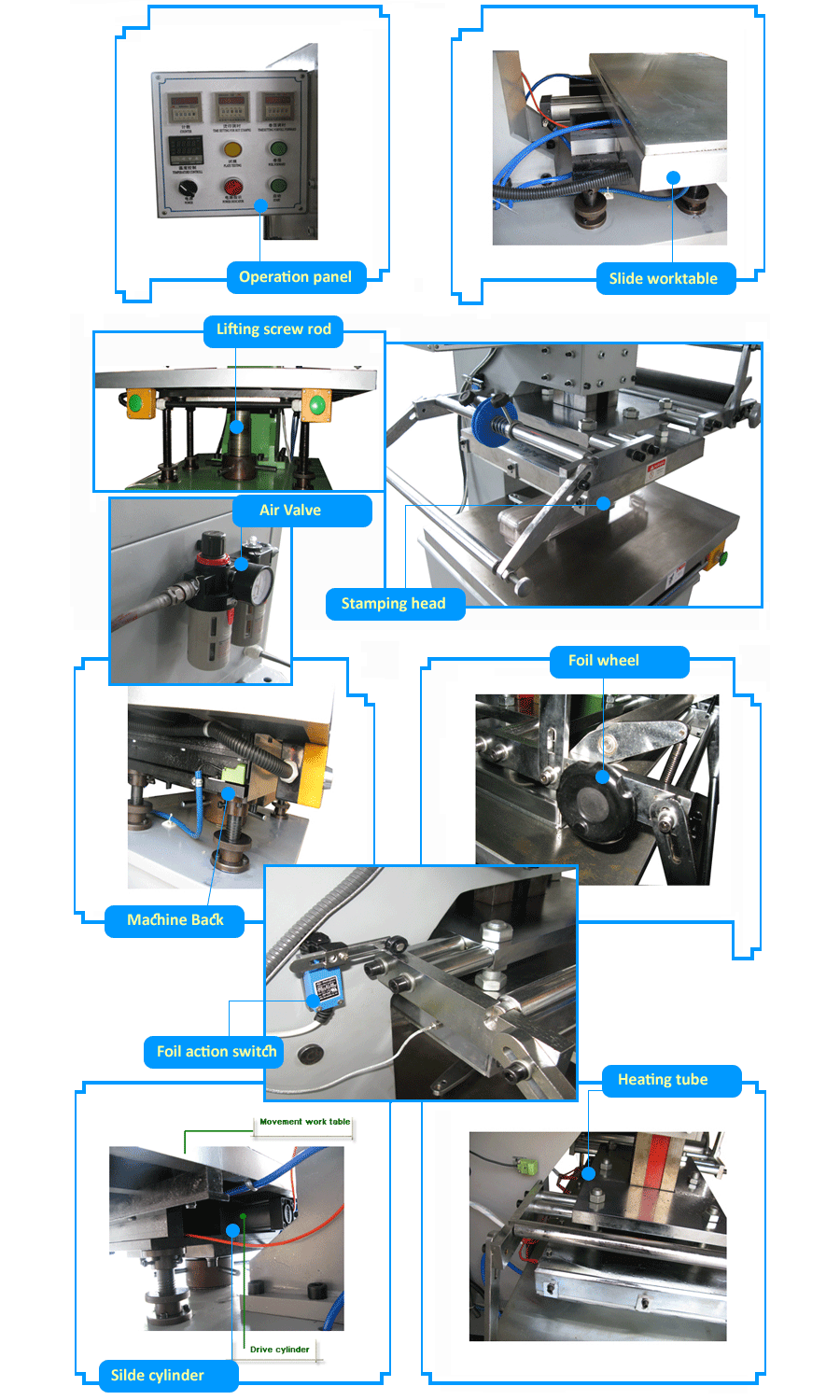

Detail -advantage

Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
