Crate-cover hydraulic hot stamping machine

Crate-cover hydraulic hot stamping machine

4 week ago

7 0

KC Printing Machine (Group) Limited

 9 year year

Product details

Hydraulic embossing stamping machine for package bag //

Usage and characters

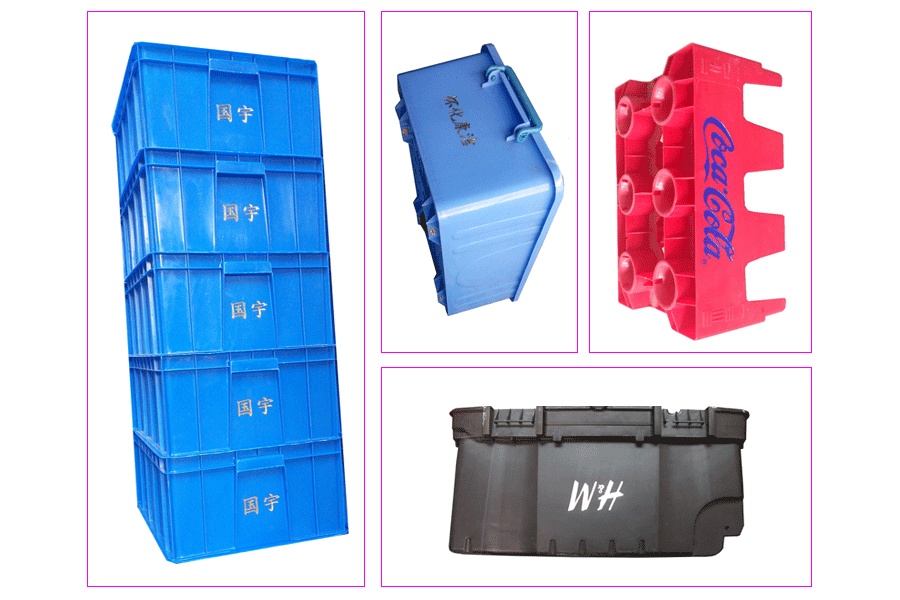

Hydraulic hot stamping machines and pneumatic hot stamping machines are widely used in various types of plastic turnover boxes. The turnover boxes are made of various hard polyolefin materials. In the hot stamping process, a large pressure is usually required to achieve perfect adhesion of the hot stamping foil. The hydraulic hot stamping machine has a more obvious advantage. The hydraulic hot stamping machine uses hydraulic oil as a medium for pressure transmission, and transmits the pressure of the hot stamping head to the surface of the turnover box placed on the workbench.

The turnover box itself has another feature, that is, it is a container-type product. Either a fixture is made to support it, or a suspended workbench is installed, and the turnover box can be fastened to the workbench. The pressure of the hot stamping machine is much greater than that of the pad printing machine and the screen printing machine, and there are high requirements for the manufacturing strength of the machine. 128

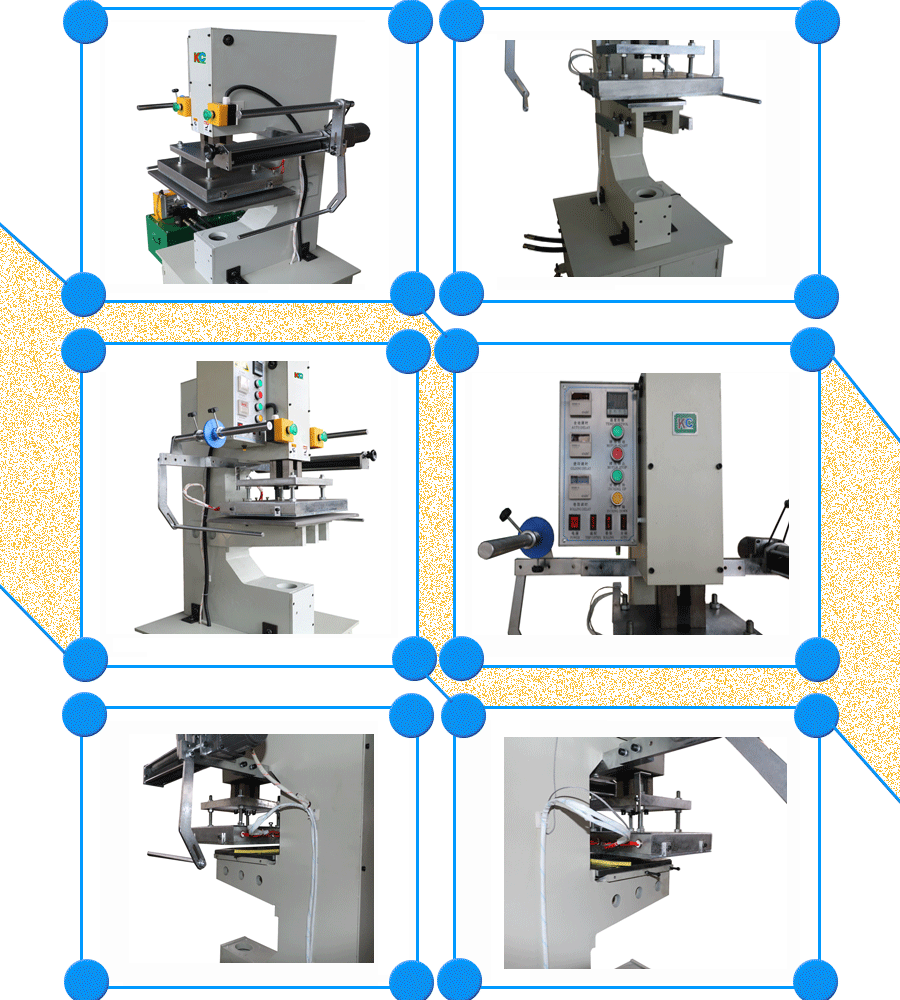

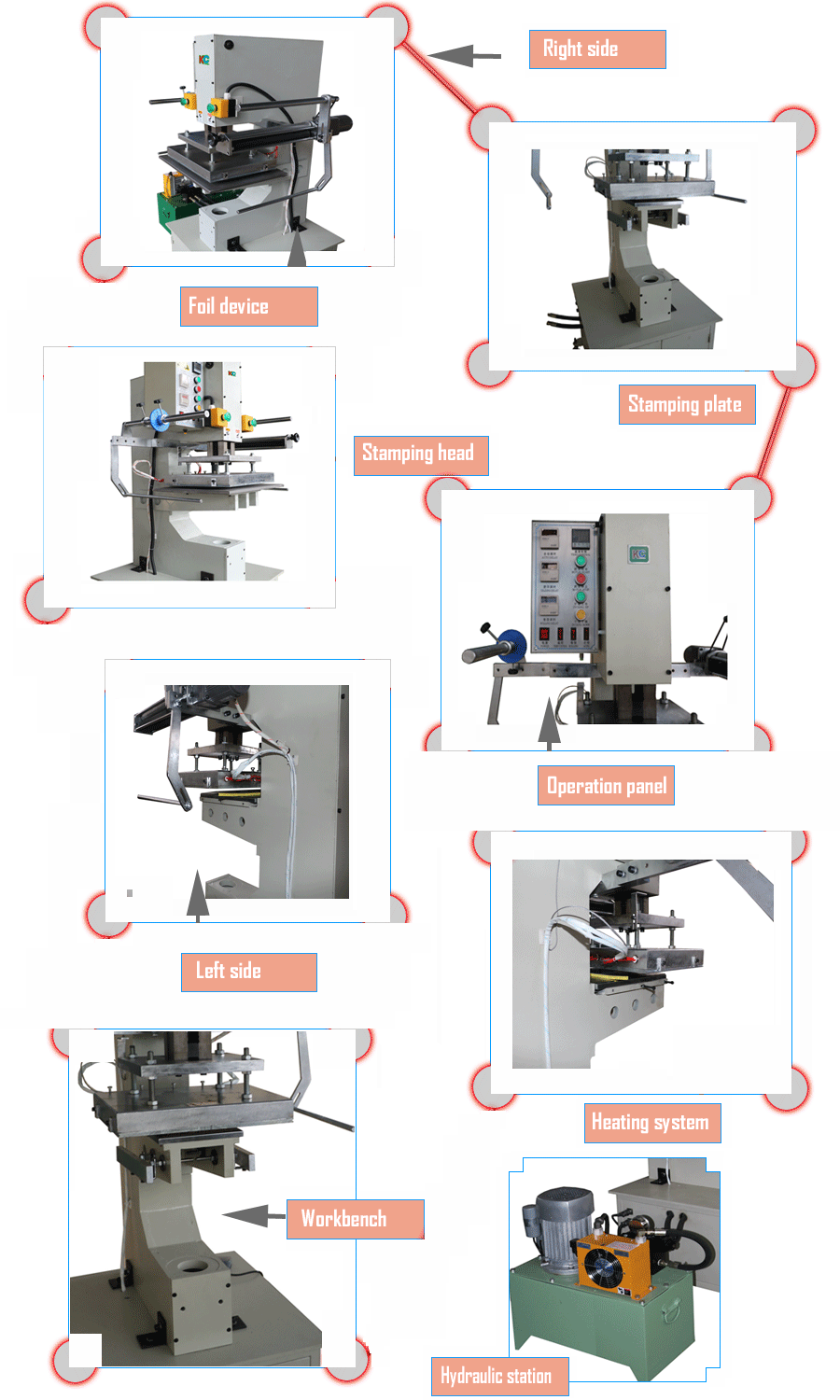

Details

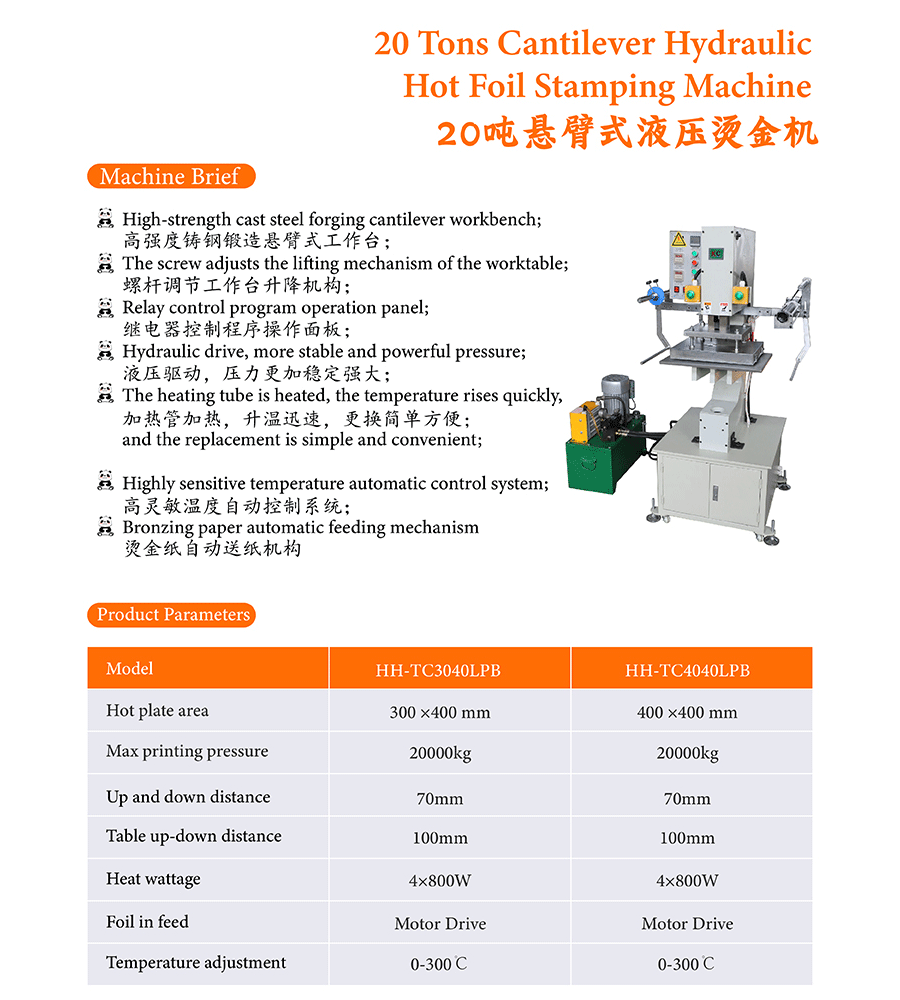

Hydraulic embossing stamping Machine //Parameter

HH-TC3040LPB

Hot plate area:300 ×400 mm
Working table area:480 ×600mm
Max printing pressure:20,000 Kg
Up and down distance:100mm
Heat wattage: 6×500W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

HH-TC4040LP

Hot plate area:400 × 400 mm
Working table area:480 ×600mm
Max printing pressure:20,000 Kg
Up and down distance:100mm
Heat wattage: 6×500W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

Hydraulic embossing stamping machine //Advantage

Bench made ofhigh strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
