Hydraulic embossing stamping machine //

Usage and characters

Hydraulic hot stamping machines and oil-pressure hot stamping machines use the hydraulic system to generate pressure to achieve the hot stamping function. The hydraulic oil is pumped out from the oil tank through the hydraulic pump, and then transported to the hydraulic cylinder after pressurization to push the piston to move, so that the hot stamping plate connected to the piston generates pressure. Under a certain temperature and pressure, the electrochemical aluminum foil is hot stamped onto the surface of the substrate. • High and stable pressure: It can provide a large hot stamping pressure, generally ranging from a few tons to dozens of tons, and the pressure output is uniform and stable, which can ensure that the hot stamping pattern is clear and firm. • High precision: With high-precision temperature control and mechanical positioning system, the positioning accuracy can reach millimeter level or even higher, which can achieve hot stamping of fine patterns. • Strong adaptability: It can adapt to the hot stamping of various materials such as paper, plastic, leather, metal, etc., and can also meet the hot stamping needs of substrates of different thicknesses and shapes. It is used in the packaging and printing industry, such as hot stamping of cigarette boxes, wine boxes, cosmetic boxes, etc.; in label printing, it is used for hot stamping of various product labels; it can also be used for hot stamping of printed materials such as greeting cards, calendars, and book covers to enhance the beauty and added value of the products.

227

Technial data

- - Gilding - paper, leather, wood, plastic,
  - Baked - wood products, baked painting, gift box packaging;
  - Embossing - paper, leather, cloth.
  - Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  - Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  - Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  - Hydraulic drive, pressure more large.

- - Paper Gilding, Leather Impression, Wood ware Baking
  - Paper Concave-convex embossing, Cloth hot stamping,
  - Plastics Bronzing
  - Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  - Woodiness objects baking-burns and Impress;
  - Leather bronzing and Molding;
  - Paper products concavo indentation.
  - Graduated disc of clock bronzing.
  - Die-cutting.

Hydraulic embossing stamping Machine //Parameter

HH-TC631

- - Hot plate area:300 ×400 mm
  - Working table area:480 ×600mm
  - Max printing pressure:20,000 Kg
  - Up and down distance:100mm
  - Heat wattage: 6×500W
  - Foil in feed: Motor Drive
  - Temperature adjustment:0-300oC .

HH-TC632

- - Hot plate area:400 × 400 mm
  - Working table area:480 ×600mm
  - Max printing pressure:20,000 Kg
  - Up and down distance:100mm
  - Heat wattage: 6×500W
  - Foil in feed: Motor Drive
  - Temperature adjustment:0-300oC

Hydraulic embossing stamping machine //Advantage

Bench made ofhigh strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.

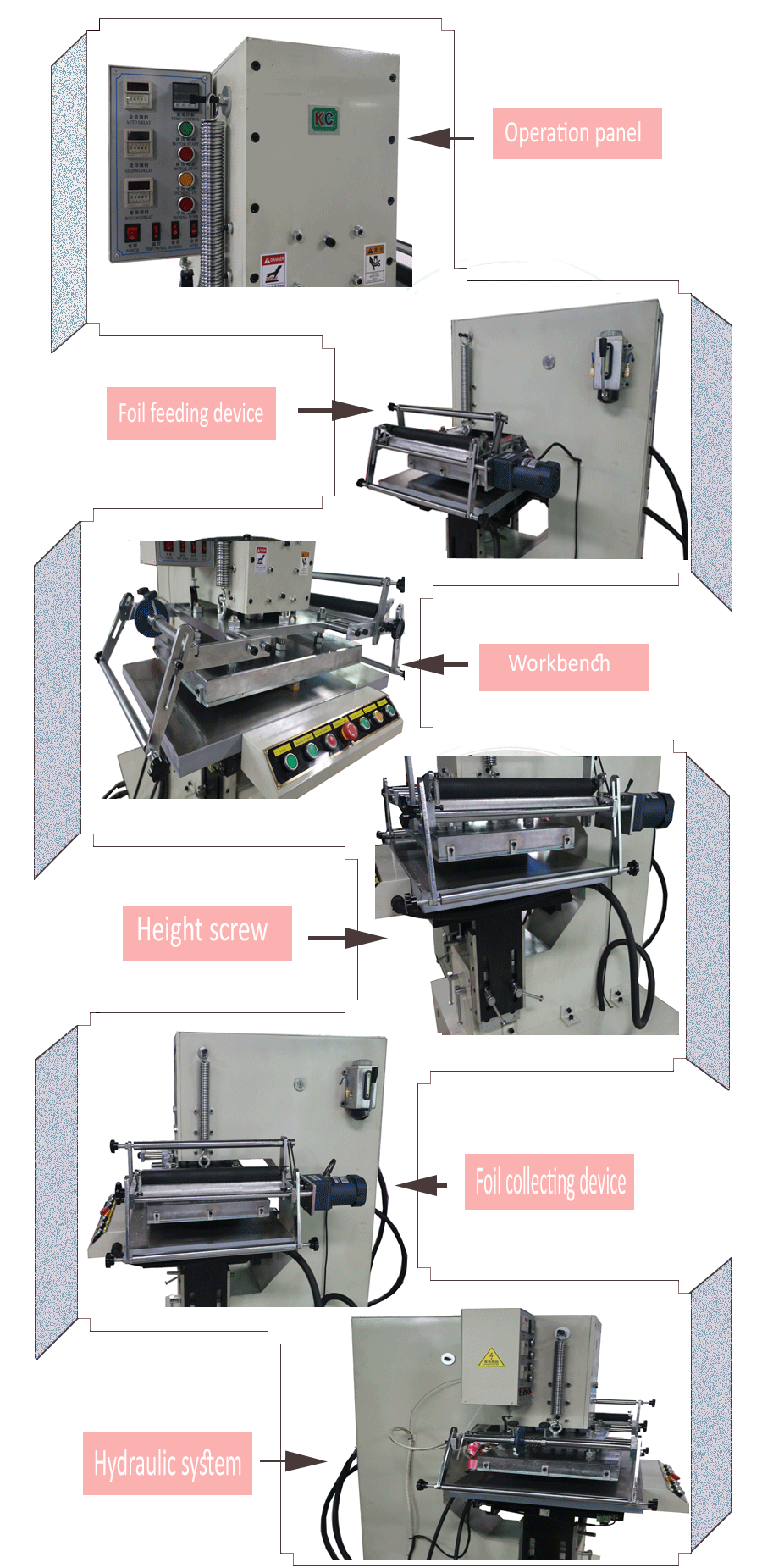

Machine details

The hydraulic hot stamping machine is mainly composed of the following parts:

Mechanical structure

• Body: usually welded with high-strength cast iron or steel plate, it is the supporting foundation of the whole equipment, and it is required to have sufficient strength and stability.

Workbench: It is a platform for placing the workpiece to be hot stamped, with a flat and smooth surface. Some workbenches are also equipped with positioning devices to facilitate accurate placement of workpieces.

• Stamping mechanism: It includes an upper pressing plate and a lower pressing plate. When hot stamping, the upper pressing plate presses down and cooperates with the lower pressing plate to press the hot stamping paper and the workpiece tightly to achieve hot stamping operation.

Hydraulic system

• Hydraulic pump station: It is the power source of the hydraulic system. The motor drives the oil pump to extract the hydraulic oil in the oil tank, and then delivers it to the hydraulic pipeline after pressurization to provide power for actions such as stamping.

• Hydraulic cylinder: It is the actuator for realizing the stamping action. After the hydraulic oil enters the hydraulic cylinder, it pushes the piston to drive the upper pressing plate to move up and down, providing stable pressure.

• Hydraulic control valve: It is used to control the pressure, flow and oil flow direction of the hydraulic system to ensure that the hydraulic system works stably and accurately.

Heating system part

• Heating plate: installed in the upper or lower platen, generally using electric heating tube or heating wire as the heating element, and transferring heat evenly to the platen surface through the heat-conducting medium.

• Temperature control system: composed of temperature sensor, temperature controller, etc. The temperature sensor monitors the temperature of the heating plate in real time and feeds the signal back to the temperature controller.

Electrical control system part

• Operation panel: usually installed on the side or front of the machine body, with various operation buttons, indicator lights and display screens.

Hydraulic hot stamping machine may also include auxiliary structures such as paper feeding mechanism and paper collection mechanism to improve the automation and work efficiency of the equipment.
