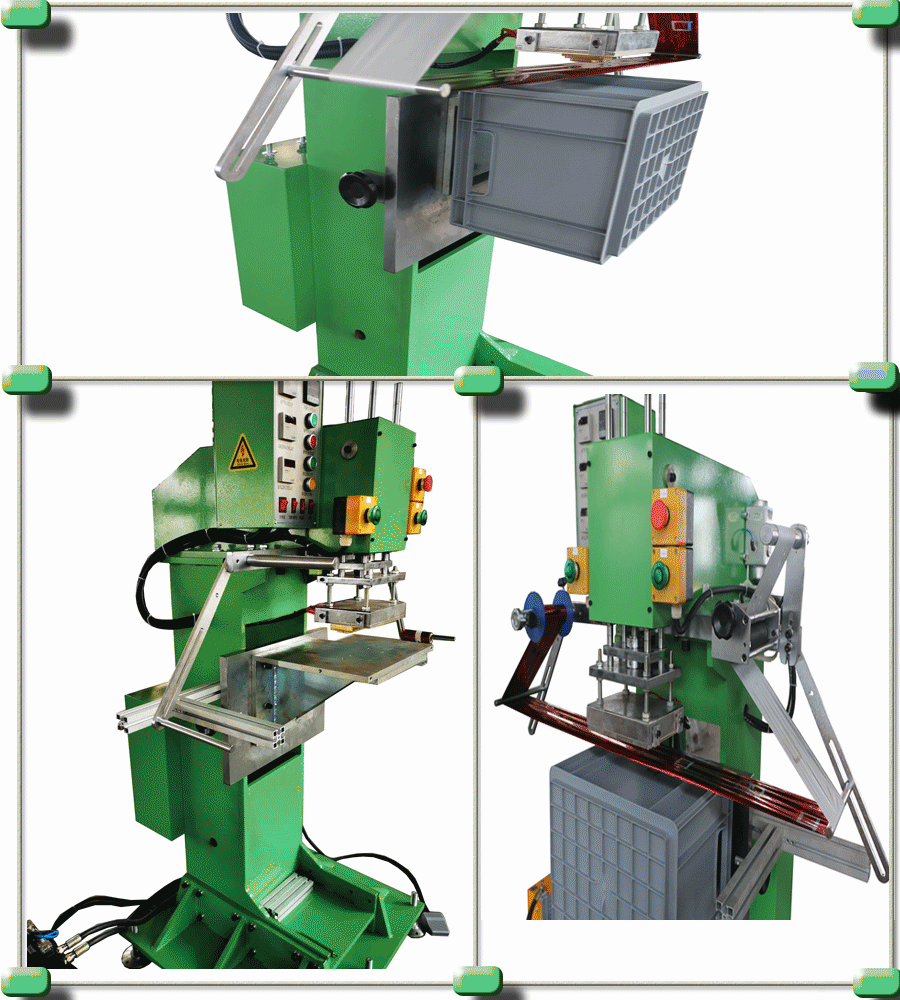

Hydraulic foil stamping machine for crates //Usage and characters

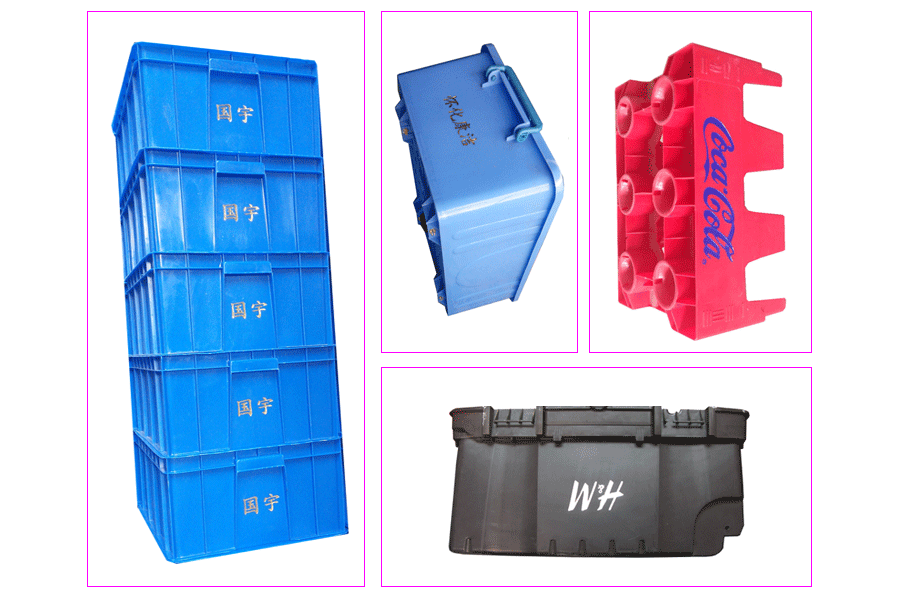

Samples

The hydraulic hot stamping machine for beer baskets is a device used for hot stamping on beer baskets. It uses the hydraulic system to generate pressure, and pushes the pressure plate and other components downward through the hydraulic cylinder to tightly press the hot stamping paper and the beer basket. At the same time, the heating device of the hot stamping machine makes the hot stamping plate reach a certain temperature. Under the combined action of heat and pressure, the hot-melt dyeing resin layer and adhesive of the metal foil or pigment foil on the hot stamping paper melt, and the aluminum layer and the electrochemical aluminum base film are peeled off and transferred to the surface of the beer basket. After the pressure is removed, the adhesive cools and solidifies, and the aluminum layer is firmly attached to complete the hot stamping. It is mainly composed of a hydraulic system: including a hydraulic pump, a hydraulic cylinder, a hydraulic valve, a fuel tank, etc., which provides power for the equipment and generates stable pressure; a heating system: composed of a heating tube, a temperature controller, etc., which can accurately control the temperature of the hot stamping plate. Hot stamping mechanism: mainly includes a hot stamping plate, a pressure plate, etc. The hot stamping plate is engraved with a pattern or text to be hot stamped, and the pressure plate drives the hot stamping plate to contact the beer basket under the action of hydraulic pressure. Foil feeding mechanism: responsible for conveying hot stamping paper to ensure that the hot stamping paper is accurately delivered to the hot stamping position. Control system: It is composed of buttons, touch screens, relays, etc., and can set and control parameters such as temperature, pressure, and hot stamping time. It is mainly used in beer production companies, beer packaging companies, etc. to perform hot stamping on plastic beer baskets, and to print brand logos, patterns, texts, etc., to enhance the aesthetics and brand recognition of beer baskets.

128

Description

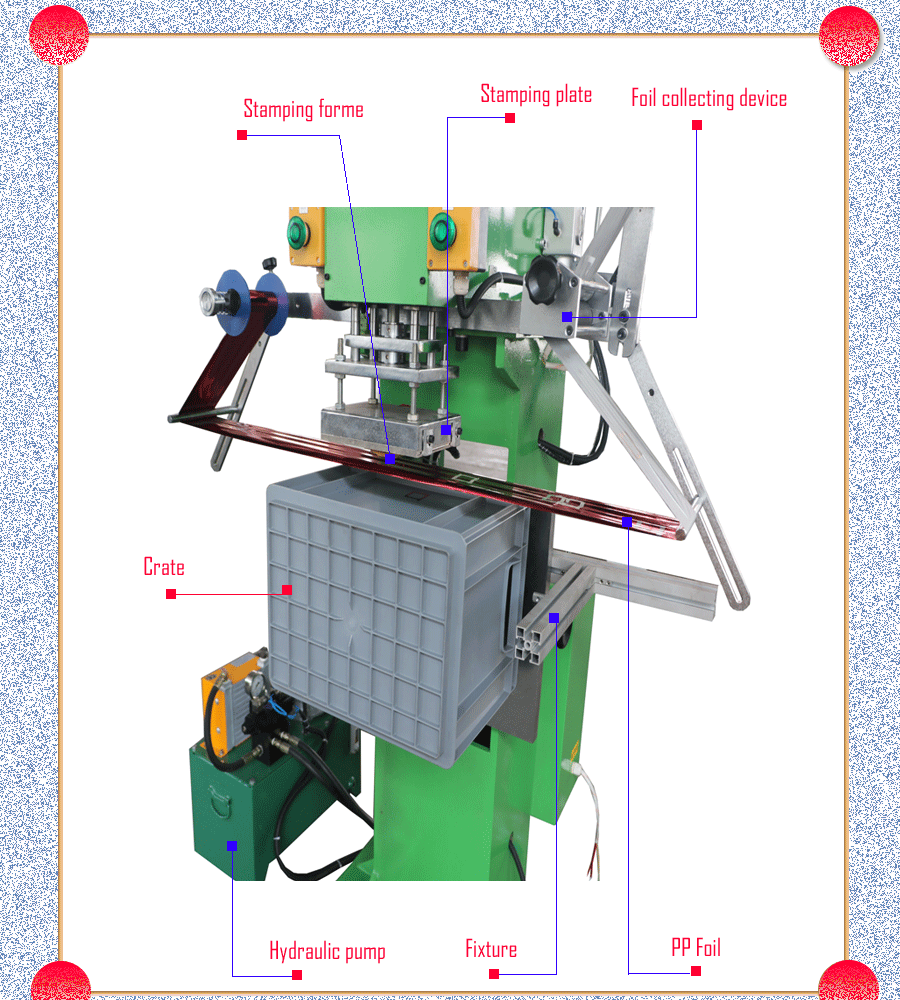

Hydraulic embossing stamping Machine //Structure
Working table	High strength Steel plate , size: 480*600mm.
Stamping Head drive	Hydraulic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Up-down of working table
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting	Motor drive, Automatically collecting
Max Pressure	20T
Hydraulic embossing stamping machine //Usage and characters
Guide	Gilding - paper, leather, wood, plastic, Baked - wood products, baked painting, gift box packaging; Embossing - paper, leather, cloth. Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products; Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality. Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials. Hydraulic drive, pressure more large.
Application fields	Paper Gilding, Leather Impression, Wood ware Baking Paper Concave-convex embossing， Cloth hot stamping, Plastics Bronzing Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing. Woodiness objects baking-burns and Impress; Leather bronzing and Molding; Paper products concavo indentation. Graduated disc of clock bronzing. Die-cutting.
Hydraulic embossing stamping Machine //Parameter
Technical parameters	HH-TC1520LPB	HH-TC2129LPB
	Hot plate area:150 ×200 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC	Hot plate area:210 × 290 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC 。
Works supply	110V-220VPower supply； 46# Hydraulic oil
Package list	Package size: 1.31.12.0m Gross weight: 800kg; CBM: 3.23	Package size:1.31.12.0m Gross weight: 800kg; CBM: 3.23
H.S.Code	8443198000
Certificate	CE

Test factors

Details description

Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
