PM-410FL Image setter

PM-410FL Image setter

2 year ago

58 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Usage

Most pad printing and screen printing processes require high-quality printing plates to reproduce fine graphics, text, logos, and patterns accurately. In specialty printing applications such as pad printing, screen printing, hot foil stamping, flexographic printing, offset printing, and gravure printing, the quality of the plate-making process directly affects the final printing performance and product appearance. With the development of digital prepress technology, some high-end printing industries have gradually adopted Computer-to-Plate (CTP) systems, which directly transfer digital artwork from a computer to printing plates. However, for many pad printing and screen printing applications, the traditional film output and plate-making process remains a practical and cost-effective solution due to its flexibility, lower investment cost, and suitability for small and medium production runs. The Film Output Machine, also known as a Laser Image Setter Machine or Laser Phototypesetter, is an essential prepress device designed for producing high-resolution printing films used in pad printing plate making and screen printing plate making. The machine uses advanced laser exposure technology to accurately output digital artwork onto photosensitive film. The transparent areas of the film allow ultraviolet light to pass through, while the opaque areas block UV exposure. During the plate-making process, the exposed photosensitive layer is hardened, while the unexposed areas are removed during developing and washing, creating a precise image for printing plate production. For many pad printing and screen printing manufacturers, investing in expensive industrial-grade prepress equipment can increase production costs, especially for small and medium-sized printing businesses. The KC series high cost-effective laser image setter provides an affordable and reliable solution for professional screen printing film output and pad printing film output. With stable laser exposure performance, suitable output resolution, simple operation, and low maintenance requirements, it helps users produce high-quality printing films while reducing equipment investment.

The KC Laser Phototypesetter is widely used by:

Pad printing manufacturers for steel plate and cliché film production;
Screen printing companies for screen film output and stencil plate preparation;
Hot stamping manufacturers for hot stamping plate-making applications;
Printing service providers offering film output and plate-making services.

With its excellent cost-performance ratio, reliable operation, and compatibility with various specialty printing applications, the KC Laser Image Setter Machine is an ideal choice for businesses seeking a professional and economical film output solution for pad printing and screen printing industries.

Professional Laser Phototypesetter for Screen Printing Film Production

Technical sheets

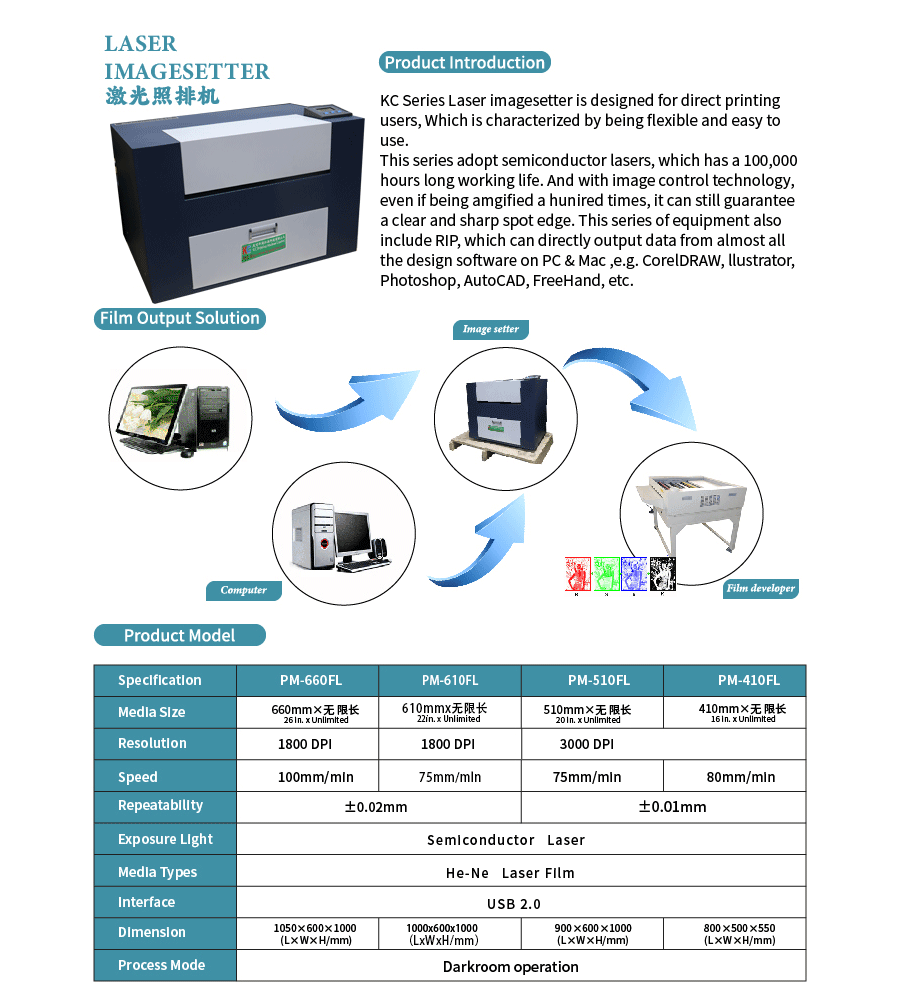

Laser film imagine setter //Parameter
PM-410FL	PM-510FL
Max exports width: 410mm; Output speed: 85mm/min; Resolution ratio: 3000DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%	Max exports width: 510mm; Output speed: 85mm/min; Resolution ratio: 3000DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
Works supply	110V-220VPower supply; 5-10M2 dark room; Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA / X V GA/ CD R OM Developing tray, Fixation tray.

Solution

High Resolution Laser Image Setter Machine with Roll Film Feeding System

Catalogue

High Cost-Effective Laser Phototypesetter for Printing Film Output

High-performance semiconductor laser light source system provides stable exposure performance, long service life, and reliable film output quality.
Flatbed film output design ensures precise positioning and consistent image reproduction during the imaging process.
Advanced image processing and control technology delivers high-resolution output with accurate dot reproduction for professional plate-making applications.
Integrated film storage box system combines film storage, measurement, cutting, and automatic feeding functions, improving operation efficiency and reducing manual handling.
RIP 3.0 software is included with the machine, supporting both Windows PC and Mac operating systems for flexible workflow integration.
Specially designed for pad printing film output, providing a professional solution for pad printing plate-making applications.
Roll film feeding system supports continuous film output with adjustable length, compatible with both negative film and positive film production requirements.
