Automatic screen printing machine for roll materials

The automatic roll-to-roll single color label screen printing machine is a high-precision printing solution specially designed for labels, flexible films, and web-fed materials. Equipped with an automatic unwinding and rewinding system, automatic tension control device, automatic web guiding system, servo-driven screen printing unit, and IR rotary drying oven, the machine provides a complete continuous production process from material feeding, positioning, printing, drying, and rewinding. The automatic tension control system maintains stable material feeding tension during high-speed operation, preventing film deformation and ensuring consistent printing quality. The automatic web guiding system accurately corrects material deviation to achieve precise registration and reliable printing performance. The servo-driven screen printing unit delivers accurate control of printing speed, stroke, and pressure, ensuring sharp images, uniform ink coverage, and stable production results. The integrated IR rotary drying oven provides efficient infrared drying and curing, enabling fast production while saving installation space. This roll-to-roll label screen printing machine is widely used for printing on self-adhesive labels, PET films, PVC films, electronic labels, packaging labels, and various flexible web materials, making it an ideal choice for high-efficiency and high-quality label manufacturing.

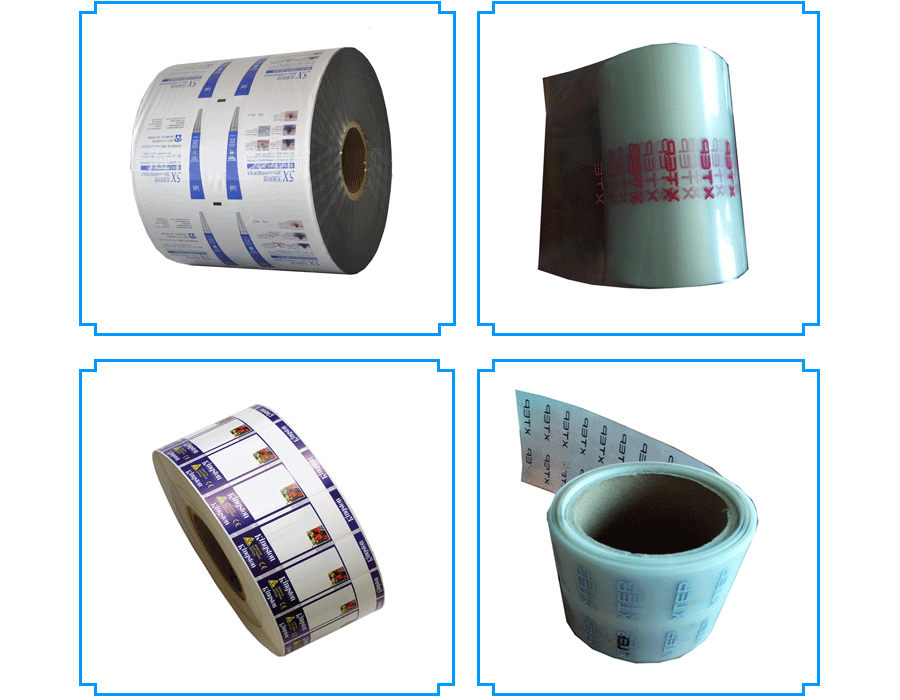

Roll to roll screen printing machine for labels

Technicals data

Automatic screen printing machine for roll materials//Technical Parameter

Item	SZD-R300	SZD-R350
Printing speed	1200-5000 pcs/h	1000-4500 pcs/h
Max materials diameter	500 mm	500 mm
Materials width	300 mm	350 mm
Printing width:	300 mm	350 mm
Max printing length	500 mm	500 mm
Overprint precision	±0.05 mm	±0.05 mm
Mainly motor wattage	220 V 2.5 KW	220 V 2.5 KW
IR heating wattage	380 V 12 KW	380 V 12 KW

Automatic screen printing machine for roll materials//Package Parameter

Mainly machine package size	210 CM95 CM150 CM
IR drying machine package size	210 CM85 CM210 CM
/weight	1300 KG
Installing size	2 M*7 M

Automatic screen printing machine for roll materials//Structure

Feeding device	Plate material, servo motor conveyor belt transmission.
Worktable type	Precision suction worktable
Movement characteristics	The servo traction motor drives the package material to the printing position through the transmission mechanism.
Screen flame up and down control device	High strength guide shaft
Scraper control device	High precision rails
Ink curing	Solvent-based inks, UV inks
Heating wattage	7 KW
Cutting method	Automatic winding

Automatic screen printing machine for roll materials//Character

Vacuum suction printing platform provides accurate label positioning and reliable material feeding, improving registration precision during high-speed operation.
High-speed printing capability with a maximum speed of up to 15 meters per minute, significantly improving production efficiency.
Multi-color printing capability supports printing up to eight different colors or patterns to meet various label and flexible film printing requirements.
Double doctor blade ink system ensures cleaner ink distribution, more uniform ink coverage, and stable printing performance.
Fully electric drive system eliminates the need for compressed air, reducing energy consumption and simplifying machine maintenance.
Automatic feeding and rewinding system with adjustable tension control ensures smooth material transport and prevents film deformation.
Stable and smooth operation with adjustable printing stroke and printing speed to accommodate different production requirements.
Taiwan frequency inverter control system provides constant torque operation, ensuring consistent printing speed and high-quality output.
Integrated infrared (IR) drying system synchronizes printing and drying processes for faster curing and improved production efficiency.
