Product details

Using imported piezoelectric ceramic materials, 620 7μm-level micropore arrays are created through precision laser drilling technology, which can produce ultra-fine water mist particles with a diameter of only 0.5-5μm, and the atomization efficiency is increased by 40% compared with ordinary products. The unique 1571#28 double red material base ensures stability under high-frequency vibration, which is an ideal choice for high-end atomization equipment.

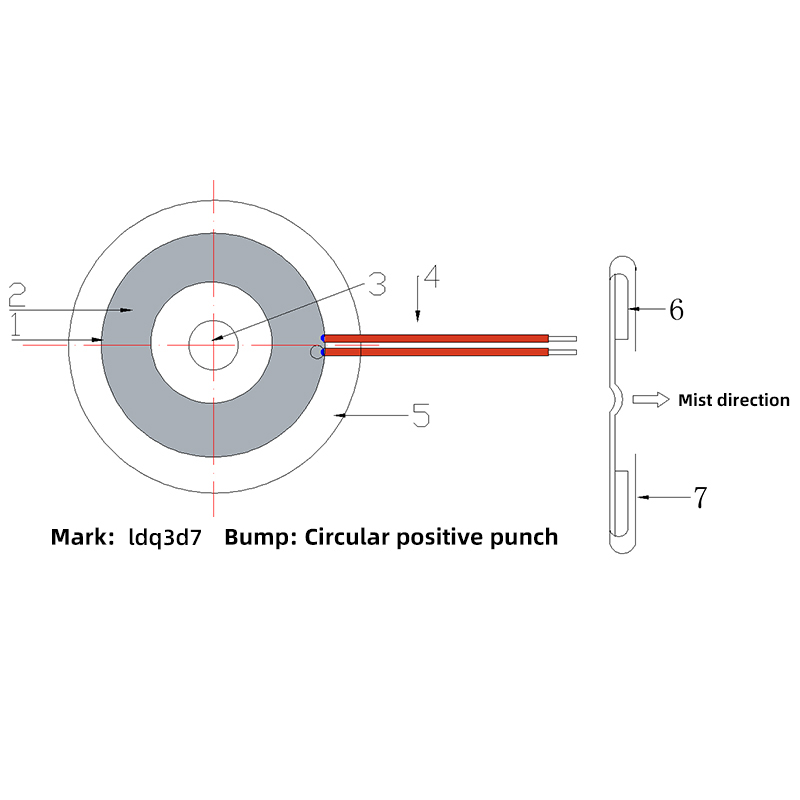

Water Replenishing Instrument Atomizer Plate Product Specifications

Metal sheet: Φ16±0.1mm
Piezoelectric sheet: Φ16±0.2mm
Hole area: Φ3±0.2mm
Hole diameter: 7±1μm
Number of holes: 620 holes
1571#28 double red: L=60±5mm
Plastic ring: 20±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 3.0±0.3mm

Atomizer Plate Features

Precision micropore design: 620 precision micropores ensure uniform and fine atomization, and water molecules are more easily absorbed by the skin
High-precision piezoelectric ceramics: Using Φ16±0.2mm piezoelectric sheets, the conversion efficiency is as high as over 85%
Durable metal substrate: Φ16±0.1mm metal sheets provide stable support and extend service life

Ceramic Atomizer Plate Industry Applications

Beauty and skin care: facial hydration device, nano sprayer, professional care equipment for beauty salons
Health care: medical nebulizer, respiratory treatment equipment
Home humidification: mini humidifier, car humidification equipment
Industrial applications: precision instrument cooling atomization, laboratory humidification system
Agriculture: small plant cultivation atomization system

Nanometer Spray Water Replenisher Atomizer Plate
