Product details

Medical Copper Ring Atomized Plate is a high-performance atomization core component designed for medical equipment. It adopts a precision copper ring structure to ensure stable atomization performance and excellent thermal conductivity. This product is widely used in various medical nebulizers, respiratory therapy equipment and other medical fields.

Medical Atomizer Plate：

I. Core Application Scenarios and Solutions to User Pain Points

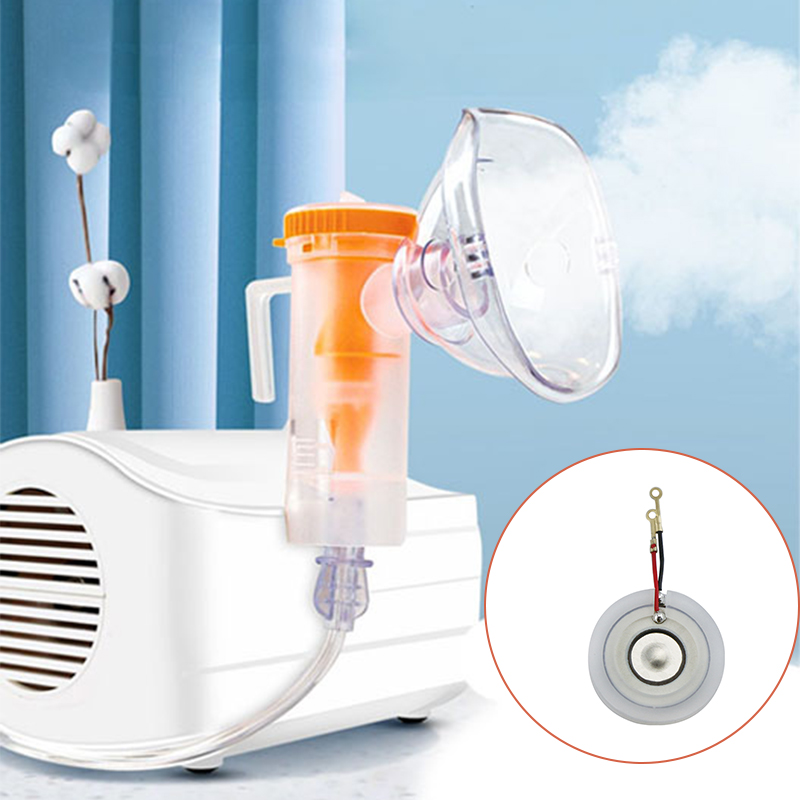

Scenario 1: Home Treatment for Chronic Respiratory Diseases

User Profile: Patients with asthma and COPD (Chronic Obstructive Pulmonary Disease) who require long-term nebulizer inhalation therapy.

Pain Points: Traditional nebulizers suffer from uneven particle size, high drug residue, and excessive noise affecting the user experience.

Our Solution: Utilizing precision piezoelectric ceramic technology, the median diameter of nebulized particles (MMAD) is consistently maintained at 1-5μm (directly reaching the alveoli), improving drug utilization by 30%.

Low residue design (residual amount <0.1mL) ensures complete drug atomization, reducing waste.

Ultra-quiet operation (<35dB), suitable for nighttime use or use by children.

Scenario 2: High-Frequency Use in Medical Institutions

User Profile: Hospital and clinic purchasing departments requiring durable and easily sterilized nebulizer components.

Pain Points: Decreased nebulization efficiency after frequent use, risk of cross-infection, and high maintenance costs.

Our solution: Medical-grade stainless steel with a nano-coating, supports high-temperature and high-pressure sterilization, and has a lifespan of up to 3000 hours.

Modular design, compatible with mainstream nebulizer brands (such as Omron, Philips, PARI), allowing for easy replacement.

Certified by ISO 13485 Medical Device Quality Management System and compliant with FDA 510(k) standards.

II. Why Choose Our Nebulizer Pads?

Precise Nebulization, Enhanced Therapeutic Effect: Uniform and fine atomized particles ensure deep drug deposition, especially suitable for the sensitive respiratory tracts of children and elderly patients.

Strict Quality Control, Safe and Reliable: Each batch of products undergoes airtightness testing, fatigue testing, and bacterial filtration efficiency (BFE) testing to ensure sterility and safety.

Energy-Saving and Efficient, Reduced Costs: Power consumption is less than 2.5W, supporting battery power, suitable for portable nebulizers; long-life design reduces long-term procurement costs for medical institutions.

Rapid Response to Customization Needs: Supports customization of size, voltage, and interface, providing OEM/ODM services, and has provided solutions for 20+ medical device brands worldwide.

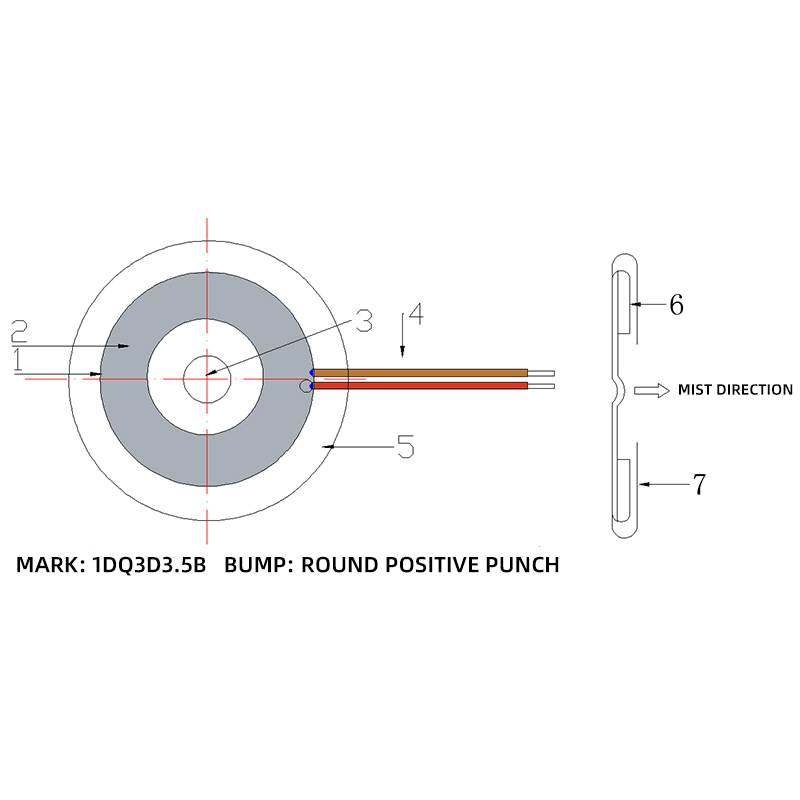

Ceramic Atomizer Plate Product Specifications

Metal sheet: Φ16±0.1mm
Piezoelectric sheet: Φ16±0.2mm
Hole area: Φ3±0.2mm
Hole diameter: 3.5±1μm
Number of holes: 1200 holes
Enameled wire: L=15±3mm, wire diameter 0.3mm
Plastic ring: 20±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 3.0±0.3mm

Features

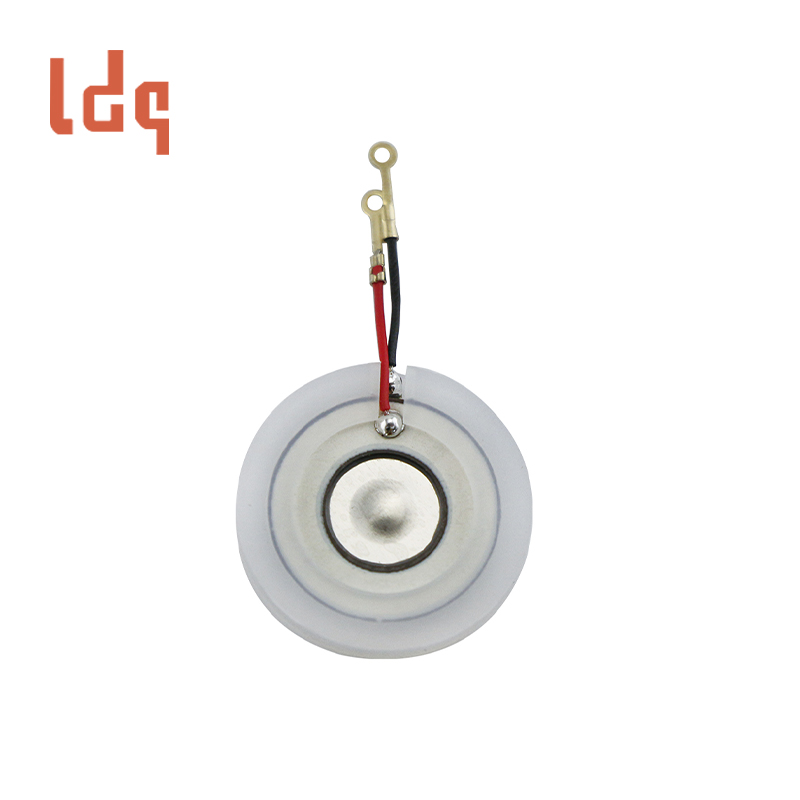

16mm Medical Copper Atomized Plate adopts high-purity copper ring design
Excellent thermal conductivity to ensure stable atomization
Corrosion-resistant surface treatment process
1200 3.5μm precision micropore arrays
Atomization uniformity > 98%
Suitable for atomization of various liquid medicines

Medical Atomized Plate Industry Applications

Antibiotic aerosol delivery
Insulin inhalation device
Vaccine aerosol inoculation
Oral treatment spray
Nasal delivery system
Wound treatment aerosol
