From delicate microporous atomization to industrial high-airflow synergistic cooling, we continually push the boundaries of piezoelectric ceramic applications. The Liandaqi Misting Fan Atomizer Plate is not just a component; it’s the powerful foundation for building your efficient, reliable, and comfortable cooling system.

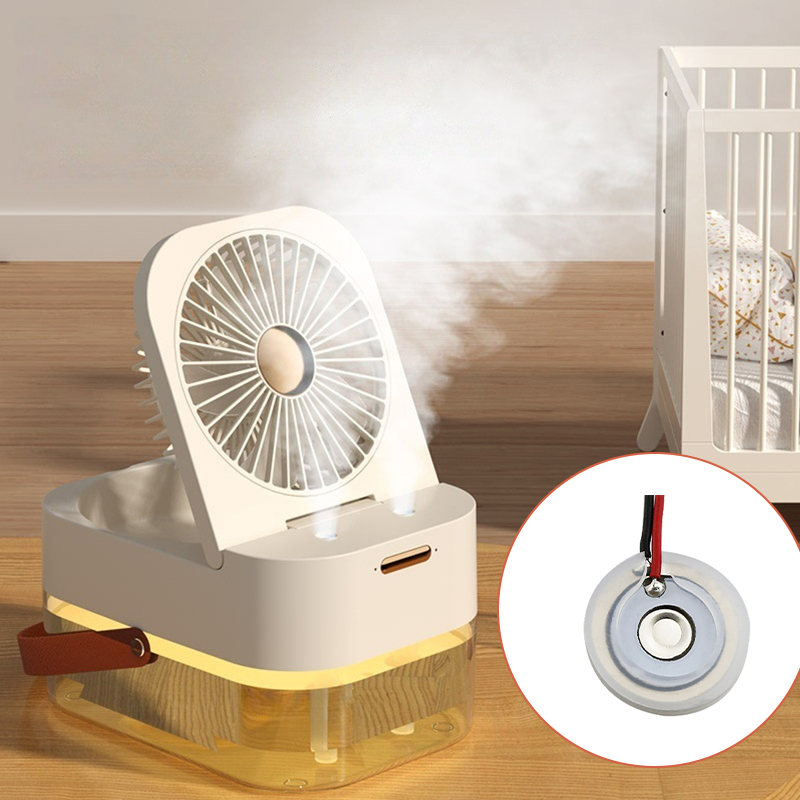

Traditional misting fans often suffer from large droplets, user wetting, uneven cooling, and nozzle clogging. Liandaqi’s dedicated atomizer plate for misting fans is the “atomization heart” engineered to sync with high-volume airflow. Through high-voltage piezoelectric drive and precision fluid dynamics design, it generates ultra-fine dry mist of 10-30 microns. These micron-sized droplets are fully entrained by the fan’s airflow and evaporate instantly, creating a uniform cooling zone across the airflow’s reach. This enables efficient, non-wetting, large-area perceived cooling, making it the preferred technical solution for combating heat stress in commercial and industrial settings. For example: Offer Atomizer Plate For Spray Small Fan
The compatibility and adaptability of atomizer plates are crucial, determining whether a product can achieve optimal performance in different devices. For small mist fans, the plate must be perfectly compatible with a variety of fan types. In terms of size, it should accommodate fans of varying sizes, from compact, portable mini fans, which can range from a few centimeters to over ten centimeters, to larger desktop fans, typically around twenty centimeters. The plate must be securely mounted and not interfere with the fan's normal operation. Power varies greatly between fans, with small fans typically operating at a few watts, while larger fans can reach over ten watts or even higher. The plate must be adaptable and operate stably in fan systems of varying power, ensuring that the atomization effect is unaffected by variations in fan power.
This compatibility is crucial not only for small mist fans but also for devices such as aromatherapy diffusers, humidifiers, and beauty devices. For example, aromatherapy diffusers come in a variety of styles, some utilizing ultrasonic atomization and others using heated evaporation. For aromatherapy diffusers using ultrasonic atomization, the frequency and vibration pattern of the atomizer plate must match the diffuser's design to ensure efficient atomization of the essential oils and release a pleasant aroma. Humidifiers vary in their requirements for mist output and humidity control across different brands and models. Some humidifiers focus on quickly increasing indoor humidity, requiring the atomizer plate to produce a large, uniform volume of mist in a short period of time. Others emphasize precise humidity regulation, requiring the atomizer plate to accurately control the atomization volume based on sensor feedback. Some high-end smart humidifiers, for example, automatically adjust humidity based on indoor conditions. Their atomizer plate works closely with sensors and control systems to achieve highly intelligent humidity control. In the beauty device market, atomizer plates must adapt to different skincare needs. For example, in hydrating beauty devices, the atomizer plate must atomize skincare essence into extremely fine particles for better absorption by the skin. In beauty devices with cleansing functions, the atomized liquid produced by the atomizer plate must work in conjunction with the device's cleaning principles to effectively remove dirt and impurities from the skin's surface.

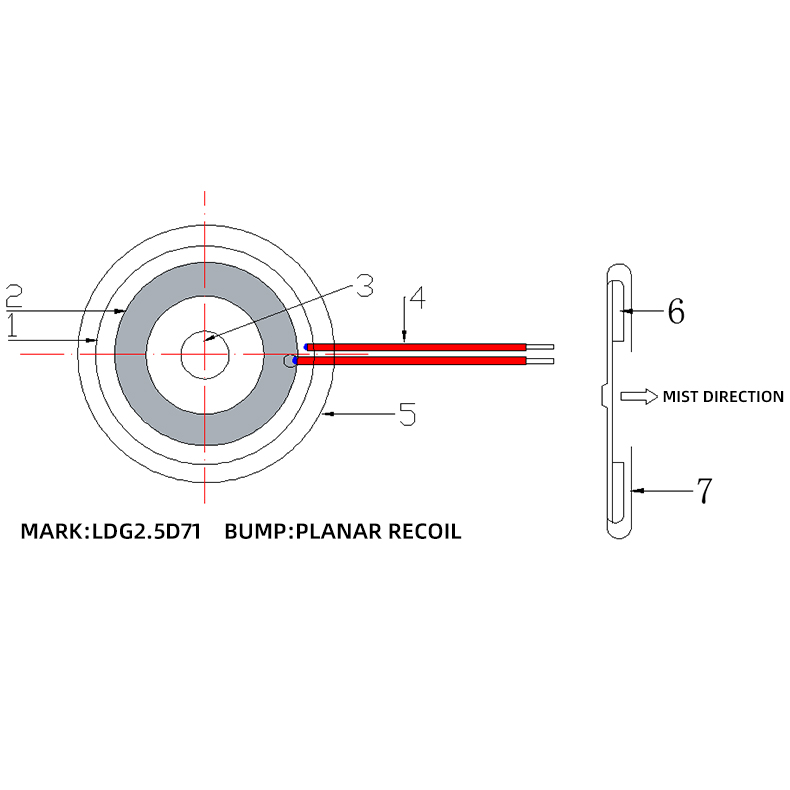

Product Specifications
- Metal sheet: Φ13.8±0.1mm
- Piezoelectric sheet: Φ11.3±0.2mm
- Hole area: Φ2.5±0.2mm
- Hole diameter: 7±1um
- Number of holes: 600 holes precisely arranged
- 1571#28 double red line: L=60±5mm
- Diameter of rubber ring: 15±0.5mm
- Bare chip thickness: 0.65±0.1mm
- Thickness of rubber ring: 2.5±0.3mm
|
|
|
|

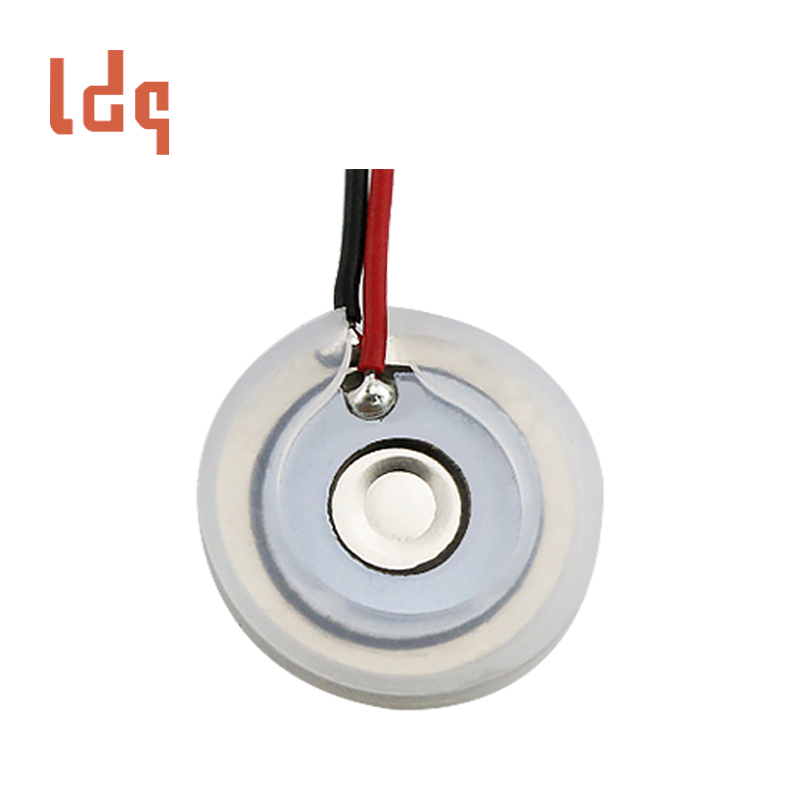

Features
- Precision micropore design: 600 7-micron precision micropores ensure that the Atomizing Sheet For Atomizing Fan produces a uniform and delicate atomization effect
- High-quality piezoelectric material: high-performance piezoelectric ceramic sheets, fast response, high atomization efficiency
- Durable structure: The metal sheet and the rubber ring are precisely matched to ensure the long-term stable operation of the Atomizer Plate For Atomizing Fan
- Strict tolerance control: All dimensions are controlled within the range of ±0.1-0.3mm to ensure product consistency
|

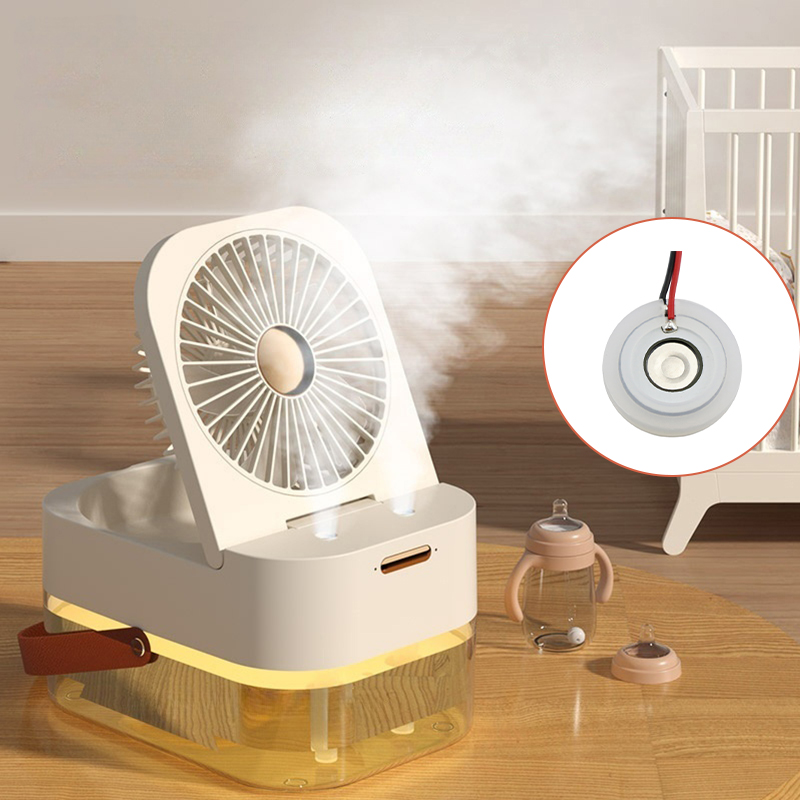

Spray Small Fan Atomizer Plate Industry Applications
- Portable spray fan
- Desktop humidifier
- Car spray device
- Personal care spray equipment
- Industrial humidification system
|
|
Usage Instructions
Use purified or boiled-cooled water (tap water prohibited). Ensure water covers the chip; operate ≤4 hours/session with 30-min breaks. Descale weekly with vinegar soak (10 mins), rinse and air-dry. When storing, empty the tank and seal electrode ports with dust covers.
