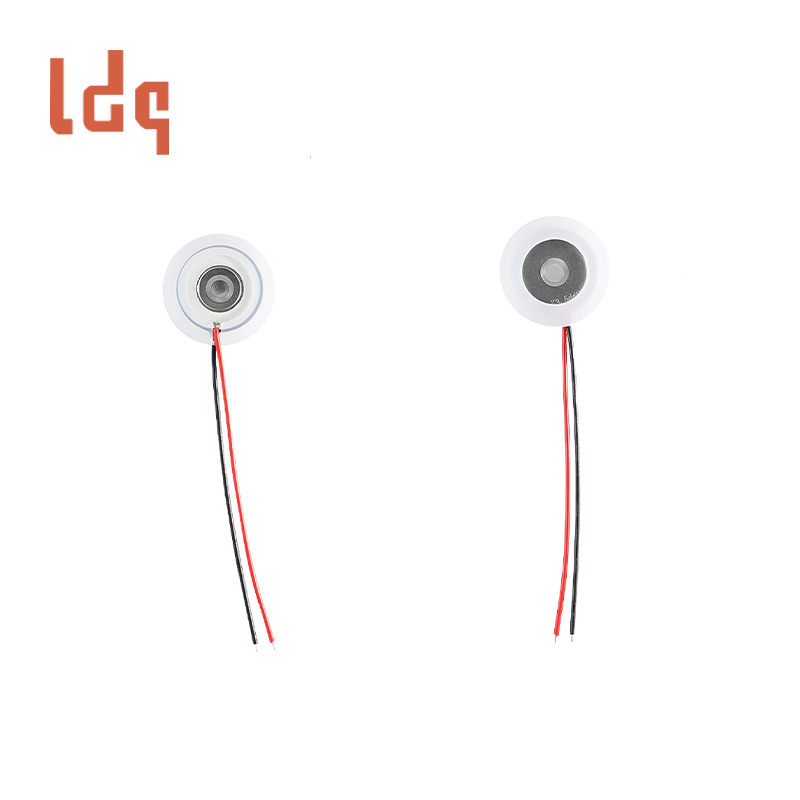

Atomizer Plate For Window Cleaner adopts a composite structure of 316L stainless steel + precision piezoelectric ceramics and has 600 7μm ultra-micropores, which can produce fine and uniform water mist to improve cleaning efficiency. It is suitable for application scenarios such as window cleaning robots, intelligent cleaning equipment, and industrial glass cleaning systems.

The window-cleaning nebulizer chip uses piezoelectric high-frequency vibration to atomize cleaning solution or water into 57 micron mist, forming an even wet film to soften stains. It aids wipers in removing grease and dust from glass surfaces, featuring auto on/off and dry-run protection for vertical/high-altitude operations.

Designed for smart window-cleaning robots, high-rise facade cleaners, and household glass cleaners. Targets stubborn stains on smooth surfaces (e.g., windows, tiles, mirrors), especially effective for skyscraper exteriors and solar panel dust removal.

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1μm
Number of holes: 600 holes
1571#28 double red: L=60±5
Plastic ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Plastic ring thickness: 2.5±0.3mm
Material: 316L stainless steel

Atomizing spray water window cleaning machine Atomizer plate

Atomizer Plate For Window Cleaner Features

Ultra-long life: continuous use time can reach more than 3000 hours
Strong environmental adaptability: storage conditions 5℃-40℃, humidity <65%, suitable for a variety of usage scenarios
Standardized size (Φ13.8mm), compatible with most Window Cleaning Equipment

Ceramic Atomizer Plate Industry Applications

Smart home cleaning system atomization module
High-rise building exterior wall cleaning equipment atomization system
Large glass curtain wall cleaning device
Medical environment disinfection equipment

Usage Instructions

Fill with diluted pH-neutral cleaner or pure water (avoid strong acids/alkalis), ensuring liquid covers the chip. The device auto-mists during operation (≤30 mins/session). Drain residual liquid post-use, descale weekly with white vinegar soak, and store with the diaphragm dry.
