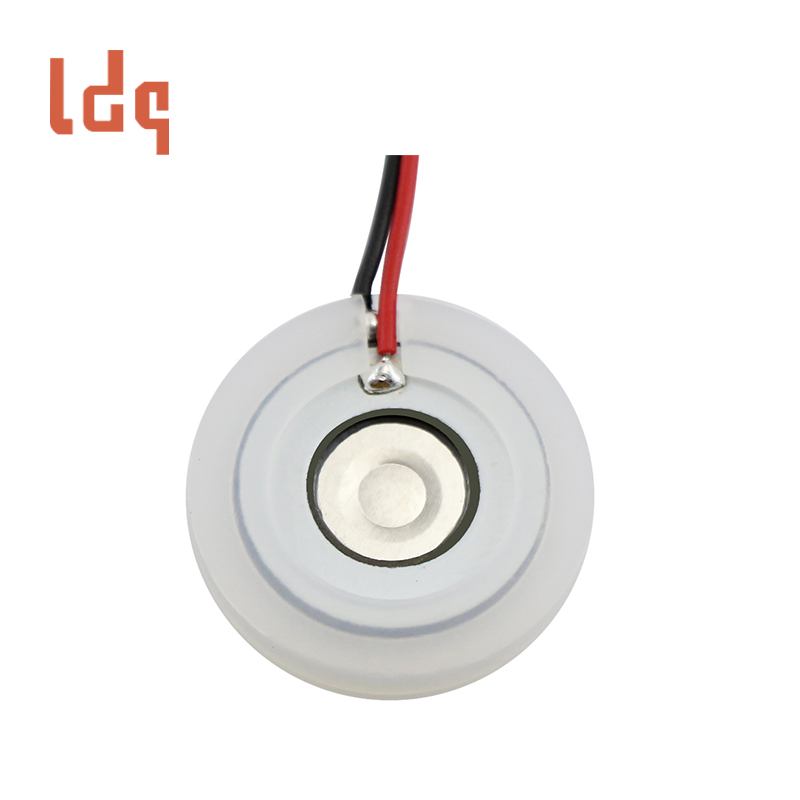

Evaporative Air Cooler Atomizer Plate

4 month ago
11 0
Product details
Evaporative Air Cooler Atomizer Plate is made of precision ceramics and SUS304 stainless steel. It has 1,100 micropores with a diameter of 5 microns. It can efficiently produce fine water mist and significantly improve the cooling effect of the air cooler.

Function

This Air Cooler Ultrasonic Atomizer Plate utilizes piezoelectric vibration to atomize water into 57 micron cooling mist, dispersed by fan airflow for evaporative heat absorption (local cooling 2–5℃). Features low-noise operation (<35dB), 3-stage mist control, auto dry-run shutdown, and compatibility with AC/USB power.

 Atomizer Plate Product Specifications

  • Metal sheet: Φ16±0.1
  • Piezoelectric sheet: Φ16±0.2
  • Hole area: Φ3.5±0.2
  • Hole diameter: 5±1μm
  • Number of holes: 1100 holes
  • Plastic ring: 20±0.5
  • Bare chip thickness: 0.65±0.1
  • Plastic ring thickness: 3.0±0.3
Air Cooler Atomizer Plate

Air Cooler Atomizer Plate

 Air Cooler Atomizer Plate Features

  • Resonance frequency 108±5KHz, high atomization efficiency
  • Micropore diameter is only 5±1μm, producing ultra-fine water mist,
  • Atomization area Φ3.5±0.2mm, wide coverage
  • Service life exceeds 3000 hours
  • SUS304 stainless steel material, strong corrosion resistance
  • Working voltage up to 90Vp-p, good stability


Evaporative Air Cooler Atomizer Plate Industry Applications

  • Central air conditioning auxiliary cooling system for shopping malls and supermarkets
  • Cooling the outdoor dining area of ​​restaurants and cafes
  • Temperature and humidity control in large spaces such as gymnasiums and exhibition halls
  • Industrial environments that require humidity control such as textile factories and printing workshops
  • Preservation and cooling systems for food processing plants
  • Special agricultural scenarios such as mushroom cultivation
Air Cooler Atomizer Plate


Usage Instructions

Use purified or boiled-cooled water (tap water prohibited). Ensure water covers the chip; operate ≤4 hours/session with 30-min breaks. Descale weekly with vinegar soak (10 mins), rinse and air-dry. When storing, empty the tank and seal electrode ports with dust covers.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
