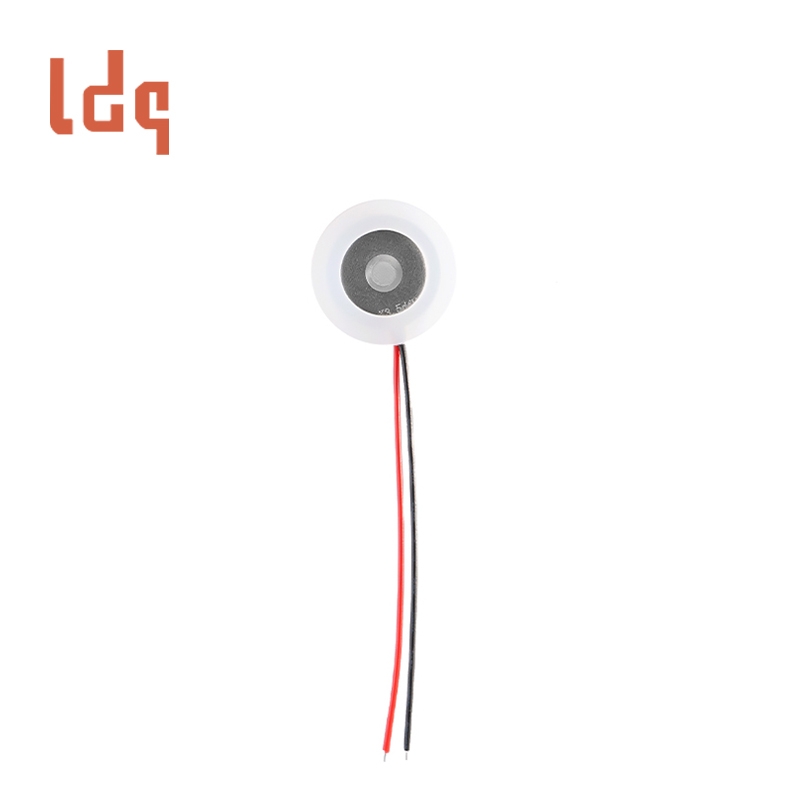

Medical Fpc Atomizing Plate

3 month ago
19 0
Product details
The Ceramic Atomizer Plate is made of high-purity piezoelectric ceramic material, which has excellent atomization efficiency and ultra-long service life. The micropore diameter is precisely controlled at 10±1μm to achieve medical-grade atomization accuracy.

The ceramic nebulizer chip utilizes piezoelectric ceramic material to generate high-frequency vibrations (ultrasonic principle), breaking liquids into fine mist particles (3–10 microns) for efficient atomization. It features low power consumption, corrosion resistance, and high stability.

Ceramic Atomizer Plate Product Specifications

  • Metal sheet: Φ10±0.1mm
  • Piezoelectric sheet: Φ10±0.2mm
  • Hole area: Φ2±0.2mm
  • Hole diameter: 10±1μm
  • Number of holes: 540 holes
  • Enameled wire: L=15±3mm, wire diameter 0.3mm
  • Plastic ring: 11.2±0.5mm
  • Bare chip thickness: 0.65±0.1mm
  • Plastic ring thickness: 2.0±0.3mm
  • Material: 316L stainless steel

Atomizer Plate For Steam Eye Mask Machine

Medical Piezoelectric Ceramic Atomizer Plate

Ceramic Atomizer Plate For Atomizer Features

  • Resonance frequency: 155±10KHz (customizable)
  • Working voltage: ≤90Vp-p
  • Atomized particles: 3-5μm
  • Service life: ≥3000 hours


Atomizer Ceramic Atomizing Plate Industry Applications

  • Core components of atomization drug delivery equipment
  • Atomization components of respiratory therapy equipment
  • Core components of high-end facial steamer
  • SPA aromatherapy atomizer
  • Industrial humidification system
  • Precision spraying equipment
Medical Piezoelectric Ceramic Atomizer Plate

Atomizer Plate
