Medical Thimble Spray Atomized Plate

Medical Thimble Spray Atomized Plate

9 month ago

44 0

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

 9 month year

Product details

From standard products to deep customization, we provide high-performance, highly reliable piezoelectric ceramic transducer solutions, serving diverse fields such as ultrasonic cleaning, medical devices, sensing, flow detection, and industrial automation.From materials to devices, from simulation to application. We provide not just products, but piezoelectric solutions based on deep knowledge accumulation, helping clients achieve innovation and breakthroughs in the fields of ultrasonics and sensing.

Frequently Asked Questions (FAQ)

Q1: What's the difference between a piezoelectric ceramic transducer and an atomizer plate/disc?

A: An atomizer plate/disc is a specific application branch of piezoelectric ceramic transducers. It is specifically designed to break liquids into fine droplets, typically featuring a thin structure, operating at specific high frequencies, and having micro-pores. Piezoelectric ceramic transducers are a broader concept, referring to all devices that utilize the piezoelectric effect for electromechanical conversion. Their design forms, operating frequencies, and applications (e.g., ultrasonic cleaning, sensing, sound generation, actuation) vary widely. In essence, an atomizer plate is a special type of transducer.

Q2: How do I match a drive power supply for my system?

A: Driver power supply matching is crucial. Key points include: 1) Frequency Matching:The power supply output frequency should track and lock onto the transducer's resonant frequency for maximum efficiency. We recommend using an ultrasonic generator with automatic frequency tracking. 2) Power & Voltage Matching:The power supply's maximum output power and peak voltage must meet the transducer's requirements at the target operating amplitude, with some margin. We can recommend or provide matched driver power supply solutions for our clients.

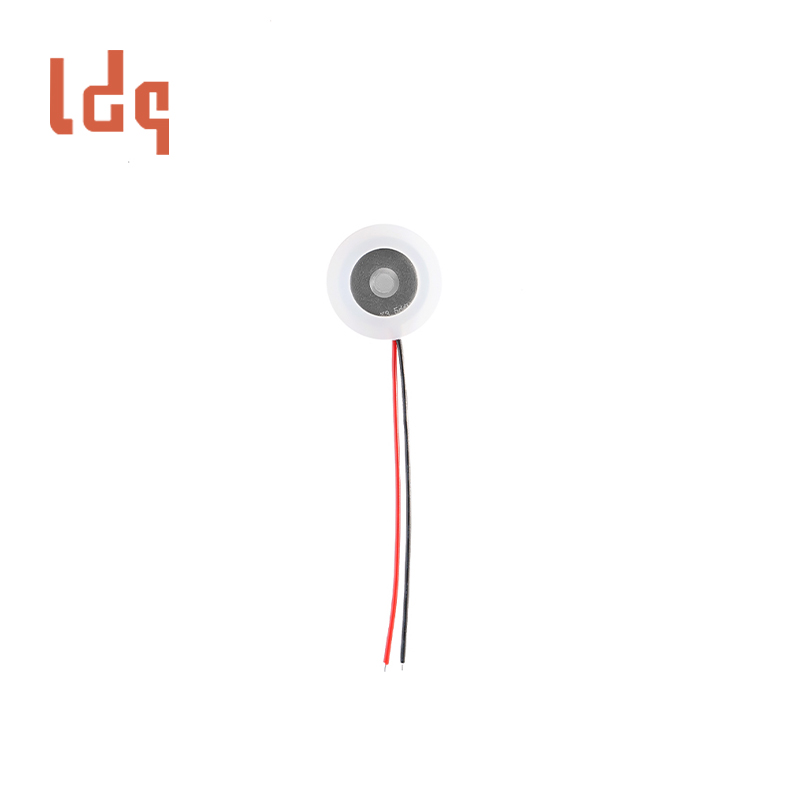

Atomizer Plate Product Specifications

Metal sheet: Φ13.8±0.1mm
Piezoelectric sheet: Φ11.3±0.2mm
Hole area: Φ2.5±0.2mm
Hole diameter: 7±1um
Number of holes: 600 holes precisely arranged
1571#28 double red line: L=60±5mm
Diameter of rubber ring: 15±0.5mm
Bare chip thickness: 0.65±0.1mm
Thickness of rubber ring: 2.5±0.3mm

Atomization Disc Features

The punching area is 2.5mm, the aperture is 7±1μm, and there are 600 holes in total, ensuring that the atomized particles are fine and uniform.
Resonant frequency is 150±10KHz, resonant impedance is ≤500Ω, capacitance is 1500±20%PF, and working voltage is 90Vp-p.
The service life is more than 3000 hours, suitable for long-term continuous use.
The steel sheet is made of 316L material, which has strong corrosion resistance; the piezoelectric ceramic sheet has stable performance.

Ceramic Atomizer Plate Industry Applications

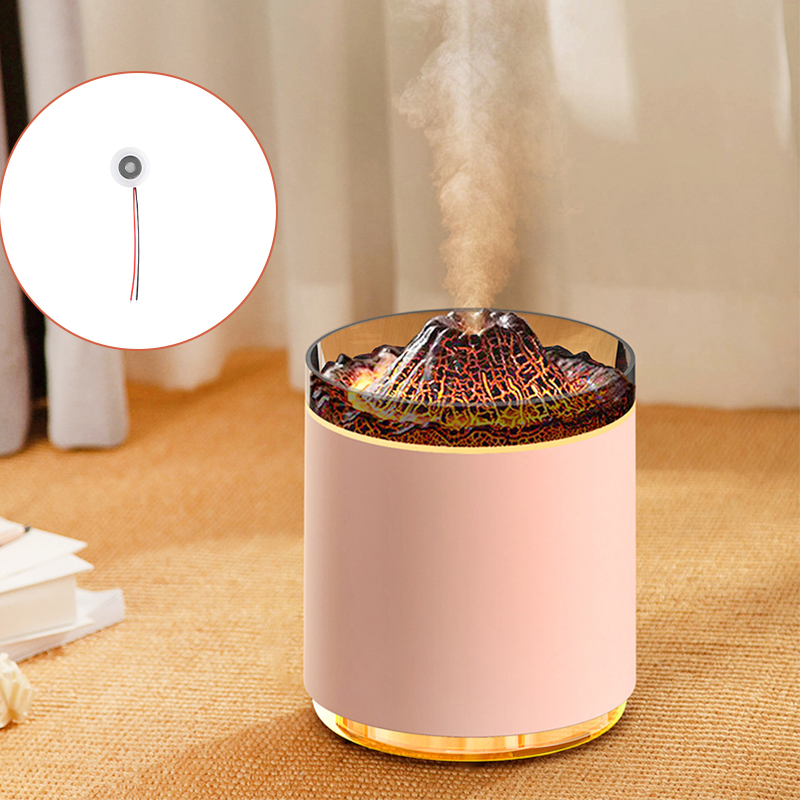

Home aromatherapy machine: Provides efficient atomization for aromatherapy machines to diffuse the aroma of essential oils.
Small fan and air cooler: Used in combination with a fan or air cooler to achieve cooling and humidification functions.
Medical nebulizer: Suitable for medical nebulization equipment to help drugs be efficiently atomized.
Industrial humidification system: Used for humidification and air conditioning in industrial environments.

Application Scenarios

Widely used in household/car humidifiers, aroma diffusers, medical nebulizers, industrial spray systems, and disinfection devices. Ideal for air humidification, medicinal aerosol inhalation, fragrance diffusion, and surface coating applications.

Conventional microporous atomizer parameters

Atomizer window cleaning atomizer plate supply
