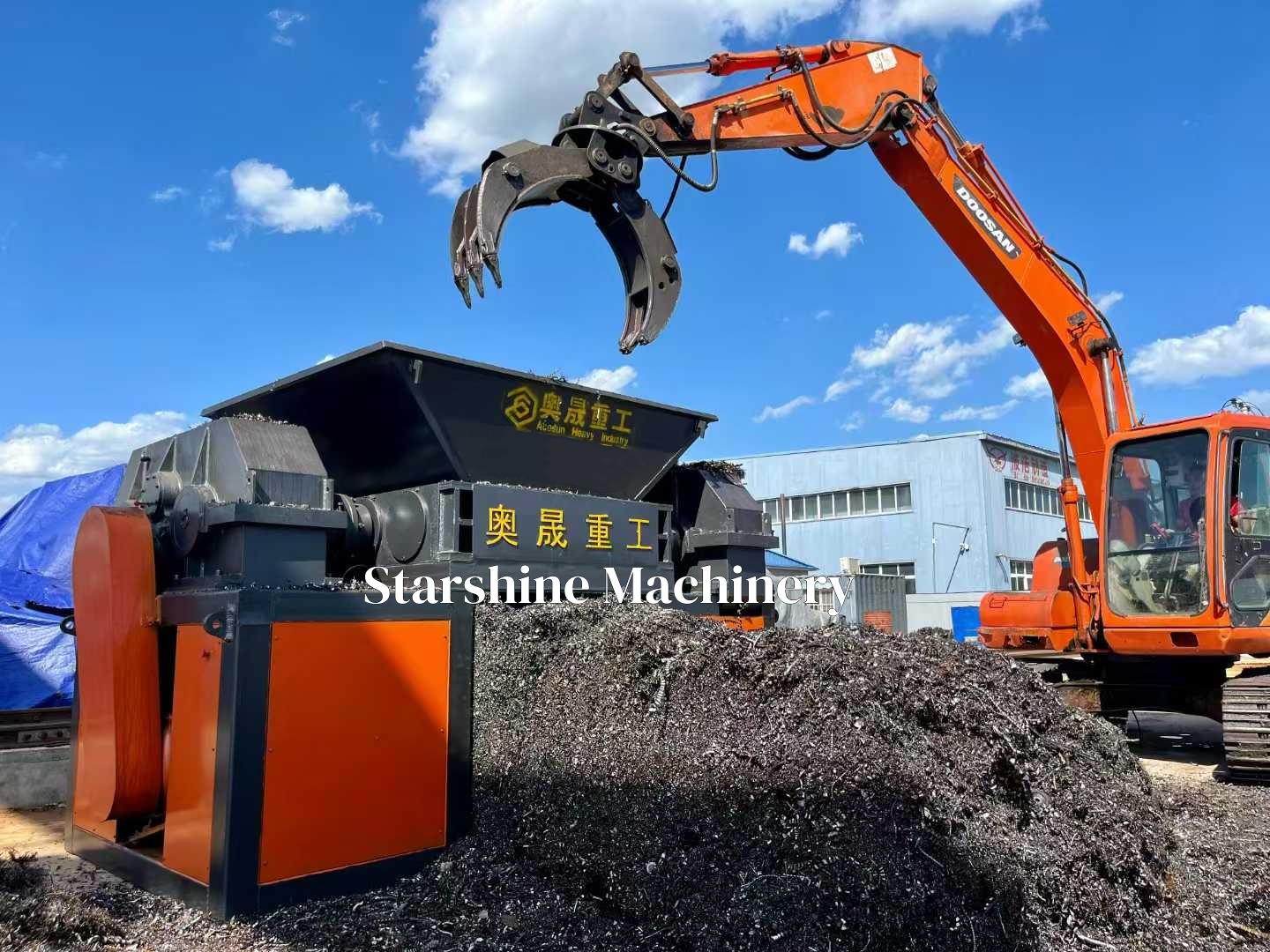

The steel shavings shredder is mainly driven by a motor to drive a reducer. The output shaft of the reducer is connected to the shredding knife shaft, on which several shredding blades are installed. When the equipment is started, the high-speed rotation of the motor is converted into a low-speed, high-torque rotation of the knife shaft through the reducer. The steel shavings to be processed enter the shredding chamber and are subjected to the combined effects of shredding, squeezing and shearing forces under the action of the rotating shredding blades. The blades interlock and bite each other, gradually breaking the steel shavings into smaller blocks or particles for further processing.
Structural Composition:
1. Feeding system:
Usually composed of a feeding hopper and a conveying device. The feeding hopper is used to temporarily store steel shavings. It is designed with a certain inclination angle to facilitate the smooth sliding of steel shavings. The conveying device generally uses a conveyor belt or a screw conveyor to uniformly convey the steel shavings to the shredding chamber to ensure the continuity and stability of the feeding.Iron Shredder
2. Shredding chamber:
It is the core area for the crushing of steel shavings. It is made of solid wear-resistant steel plates. The size of the internal space depends on the equipment model. The knife shaft and shredding blades are installed in the cavity. The knife shaft is fixed on both sides of the cavity through the bearing seat to ensure its stability during high-speed rotation. The shredding blade is made of high-strength alloy steel and has high hardness, wear resistance and impact resistance after a special heat treatment process. The shape and arrangement of the blades are carefully designed to improve the crushing efficiency and effect.Aluminum Shredder
3. Power system:
Including motors and reducers. The motor provides power for the equipment. Motors of different powers are selected according to the processing capacity and shredding difficulty of the equipment. The reducer reduces the high speed of the motor and increases the output torque, so that the cutter shaft can drive the shredding blade to work at a suitable speed and strong torque, and effectively crush the steel shavings.Steel Shredder
4. Discharging system:
A discharging port is set below the shredding chamber, and the crushed steel shavings are discharged through the discharging port. The discharging port can be connected to a conveyor belt or other conveying equipment to transport the crushed materials to a designated location, such as a collection box, magnetic separation equipment, etc., for subsequent classification, screening or smelting.Aluminum Scrap Shredder
5. Control system:
It consists of operating buttons, electrical control cabinets, sensors, etc. The operator starts and stops the equipment through the operating buttons, and controls parameters such as the feed speed and the cutter shaft speed. Various electrical components are installed in the electrical control cabinet to centrally control and protect the operation of the equipment. The sensor is used to monitor the operating status of the equipment in real time, such as motor current, cutter shaft temperature, etc. When an abnormal situation occurs, the sensor will feed back the signal to the control system, and the control system will automatically take corresponding measures, such as shutdown alarm, to ensure the safe operation of the equipment.Scrap Metal Crusher
Equipment Features:
1. Strong processing capacity:
It can quickly and effectively crush a large amount of steel shavings to improve production efficiency. Through the rationally designed cutter shaft and blade structure, as well as the powerful power system, it can adapt to different production requirements.Heavy Duty Metal Shredder
2. Good crushing effect:
The shredded steel shavings are uniform in size and small in particle size, which is conducive to subsequent smelting and processing. The special design and arrangement of the blades allow the steel shavings to be fully crushed in the shredding chamber to ensure the crushing quality.
3. Wide adaptability:
It is not only suitable for processing steel shavings, but also for crushing other similar metal wastes, such as iron filings, thin steel, etc. By replacing blades of different specifications and adjusting the cutter shaft gap, the crushing requirements of metal wastes of different materials and shapes can be met.
4. Stable operation:
With high-quality materials and advanced manufacturing technology, the overall structure of the equipment is sturdy and durable. Key components such as cutter shafts and bearings have been specially designed and processed to withstand high-load operation, reduce the probability of equipment failure, and ensure long-term stable operation.
5. Easy to operate:
The control system is user-friendly and the operation buttons are reasonably arranged. Operators can master the operation of the equipment after simple training. At the same time, the equipment has an automatic protection function, which reduces the operation risk and improves the safety of the equipment.
