Image setter

2 year ago

53 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Introduction

Most printing processes require professionally produced printing plates, especially in the field of specialty printing, including pad printing, screen printing, hot foil stamping, flexographic printing, offset printing, and gravure printing. With the continuous development of digital printing technology, many high-end printing applications are gradually adopting Computer-to-Plate (CTP) technology, which uses computer-controlled systems to directly transfer digital artwork onto printing plates, improving production efficiency and reducing manual preparation processes. Offset printing, flexographic printing, and some screen printing applications have already achieved mature CTP solutions.

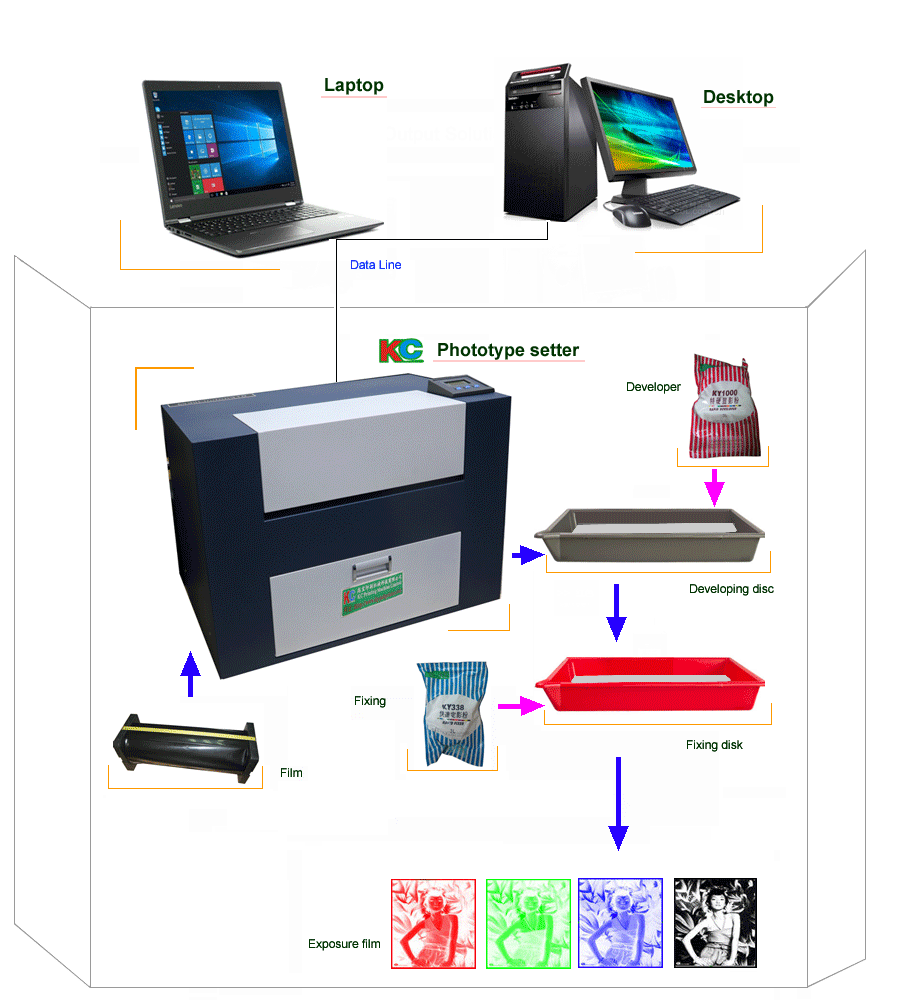

However, many printing applications with lower investment requirements and flexible production demands still rely on traditional plate-making processes. In these workflows, the designed artwork is first output onto a printing film (film output) by a laser image setter, and the film is then used for exposing and producing the final printing plate. This process remains widely used in industries such as pad printing, screen printing, and hot foil stamping, where high-quality film output is essential for accurate image reproduction. The film output machine uses a laser exposure system to create high-resolution artwork on photosensitive film. The printing film is typically made from a PET base coated with a photosensitive layer. During the plate-making process, transparent areas of the film allow ultraviolet light to pass through, while opaque areas block light exposure. The exposed photosensitive layer is hardened by UV light, while the unexposed areas are removed during the developing and washing process, creating a precise image pattern for printing plate production. For many small and medium-sized pad printing, screen printing, and hot stamping businesses, investing in expensive professional prepress equipment can significantly increase operating costs. The KC series high cost-effective laser image setter provides an affordable and practical solution for businesses requiring reliable film output and plate making. With stable laser exposure performance, suitable output accuracy, simple operation, and low maintenance requirements, this laser phototypesetter helps users improve plate-making efficiency while reducing production costs. Whether you operate a pad printing machine, screen printing machine, or hot foil stamping machine, provide film output services, or offer printing plate-making services to other manufacturers, the KC high resolution film output machine is an ideal choice for achieving professional-quality film production at an affordable investment. It is widely suitable for screen printing plate making, pad printing plate production, hot stamping plate preparation, packaging printing, and specialty printing applications.

How to use imagesetter?

Technical sheets

Laser film imagine setter //Parameter
PM-610FL	PM-660FL
Max exports width: 610mm; Output speed: 85mm/min; Resolution ratio: 1800DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%	Max exports width: 660mm; Output speed: 85mm/min; Resolution ratio: 1800DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.05mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
Works supply
110V-220VPower supply; 5-10M2 dark room; Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA / X V GA/ CD R OM Developing tray, Fixation tray.

Solution

Characteristic

- Semiconductor luminescence lamp-house;
- Flat operation mode;
- Expert image controlling technology;
- Film store box aggregated storing, measuring, cutting, feeding function installed
- RIP 3.0 sent with machine, used both PC AND MAC system;
- Design for pad film output.
- The roll film feeding , suitable for the negative of the output of any length and Positive Film.
