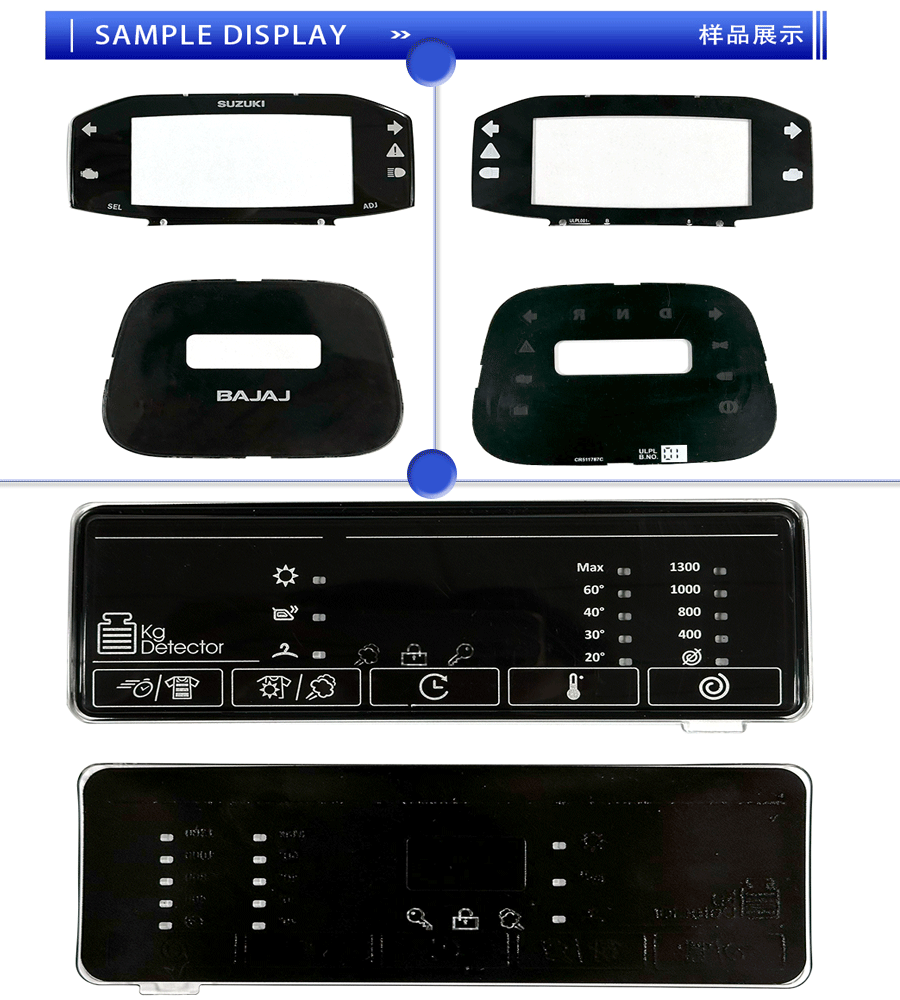

Samples

This is a fully automatic shuttle UVLED screen printer designed specifically for washing machines and other home appliance panels. The workbench uses a servo-driven shuttle workbench with precise positioning. The screen lifting is driven by a servo motor and a ball screw. When facing products of different heights, it can be easily achieved by simply setting parameters; the UVLED curing system is adopted, and each color of ink can be quickly dried after printing. The whole machine adopts a mobile touch screen panel operation, which is simple and convenient.

In order to achieve visualization and high contrast of the operation process, the washing machine panel usually requires black or silver ink with strong covering power. However, such UV ink is generally difficult to dry, and the necessary balance must be made in terms of transparency, covering power, and the intensity of the UV lamp. After many implementations, UVLED ink was finally used to replace the traditional solvent-based ink, realizing the automation of panel printing, which greatly improved production efficiency.

Machine description

Automatic 3 colors Flat screen printing machine with servo shuttle table //Structure
Working table	Shuttle working table, Size: 200*300mm, servo motor control
Actions	Up-down of screen plate, servo motor control
To be printed	Plain objects
Squeegee stroke	Adjust the Limited switch
Automatic 3 colors Flat screen printing machine with servo shuttle table //Usage and characters
Application	The machine panel, plastic parts, furniture industry, glass industry, circuit board industry, film, wooden case
Automatic 3 colors Flat screen printing machine with servo shuttle table//Parameters
Technical parameters	Max printing thickness: 100 mm； Air consumption: 90Litre/Min； Dimension of working table: 200×1500mm； Max printing areas: 100×250mm; Max printing speed: 500Pcs/H; Max frame dimension: 350×550mm; Compress air: 5-7 bar; Stroke of cylinder up and down:160mm； Stroke of Squeegee: 200mm.
Works supply	3P380V Power supply； 5-7Barcompress air；
Package parameters	Outer dimension:2.20×0.76×1.85m； Net weight: 650kg；
Package parameters	Package dimension:2.35×0.82×1.96m; Gross weight: 763kg; CBM: 3.7835
H.S.CODE	8443192190
Certificate	CE

Machine structure

Automatic 3 Color Flat Screen Printer with Servo Shuttle Table for Home Appliance Panels and Industrial Applications

The Automatic 3 Color Flat Screen Printer with Servo Shuttle Table is a state-of-the-art solution designed for high-precision printing on home appliance panels, including washing machine components. This fully automated system integrates advanced servo motor technology, UVLED curing, and user-friendly touch screen controls to deliver exceptional performance, accuracy, and efficiency in industrial printing environments. The machine is ideal for applications requiring high coverage, such as black or silver ink on flat surfaces, where traditional solvent-based inks may struggle with drying times and adhesion. By utilizing UVLED ink, the printer achieves rapid curing, improved environmental compliance, and consistent print quality across multiple layers.

Key features of this automatic screen printing machine include a servo-driven shuttle workbench that ensures precise positioning, a screen lifting mechanism powered by a servo motor and ball screw for smooth and accurate movement, and a three-color printing system capable of achieving overprinting accuracy up to 0.03mm. The machine is equipped with linear guide rails for enhanced repeatability and durability, while rodless cylinders control ink scraping and return actions for efficient operation. An air tank provides stable compressed air supply, ensuring reliable performance during continuous production runs. The inclusion of a UVLED curing system allows for quick drying of each ink layer, reducing cycle time and increasing overall productivity.

This versatile flat screen printer supports a wide range of materials, including plastic parts, metal components, glass, circuit boards, films, and wooden cases. It is suitable for both small-scale and large-volume manufacturing operations, making it an excellent choice for industries focused on precision and consistency. The machine's technical specifications include a maximum printing thickness of 100mm, a working table size of 200×1500mm, and a maximum printing area of 100×250mm. With a printing speed of up to 500 pieces per hour, it is well-suited for fast-paced production environments. The machine operates on a 3P380V power supply and requires compressed air at 5–7 bar, ensuring compatibility with standard industrial setups.

Designed with user convenience in mind, the printer features a mobile touch screen panel that simplifies operation and parameter setting. Operators can easily adjust settings for different product heights and printing requirements through the intuitive interface. The machine also includes programmable controller functions that allow for customization of printing parameters, ensuring optimal results for various ink types and surface conditions. For high-covering inks, the system enables multiple printing passes to enhance opacity and visual contrast, making it particularly effective for washing machine panels and other industrial components that require strong color definition.

The Automatic 3 Color Flat Screen Printer with Servo Shuttle Table is built using high-quality electrical and pneumatic components from renowned brands, ensuring long-term reliability and minimal maintenance. Its CNC-processed accessories guarantee good interchangeability and standardization, allowing for easy upgrades and repairs. The machine’s compact design and robust construction make it suitable for installation in various workshop settings, whether in a dedicated printing facility or integrated into a larger production line. With a net weight of 650kg and a gross weight of 763kg, it offers a stable and durable platform for continuous operation.

Users have praised the machine for its ease of use, precision, and ability to handle complex printing tasks with minimal downtime. Many have noted that the transition from solvent-based inks to UVLED ink has significantly improved print quality and reduced environmental impact. The combination of automation, high-speed processing, and customizable settings makes this printer a valuable asset for manufacturers seeking to enhance their production capabilities. Whether used for printing on appliance panels, electronic components, or decorative surfaces, the machine delivers consistent results that meet industry standards.

Common questions about the Automatic 3 Color Flat Screen Printer with Servo Shuttle Table often revolve around setup, maintenance, and compatibility with different materials. Operators typically ask how to adjust the machine for varying product sizes and how to optimize ink drying times. The machine’s flexible design and intuitive controls make it easy to adapt to new projects, while its robust build ensures long-term performance. Additionally, users frequently inquire about the benefits of UVLED curing compared to traditional methods, highlighting its advantages in terms of speed, energy efficiency, and eco-friendliness.

In summary, the Automatic 3 Color Flat Screen Printer with Servo Shuttle Table represents a significant advancement in industrial printing technology. Its integration of servo-driven mechanisms, UVLED curing, and user-friendly controls makes it an ideal choice for manufacturers looking to improve efficiency, reduce waste, and achieve high-quality prints consistently. Whether used in home appliance production, electronics, or custom manufacturing, this machine offers a reliable and scalable solution for modern industrial needs.

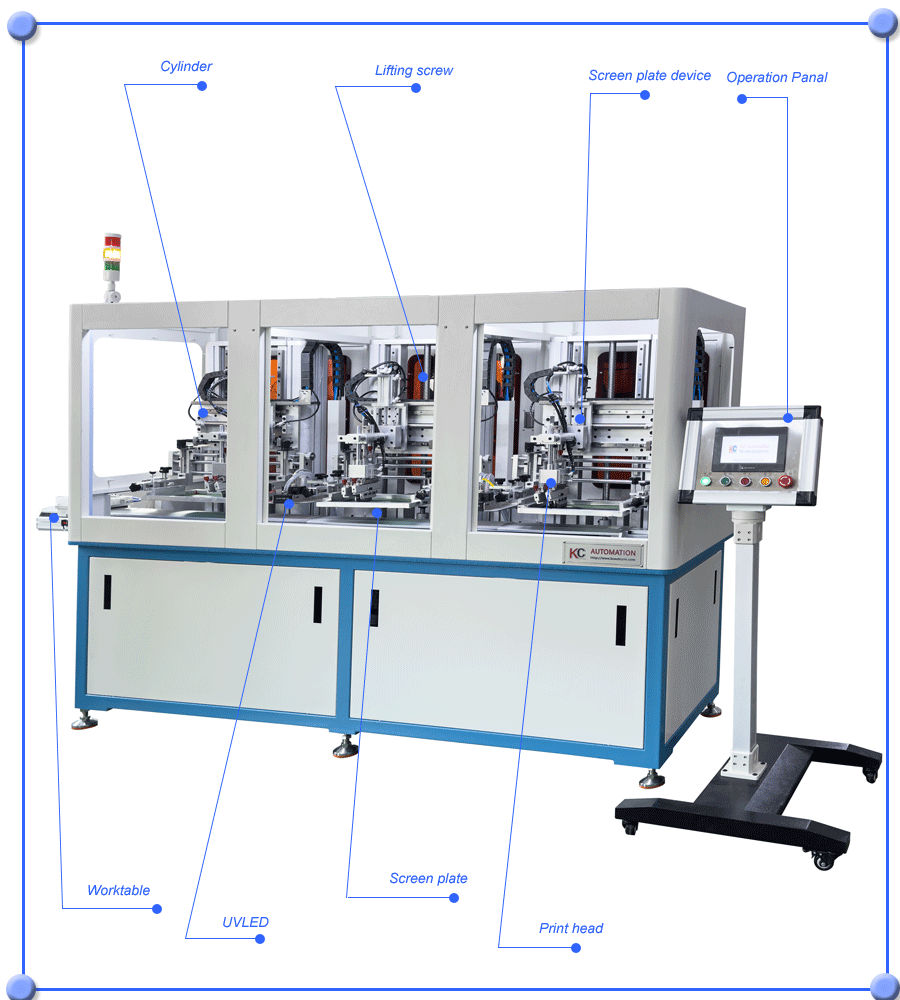

Machine structure

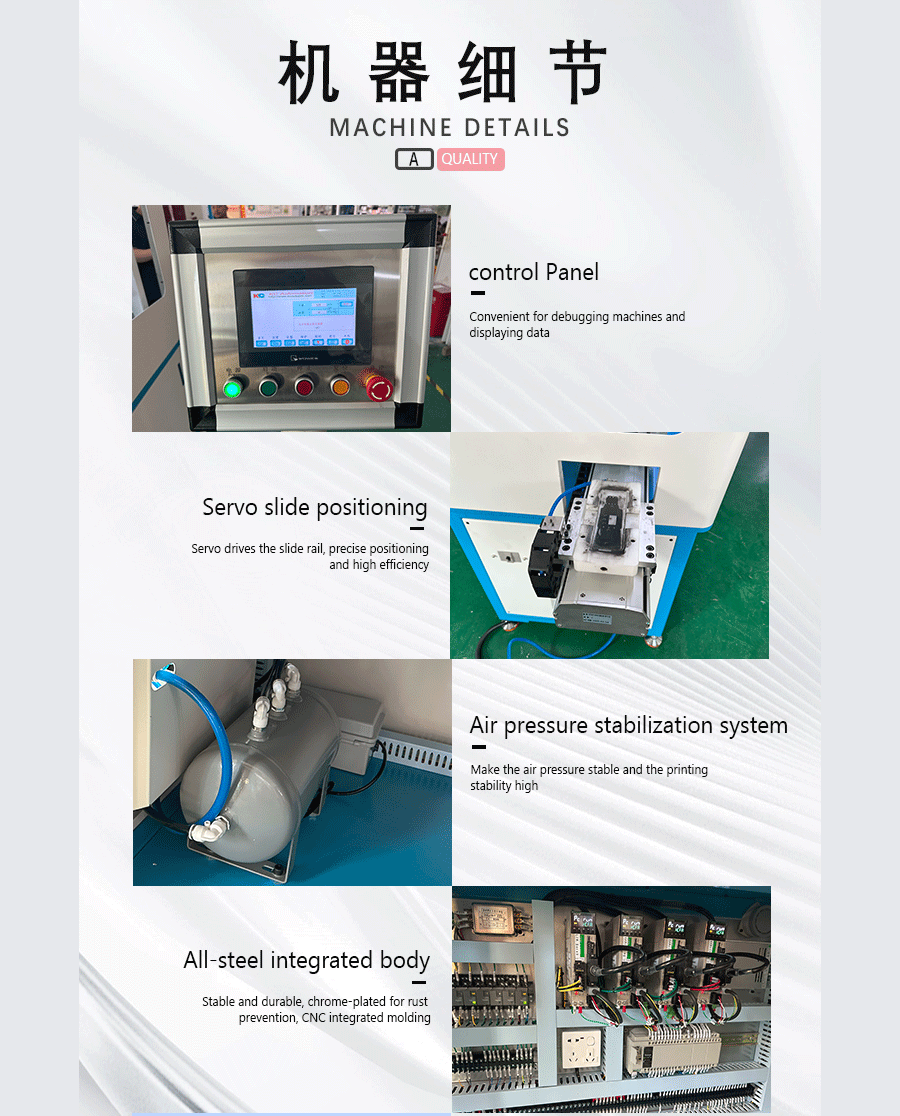

Servo shuttle workbench, precise positioning;
Human-machine interface operation panel, programmable controller parameter setting;
Screen lifting servo drive, suitable for products of different heights;
Three-color screen printing, overprinting accuracy up to 0.03mm;
Linear guide rails for precise guidance, high repeatability;
Ink scraping and ink return actions are controlled by rodless cylinders;
The air tank provides compressed air, which makes the operation more stable;
UVLED curing system, rapid ink curing, more environmentally friendly;
For high-covering inks, different printing times can be set to improve coverage;
Famous brand electrical components and pneumatic components ensure long-lasting machine life;
CNC accessories processing, good interchangeability and standardization.
