Transducer for Skin Scrubber Scraper

2 month ago

13 0

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

 3 month year

Product details

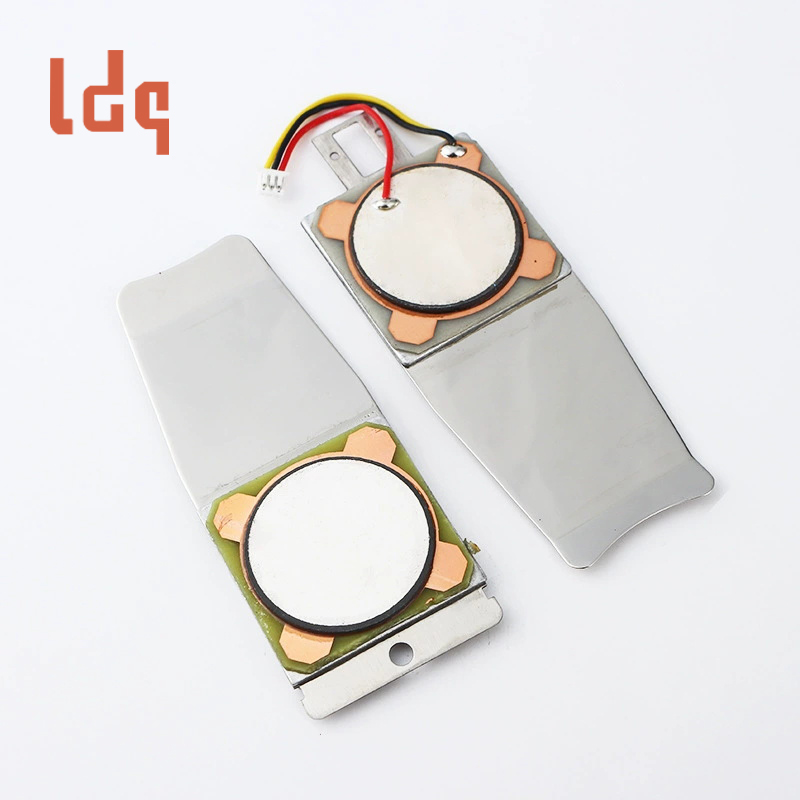

This product is a high-performance piezoelectric ceramic transducer designed for beauty equipment. It is Φ81mm×5.5mm in size, with precise resonant frequency (25±3kHz) and low resonant impedance (≤150Ω). Its operating voltage range is 0-400V (peak-to-peak), its operating current is 0-800mA, and its electrostatic capacitance is 6800±20%PF, ensuring efficient energy conversion and stable output performance. The product is equipped with 1571#28 red and black wires, 50±5mm in length, and uses 2.0 terminal connections, which are easy to integrate into beauty equipment and provide reliable electrical connections.

Piezoceramic Transducer Product Specifications

Product size: Φ81mm×5.5mm
Resonant frequency (FR): 25±3kHz
Working current: 0-800mA
Working temperature: +5°C~+50°C
Working voltage (VP-P: 0-400V
Wire specification: 1571#28 red and black wire, length 50±5mm, 2.0 terminal
Resonant impedance (RO): ≤150Ω
Electrostatic capacitance (CO): 6800±20%PF

Beauty instrument transducer Features

High-precision resonant frequency: The resonant frequency is 25±3kHz, ensuring stable performance in specific applications.
Wide operating voltage range: Supports voltage input of 0-400V (peak-to-peak), adapting to various driving requirements.
Low resonant impedance: The resonant impedance is ≤150Ω, effectively reducing energy loss and improving efficiency.
Excellent temperature resistance: The operating temperature range is +5°C~+50°C, suitable for a variety of environmental conditions.

Ultrasonic Transducer For Skincare Industry Applications

Ultrasonic beauty device: used for cleaning, introducing essence or promoting collagen regeneration, improving skin care effects.
Radio frequency beauty equipment: used as a vibration source to assist radio frequency energy transmission, enhancing firming and lifting effects.
Microcurrent beauty device: combined with microcurrent technology, helps the skin absorb nutrients and improve skin quality.
Massage beauty tool: provides high-frequency vibration, used for facial or body massage, relieves fatigue and promotes blood circulation.
