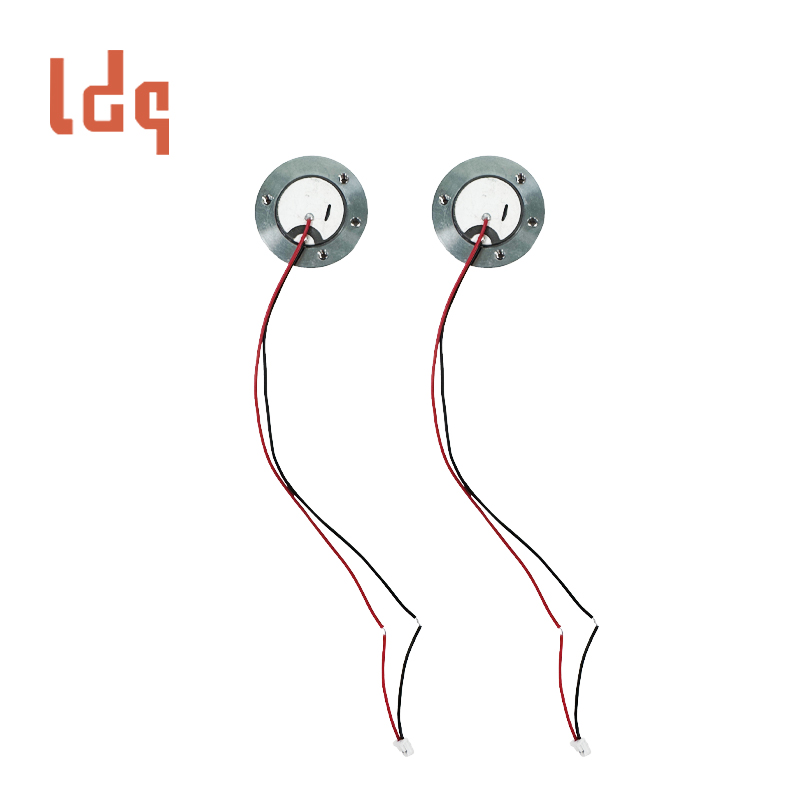

Ultrasonic Transducer For Beauty Head

9 month ago

29 0

Shenzhen Liandaqi Precision Ceramic Co., Ltd.

 9 month year

Product details

Ultrasonic Skin Care Transducer has the characteristics of high precision, high stability, long life, etc. It can efficiently generate ultrasonic vibrations and is widely used in beauty skin care, medical care and other fields. Its excellent performance and reliable quality make it an ideal choice for beauty instrument manufacturers.

Piezoceramic Transducer Product Specifications

Metal seat diameter: Φ30±0.1mm
Piezoelectric ceramic diameter: Φ18±0.3mm
Positioning hole: Φ2.5mm
Fixed hole: M2.5*3
Wire specification: 1571#28 red and black wire, length 80±5mm
Metal seat thickness: 4.5±0.1mm
Overall thickness: 5±0.3mm

Beauty instrument transducer Features

High-precision piezoelectric ceramics (Φ18±0.3mm) ensure stable output of ultrasonic vibration.
304 stainless steel metal seat (Φ30±0.1mm) is corrosion-resistant and anti-oxidation, extending service life.
Optimized resonant frequency (1±0.3MHz) provides efficient energy conversion and reduces energy loss.
Resonant impedance ≤300Ω ensures low power operation, reduces heat generation, and improves equipment energy efficiency.
Capacitance value 1200±15% PF (1KHZ, 1Vrms test) ensures stable signal transmission and avoids distortion.

Ultrasonic Skin Care Transducer Industry Applications

Deep cleansing: high-frequency vibration generates microbubbles to loosen the oil and dirt in the pores.
Nutrition introduction: enhance skin permeability and assist the absorption of essences, masks and other ingredients.
Lymphatic detoxification: low-frequency vibration promotes blood circulation and relieves edema.
Typical instruments: ultrasonic cleansing instrument, import and export instrument.
