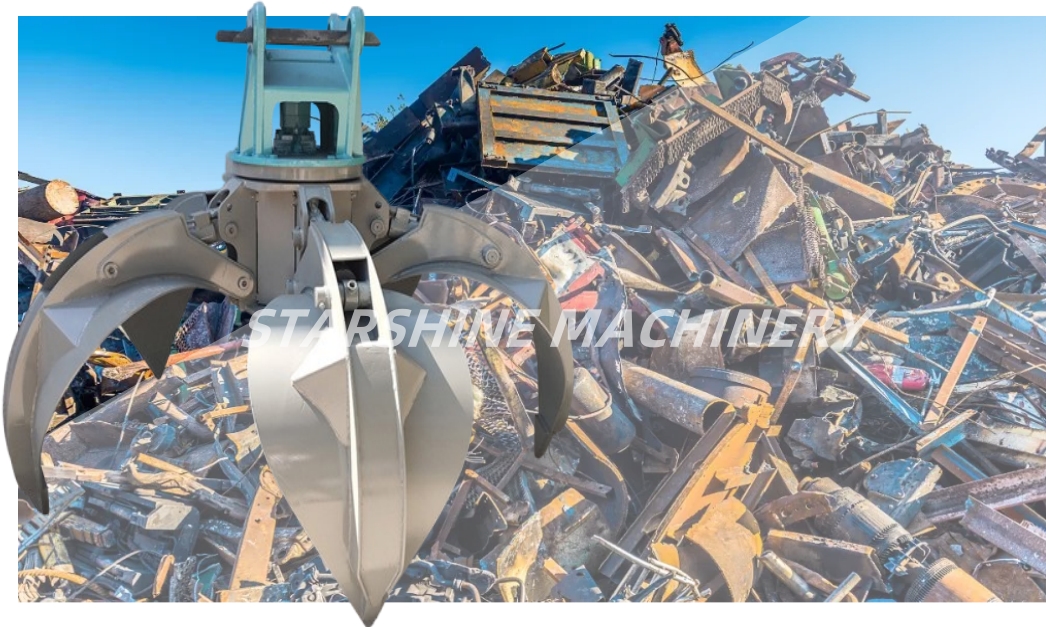

Rotary Grapple Multi-segment Orange Peel Scrap Grab
Structure characteristics:
1. Gripping flap design: usually adopts multi-flap design, commonly has four or five flaps, the shape is similar to the orange flap, hence the name. This design makes the steel grabber can grab more materials at one time, with large gripping area, which can better adapt to different shapes and sizes of materials.
2. Hydraulic system: Equipped with a special hydraulic system, the opening and closing movements of the gripping flaps are controlled by hydraulic cylinders to realize the gripping and releasing of materials. The hydraulic system can also drive the slewing device so that the grapple can rotate 360 degrees, which is convenient for grappling operations in different directions.
3. Big and small arm structure: the big and small arm of the steel grabbing machine is commonly known as “grabbing arm”, which is generally longer and often adopts the form of boom, which is suitable for long-distance grasping of materials and lifting and loading of materials for work, and it can expand the operation range and improve the working efficiency.
Working Principle:
1. Hydraulic drive: the Orange Peel Grabber works through the fixed hinge seat, hydraulic cylinder, hydraulic grip, hydraulic oil pipe and supporting hydraulic integrated control circuit. The operator through the control handle to control the flow of hydraulic oil and pressure, thus driving the hydraulic cylinder expansion and contraction, and then control the opening and closing movement of the grasping flap.
2. Gripping process: When it is necessary to grab the material, the operator operates the control handle to extend the hydraulic cylinder and drive the gripping flap to open, so that the material is surrounded in the gripping flap. Then, reverse operation of the control handle, so that the hydraulic cylinder retracted, the grasping flap closed, tightly grasp the material.
Application areas:
1. Iron and steel industry: in iron and steel mills, the Peel Grab is used for grasping and carrying materials such as scrap steel, pig iron, etc. It collects the scattered iron and steel wastes for recycling and reuse, improves the production efficiency and reduces the labor intensity.
2. Port terminal: Hydraulic Orange Peel Grab can be used for loading and unloading all kinds of metal materials, ores and other bulk cargoes, quickly gripping the cargoes from the ship to the shore or loading them from the shore to the ship, speeding up the turnover speed of the cargoes.
3. Garbage disposal: capable of grabbing and carrying construction garbage, domestic garbage, etc., classifying and transferring garbage, which helps garbage disposal and recycling.
Advantage:
1. High-efficiency gripping: the multi-flap design and strong gripping force make the orange-flap steel gripper capable of gripping a large amount of materials quickly and efficiently, which greatly improves the working efficiency.
2. Strong adaptability: according to different materials and working conditions, different number of flaps and different sizes of grabs can be selected, and it can also be equipped with rotating device to realize multi-angle gripping, adapting to a variety of complex working environments.
3. Easy operation: operated by hydraulic system and control handle, the operator can easily control the opening and closing and rotation of the grabbing flap, the operation is simple and easy to learn, and reduces the labor intensity.
