Product details

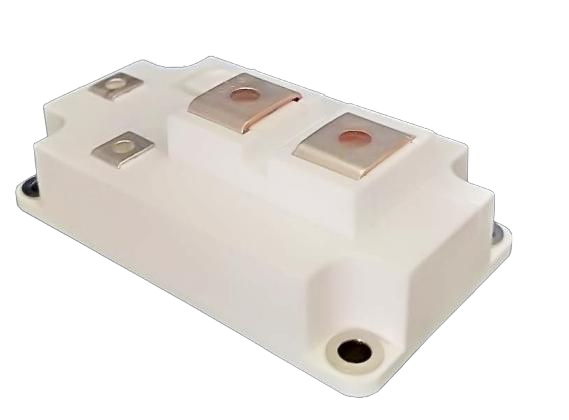

IGBT Power Module

400A 1200V IGBT Module -- LEGM400CU120L7S

Features:

• VCE=1200V IC=400A

• Low VCE(sat)

• VCEsat with positive temperature coefficient

• Maximum junction temperature 150℃

• Isolation Type Package

Applications:

• The inverter, solar inverters

• Motor control and drives

• Uninterruptible power supplies(UPS)

• Induction cookers

• Air conditioners

Package Type & Internal Circuit

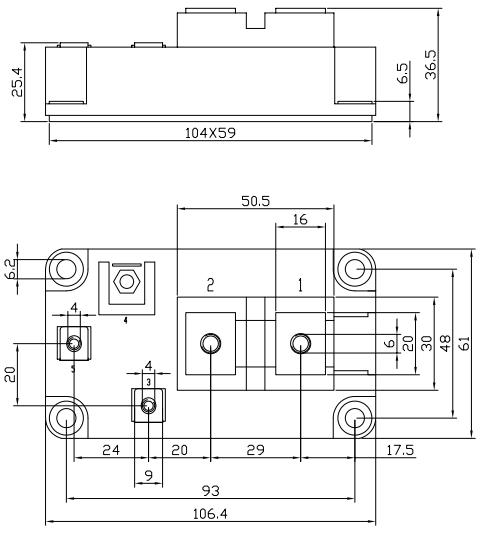

Package Dimensions

IGBT Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package. Designed for high-voltage (up to 6.5kV), high-current (up to thousands of amperes), and high-frequency switching operations, it acts as an efficient electronic switch for controlling large amounts of electrical power in industrial systems.
