600V 20A Intelligent Power Modules(IPM)

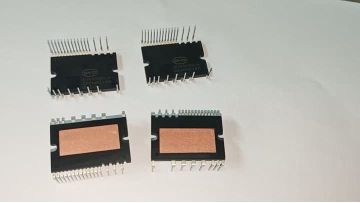

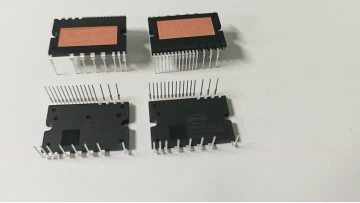

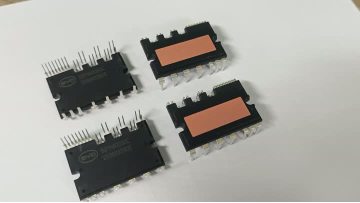

IPM Module -- BIPN60020C

General Description

BIPN60020C is an advanced Intelligent Power Module (IPM) that has newly developed and designed. This product features a compact package size and strong anti-interference capability, achieving optimal matching with Insulated Gate Bipolar Transistors (IGBTs). Internally, it integrates undervoltage lockout (UVLO) circuits, overcurrent protection circuits, and driving circuits, significantly enhancing system reliability. The built-in High-Voltage Integrated Circuit (HVIC) provides opto-coupler isolation-free driving functionality. The adoption of discrete negative terminals enables independent monitoring of each inverter phase current.This product is well-suited for compact and high-performance AC motor drives, such as low-power inverters and inverter air conditioners.

Features

Adopts DBC with low thermal resistance design
600V20A Three-phase IGBT inverter bridgeincluding control ICs for gate driving and protection
Divided negative dc-link terminals for invertercurrent sensing applications
Single-grounded power supply duetobuilt-inHVIC and bootstrap diode
Isolation rating of 2500Vrms/min

Application Area

 Low-power frequency converter

 Servo control systems

 Three-phase inverter drive for small powerac motor control

 Frequency-controlled domestic appliances like air conditioners and washing machines.

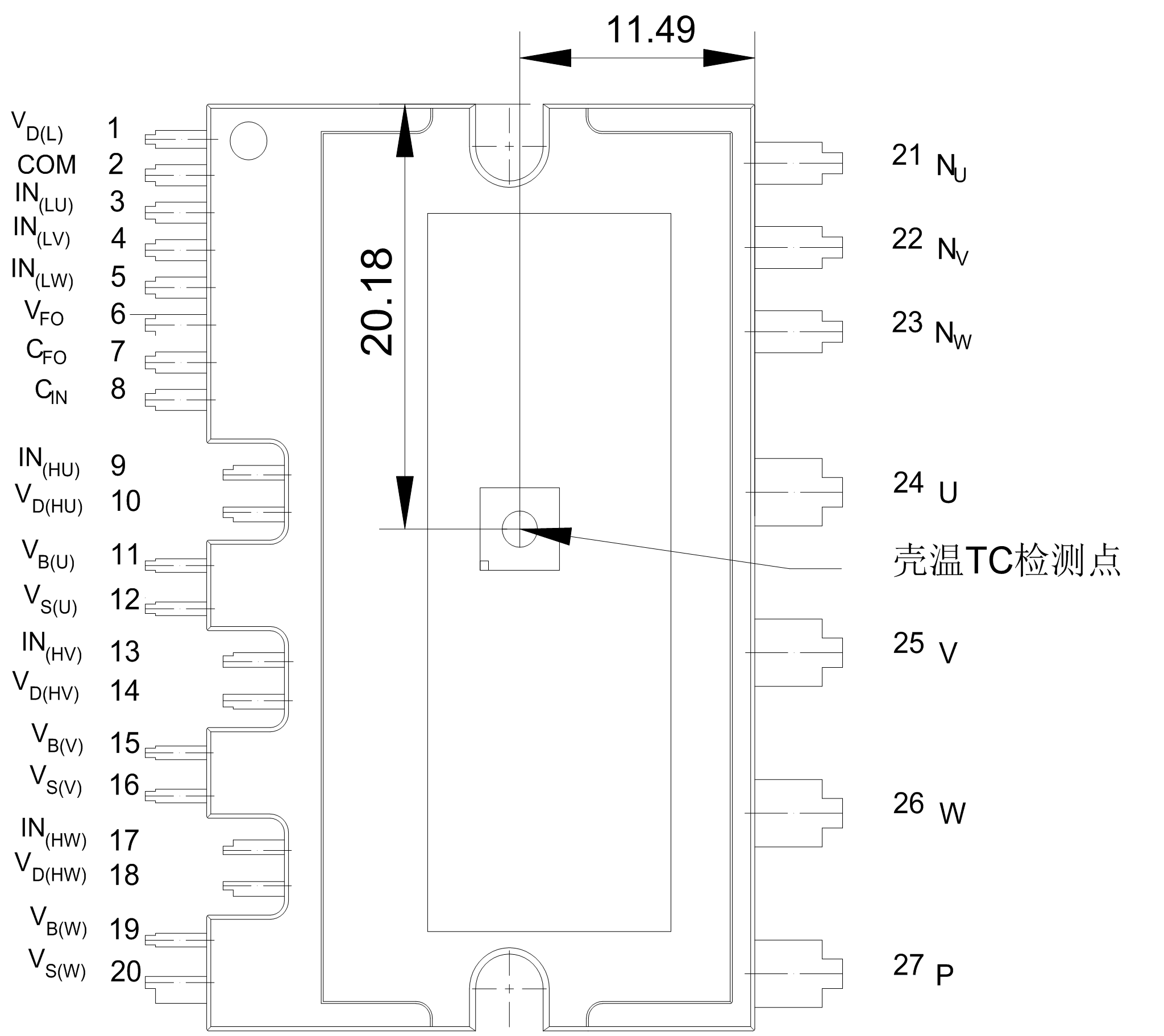

Pin Configuration

*Intelligent Power Module (IPM) is a highly integrated power electronics module, a type of semiconductor device. It monolithically packages power switching devices (such as IGBTs or MOSFETs), a drive circuit, protection circuits (including over-current, over-temperature, and under-voltage lockout protection), and interface circuitry (like level shifting and fault signal output) into a single compact physical unit. Widely used in motor drives & variable frequency control.
