WSM2010 Series E-beam Welding Alloy Resistor

2 week ago

3 0

Guangdong Kinwill Electronic Co., Ltd

 3 month year

Product details

Beam Welded Metal Alloy SMD Resistor

Welded Alloy Current Sense Resistor, SMD Package. For current sensing applications, featuring excellent stability.

Passed AEC-Q200 automotive-grade reliability testing.

Product Features:
• Electron beam welding process with pure copper electrodes, providing an ideal solution for current sensing applications.
• Excellent consistency, high reliability/stability, and superior pulse withstand capability.

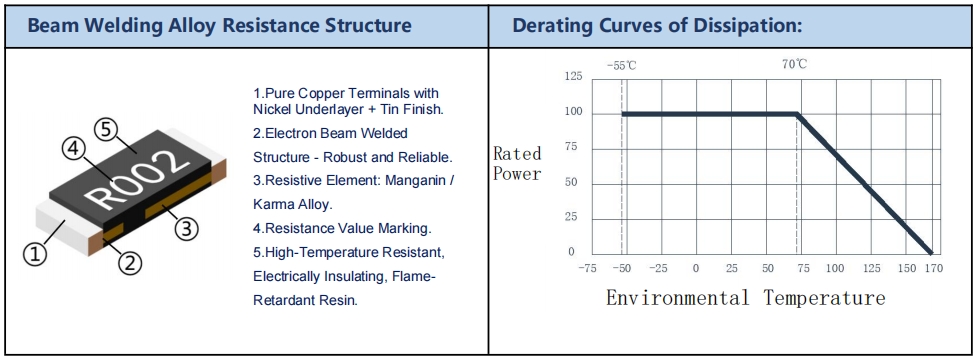

• Unique welding technology, all-metal structure, encapsulated in high-temperature resistant resin for enhanced weather resistance.
• Ultra-low thermal EMF (Electromotive Force).
• Extremely low parasitic inductance and fast response, suitable for high-frequency AC current detection.
• Compliant with RoHS and other environmental standards.
• Custom specifications available.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
