1200V 25A IGBT Modules GSK25PJ120E2

1200V 25A IGBT Modules GSK25PJ120E2

3 week ago

2 0

Guangdong Kinwill Electronic Co., Ltd

 2 month year

Product details

25A 1200V IGBT Module -- GSK25PJ120E2

Features：

⚫1200V 25A,VCE(sat) = 1.90V@25A

⚫ SPT（Soft Punch Through）technology

⚫ Lower losses

⚫ Higher system efficiency

⚫ Excellent short-circuit capability

⚫ Square RBSOA

General Applications：

The IGBTs offer lower losses and higher energy for application such as motor drive, inverter and other soft switching applications.

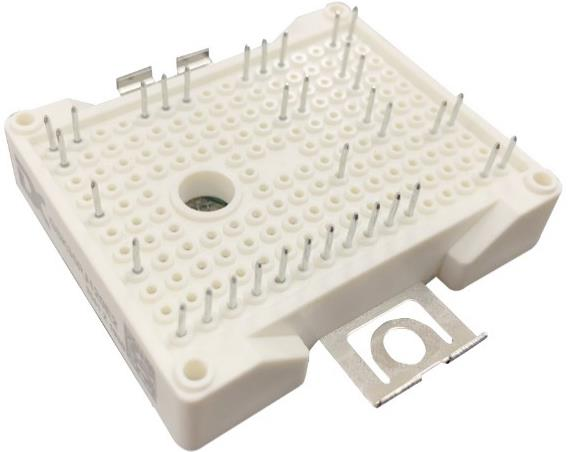

Package:

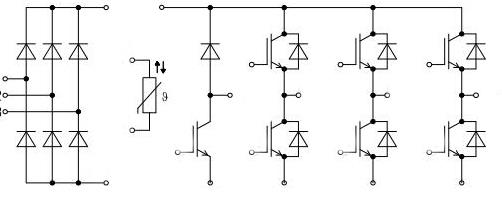

Equivalent Circuit Schematic

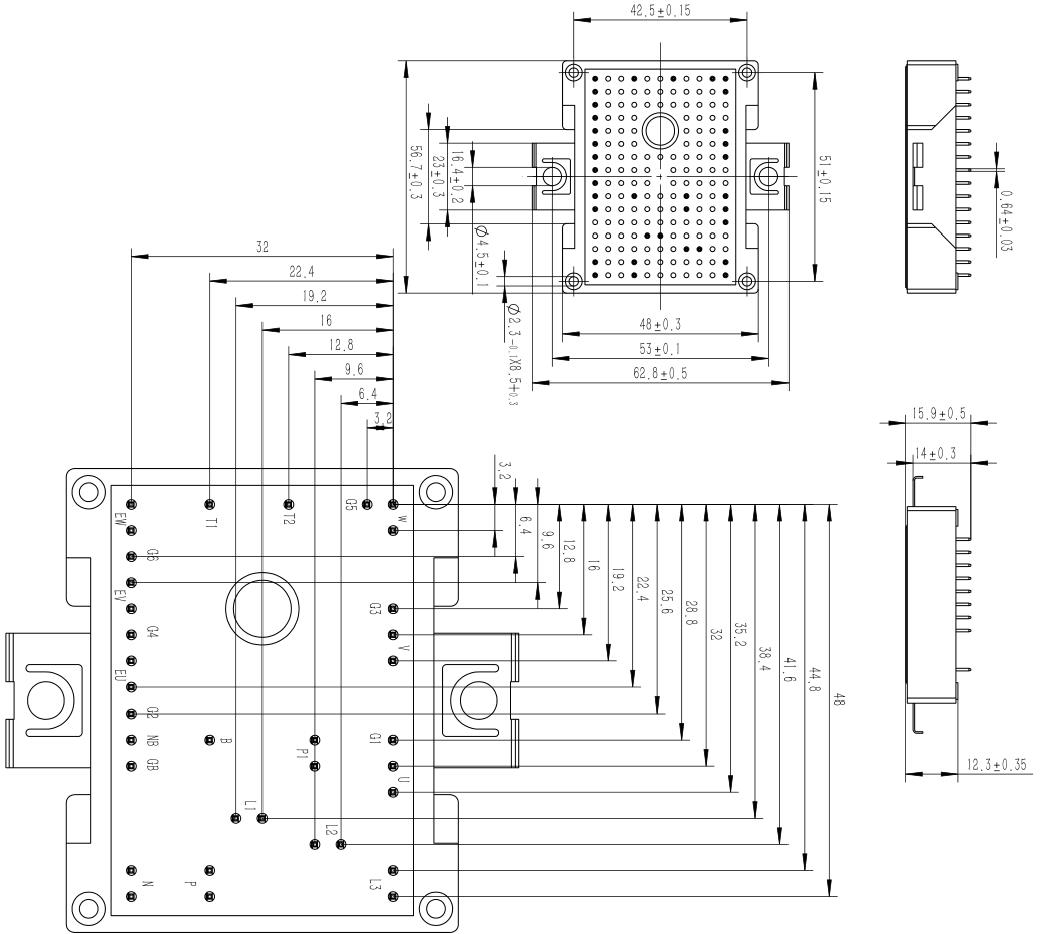

Package Dimension

Dimensions in Millimeters

*IGBT Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package. Designed for high-voltage (up to 6.5kV), high-current (up to thousands of amperes), and high-frequency switching operations, it acts as an efficient electronic switch for controlling large amounts of electrical power in industrial systems.
