Product details
IGBT Power Module
40A 1200V IGBT Module -- LEGM40BF120L4HZ

Applications:
• The inverter
• Motor control and drives
• High-efficiency industrial SMPS
• Uninterruptible power supplies(UPS)

Features:
• VCE=1200V, IC=40A
• Low VCE(sat)
• VCEsat with positive temperature coefficient
• Maximum junction temperature 175℃
• Isolation Type Package

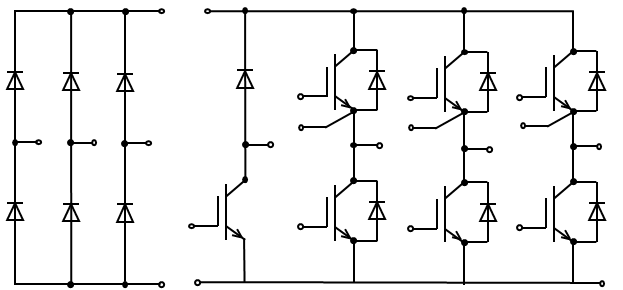

Package Type & Internal Circuit

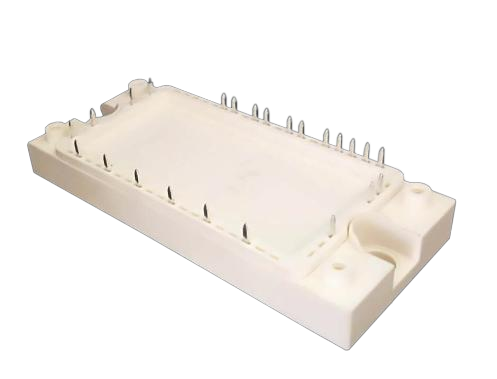

IGBT Module L4LEGM40BF120L4HZ Package

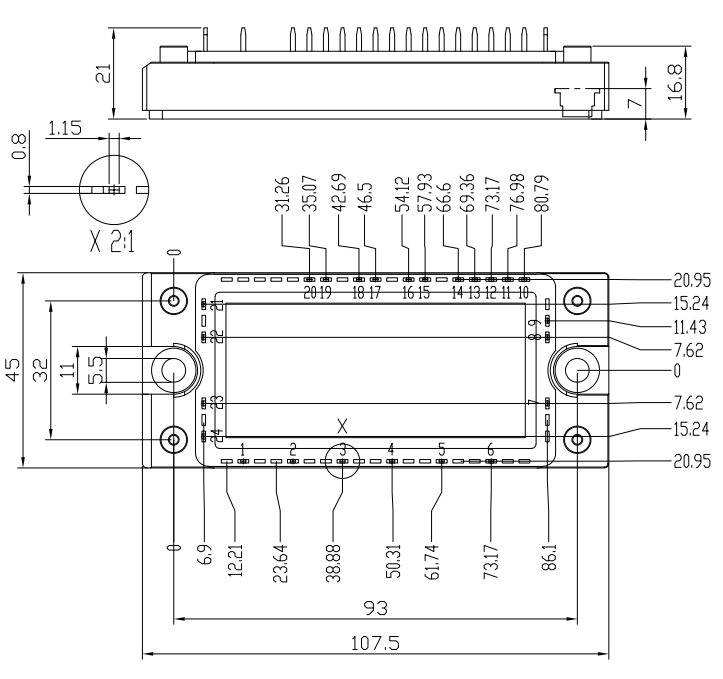

Package Dimensions

LEGM40BF120L4HZ Package Dimensions

An IGBT (Insulated Gate Bipolar Transistor) Power Module is an integrated power semiconductor device that combines multiple IGBT chips, freewheeling diodes, and auxiliary components (e.g., temperature sensors, gate drivers) into a single compact package.
