600V 15A Intelligent Power Modules(IPM)

IPM Module -- BIP60015G-A

General Description

BIP60015G-A is an advanced intelligent power module that has newly developed and designed, to provide very compact and high performance as ac motor drivers mainly targeting low-power inverter-driven applications like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBT. System reliability is further enhanced by the integrated under-voltage lock-out and Over-current protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

Features

 Very low thermal resistance due to using DBC

 600V 15A Three-phase IGBT inverter bridge including control ICs for gate driving and protection

 Divided negative dc-link terminals for inverter current sensing applications

 Single-grounded power supply due to built-in HVIC and bootstrap diode

 Outputting LVIC temperature by analog signal

Applications

 Three-phase inverter drive for small power ac motor control

 Photovoltaic (PV) inverters (solar power)

 Power conversion section in inverter welders.

 Power conversion in energy storage systems

 Home appliances applications like air conditioner and washing machine

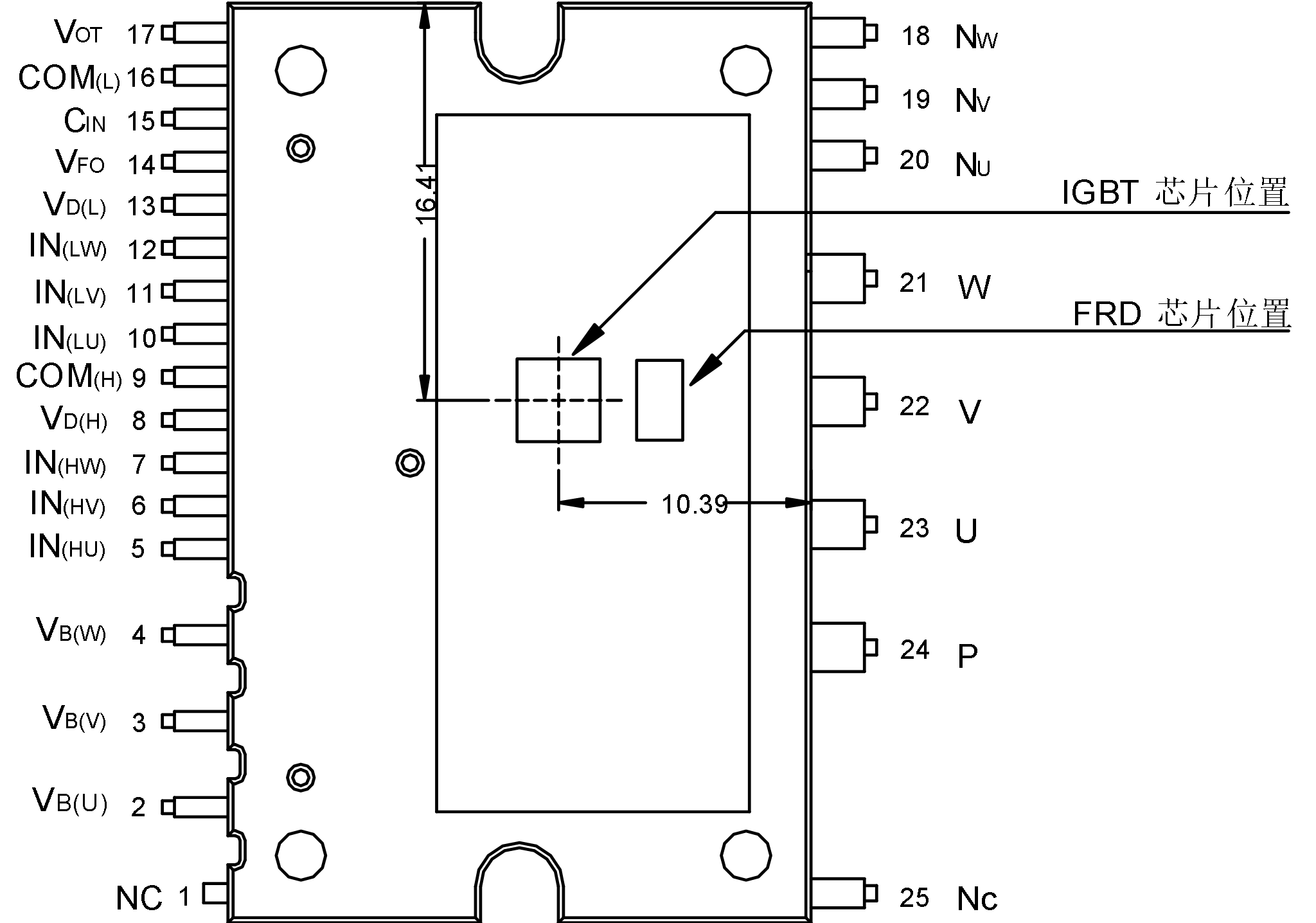

Pin Configuration

*Intelligent Power Module (IPM) is a highly integrated power electronics module, a type of semiconductor device. It monolithically packages power switching devices (such as IGBTs or MOSFETs), a drive circuit, protection circuits (including over-current, over-temperature, and under-voltage lockout protection), and interface circuitry (like level shifting and fault signal output) into a single compact physical unit. The core of its "intelligence" lies in the built-in protection features that can rapidly respond to abnormal conditions (e.g., short circuit, overheating), automatically shut down the power devices, and output a fault signal, significantly enhancing system reliability and safety.
