600V 50A Intelligent Power Modules(IPM)

IPM Module -- BIPN60050C

General Description

BIPN60050C is an advanced Intelligent Power Module (IPM) that has newly developed and designed. This product features a compact package size and strong anti-interference capability, achieving optimal matching with Insulated Gate Bipolar Transistors (IGBTs). Internally, it integrates undervoltage lockout (UVLO) circuits, overcurrent protection circuits, and driving circuits, significantly enhancing system reliability. The built-in High-Voltage Integrated Circuit (HVIC) provides opto-coupler isolation-free driving functionality. The adoption of discrete negative terminals enables independent monitoring of each inverter phase current.This product is well-suited for compact and high-performance AC motor drives, such as low-power inverters and inverter air conditioners.

Features

 Adopts DBC with low thermal resistance design

 600V 50A Three-phase IGBT inverter including control ICs for gate driving and power device protection

 Features discrete negative DC terminals for each phase, enabling independent phase current sensing

 Incorporates a High-Voltage Integrated Circuit (HVIC) and bootstrap diodes, allowing operation with a single power supply

 Provides an insulation rating of 2500 Vrms/minute

Application Fields

 Air conditioners, washing machines and other variable frequency home appliances

 Low-power frequency converter

 Servo control systems

 Three-phase inverters for low-power AC motor drive systems

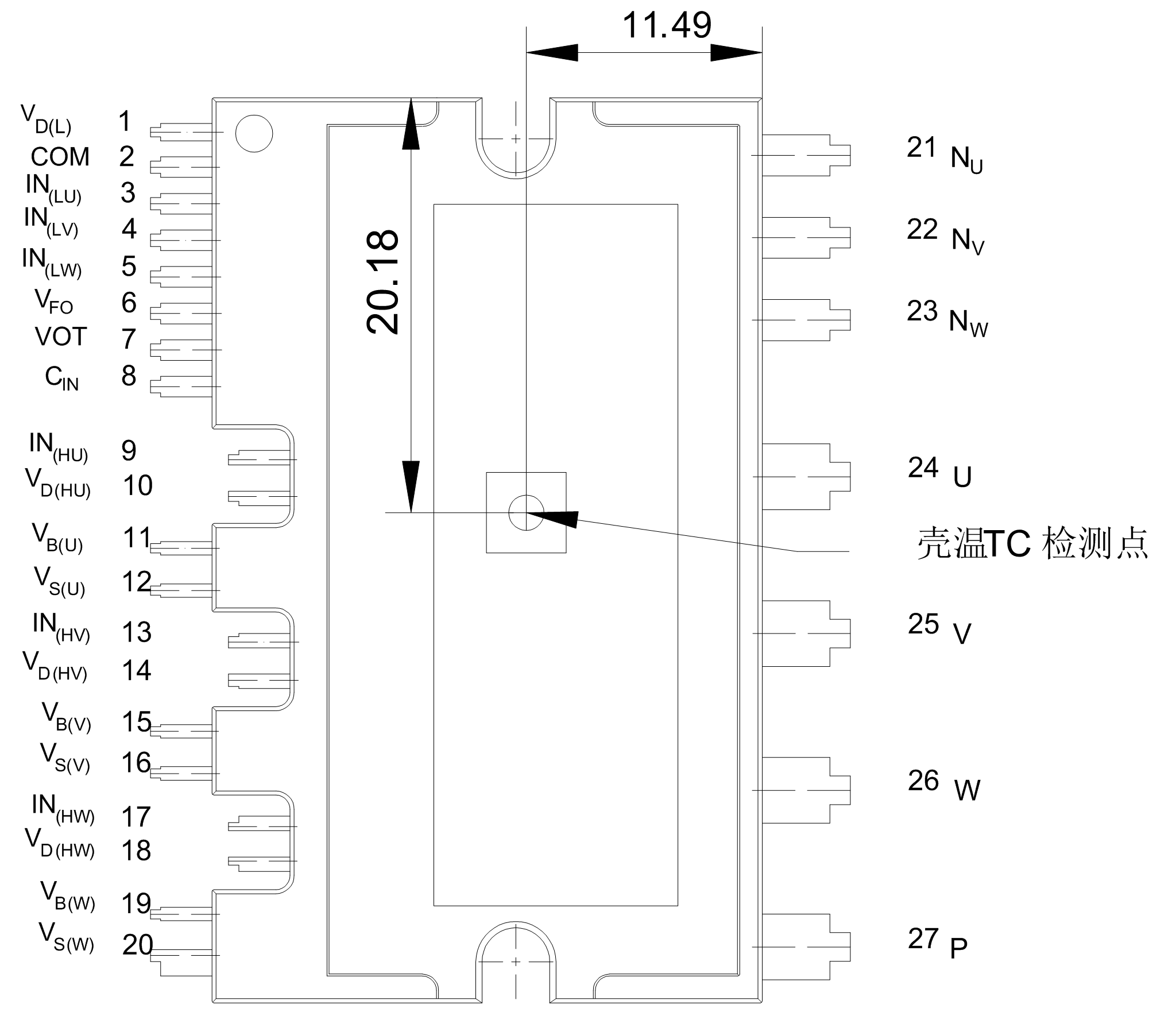

Pin Configuration

*Intelligent Power Module (IPM) is a highly integrated power electronics module, a type of semiconductor device. It monolithically packages power switching devices (such as IGBTs or MOSFETs), a drive circuit, protection circuits (including over-current, over-temperature, and under-voltage lockout protection), and interface circuitry (like level shifting and fault signal output) into a single compact physical unit. Widely used in motor drives & variable frequency control.
