650V 50A 3-phase Motor Driver SAM265M50BS3

650V 50A 3-phase Motor Driver SAM265M50BS3

3 month ago

15 0

Guangdong Kinwill Electronic Co., Ltd

 4 month year

Product details

650V 50A Intelligent Power Modules(IPM)

IPM Module -- SAM265M50BS3

Description

The SAM265M50BS3 is a 3-phase brushless motor driver in which output transistors, a pre-drive circuit, bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. The IC is suitable for driving 3-phase motor of the units such as industrial equipment.

Specifications

● Breakdown Voltage: 650 V

● Output Current: 50 A

Features

● Pb-free (RoHS Compliant)

● Isolation Voltage: 2500 V (for 1 min) (UL-recognized Component)

● Built-in Thermistor

● Built-in Bootstrap Diodes

● CMOS-compatible Input (3.3 V or 5 V)

● Fault Signal Output at Protection Activation

● Shutdown Signal Input

● Adjustable OCP Hold Time

● Protection Functions

Undervoltage Lockout for Power Supply

VBx Pin (UVLO_VBx): Auto-restart

VCCL Pin (UVLO_VCCL): Auto-restart

Overcurrent Protection (OCP): Auto-restart

Applications

For driving 3-phase motors used in industrial equipment such as:

● Commercial Air Conditioner Compressor

● General-purpose Inverter

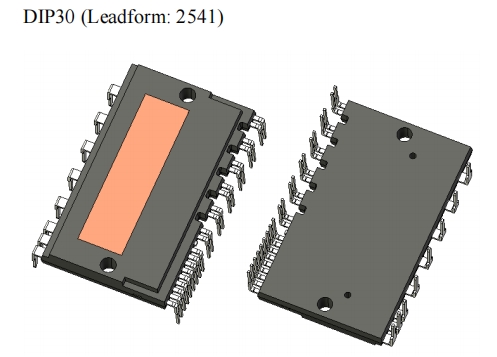

Package

*Intelligent Power Module (IPM) is a highly integrated power electronics module, a type of semiconductor device. It monolithically packages power switching devices (such as IGBTs or MOSFETs), a drive circuit, protection circuits (including over-current, over-temperature, and under-voltage lockout protection), and interface circuitry (like level shifting and fault signal output) into a single compact physical unit. Widely used in motor drives & variable frequency control.
