Product details

600V 10A Intelligent Power Modules(IPM)

IPM Module -- SIM6897M

Description

The SIM6897M is a high voltage 3-phase motor drivers in which transistors, pre-drive circuits, and bootstrap circuits (diodes and resistors) are highly integrated. These products can optimally control the inverter systems of low- to medium-capacity motors that require universal input standards.

Features

● Pb-free (RoHS Compliant)

● Temperature Sensing Function

● Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)

● CMOS-compatible Input (3.3 V or 5 V)

● Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No.: E118037)

● Fault Signal Output at Protection Activation (FO Pin)

● Protections Include:

Overcurrent Protection (OCP): Auto-restart

Undervoltage Lockout for Power Supply

High-side (UVLO_VB): Auto-restart

Low-side (UVLO_VCC): Auto-restart

Thermal Shutdown (TSD): Auto-restart

Selection Guide

● Breakdown Voltage: 600V (IGBT with FRD)

● Output Current: 10A

Applications

For motor drives such as:

● Refrigerator Compressor Motor

● Fan Motor and Pump Motor for Washer and Dryer

● Fan Motor for Air Conditioner

● Fan Motor for Air Purifier

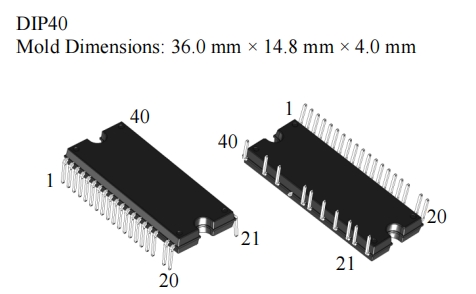

Package

* Intelligent Power Modules(lPM) is a highly integrated power electronics device, a type of semiconductor device. It incorporates high-power switching devices (typically IGBTs or MOSFETs), their corresponding gate driver circuits, various protection circuits (such as overcurrent protection, short-circuit protection, overheating protection, under-voltage lockout protection), and sometimes level-shifting circuitry, all packaged into a single compact module.
