600V 20A 3-Phase IPM Module SIM2-202B

600V 20A 3-Phase IPM Module SIM2-202B

3 week ago

4 0

Guangdong Kinwill Electronic Co., Ltd

 2 month year

Product details

600V 20A Intelligent Power Modules(IPM)

IPM Module -- SIM2-202B

Description

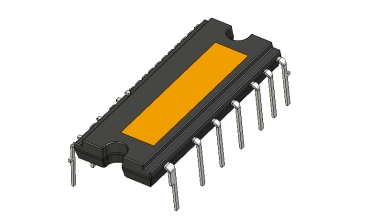

The SIM2-202B is a high voltage 3-phase motor driver in which transistors, pre-drive circuits, and bootstrap diodes with current-limiting resistors are highly integrated. The product can run on a 3-shunt current detection system and optimally control the inverter systems of medium-capacity motors that require universal input standards. The product uses a compact

DIP40 package and supports an output current of 20 A.

Features

● Pb-free (RoHS Compliant)

● Isolation Voltage: 2000 V (for 1 min) UL Recognition Pending (File No.: E118037)

● Temperature Sensing Function

● Built-in Bootstrap Diodes with Current Limiting Resistors (250 Ω)

● CMOS-compatible Input (3.3 V or 5 V)

● Fault Signal Output at Protection Activation

● Protections Include:

Undervoltage Lockout for Power Supply

High-side (UVLO_VB): Auto-restart

Low-side (UVLO_VCC): Auto-restart

Overcurrent Protection (OCP): Auto-restart

Thermal Shutdown (TSD): Auto-restart,

TSD operation temperature ±5 °C

Specifications

● Breakdown Voltage: 600 V

● Output Current: 20 A

Application

For motor drive such as air conditioner compressor motor

Package

DIP40 (Leadform: 2982, 2983)

Pin Pitch: 1.778 mm

Mold Dimensions: 35.7 mm × 14.6 mm × 4.2 mm

* Intelligent Power Modules(lPM) is a highly integrated power electronics device, a type of semiconductor device. It incorporates high-power switching devices (typically IGBTs or MOSFETs), their corresponding gate driver circuits, various protection circuits (such as overcurrent protection, short-circuit protection, overheating protection, under-voltage lockout protection), and sometimes level-shifting circuitry, all packaged into a single compact module.
