Product details

Application-Printed Samples

The structure of the screen printing machine for fabric pieces is very different from that of the screen printing machines for other products. Clothing pieces generally need to be overprinted in multiple colors, and some need to be printed multiple times to achieve the required thickness. In multi-color screen printing machines with more than 4 colors, the turntable structure occupies less space than the linear structure, and the structure of the machine is also more compact.

The turntable screen printing machine for fabric pieces consists of a worktable turntable system, a screen printing system, an operating system, a drying system and a vertical axis. First, place the pieces to be screen printed on the worktable, operate the machine, and the worktable will drive the product to rotate around the vertical axis and rotate to the bottom of the screen printing device. The screen is pressed down and positioned, and the screen is printed. Then the worktable continues to rotate to the next station for heating and drying; then it rotates to the next screen printing station for the second color screen printing, until all colors are printed. The turntable system of the worktable is controlled by a divider, while the descent of the screen and the movement of the scraper are controlled by pneumatics. When placing the fabric, it is generally done manually, and when unloading, it can be done manually, or a robot can be installed to transfer the fabric to the IR tunnel drying furnace.

Full Automatic T-shirt screen printing machine

This is a rotary clothes 6-color manual screen printing machine, suitable for printing 450mm * 650mm about the format of the fabric, paper, clothes; T-shirts and other products.
Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
Workbench coated with solvent glue is recommended for accurate print positioning;
Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
More suitable for heat set printing ink, printing ink thickness, ink, bright;
Configuration of infrared drying device, which will help the plastisol ink is fast drying;
automatically Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.
PLC Operation technical;

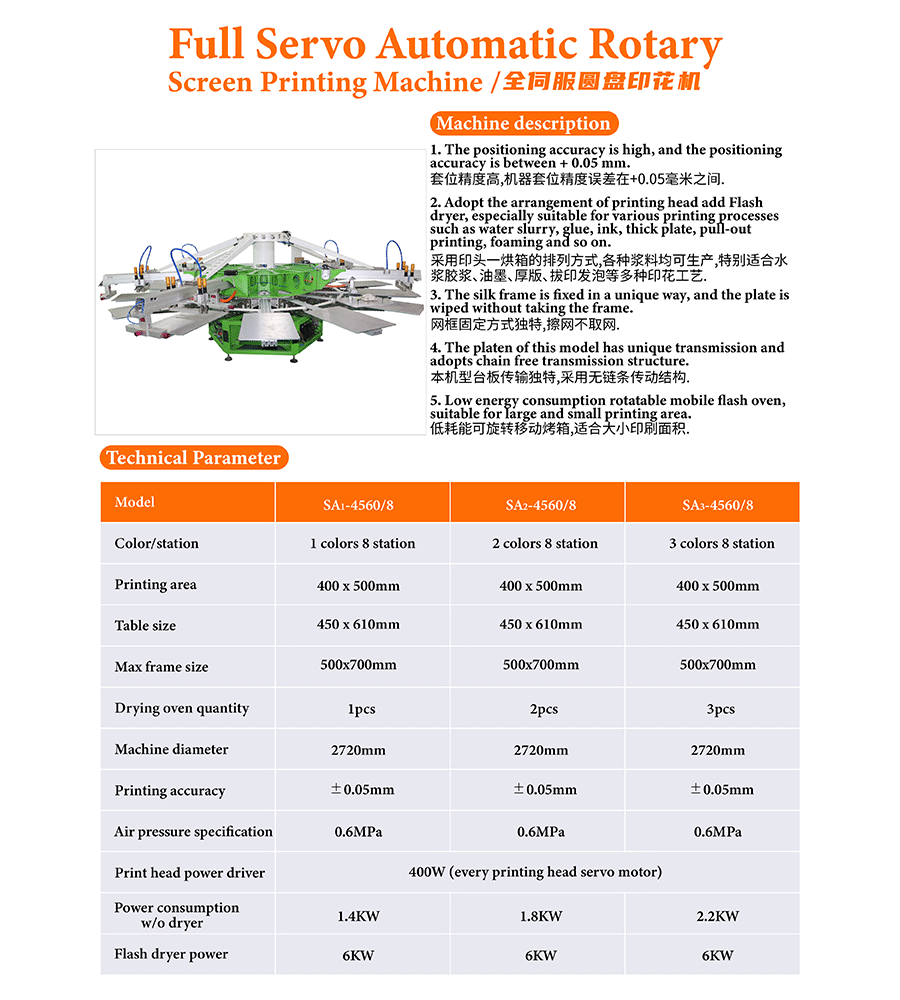

Technical parameters

- Max printing thickness:0-20 MM;
- Net weight: 965KG;
- Max printing area:400X600mm
- Size of working table: 450×650mm;
- Max printing speed:2500cs/H.
- Printing number: 6;
- Drying mode: IR;
- Max height of screen frame: 40mm;
- Max size of screen frame: 550*680mm;
- Wattage of heater: 30KW.
- 3 Phase 380V Power supply;
- 5-7 Bar compress air
- Gross weight: 1010kg
- Wooden case dimension:2430×2430×1850mm;
- 10.9241CBM

Automatic octopus screen printing machine/Advantage

- Total-steel rotating-axis system ensure whirling free and Adaptability.
- High-strength support pole make the machine structure rigidity.
- Six-color screen printing one time, overprint is precision .
- Screen frame can be adjustable according to different objects to be printed.
- Screen frame can be rise up after printing so that printing quality.
- High-stabilization working table ensure non-shaking when printing;
- IR Dryer with machine make the clothes drying fast
- PLC controlling ensure operation more easier
- Full automatically operation process .

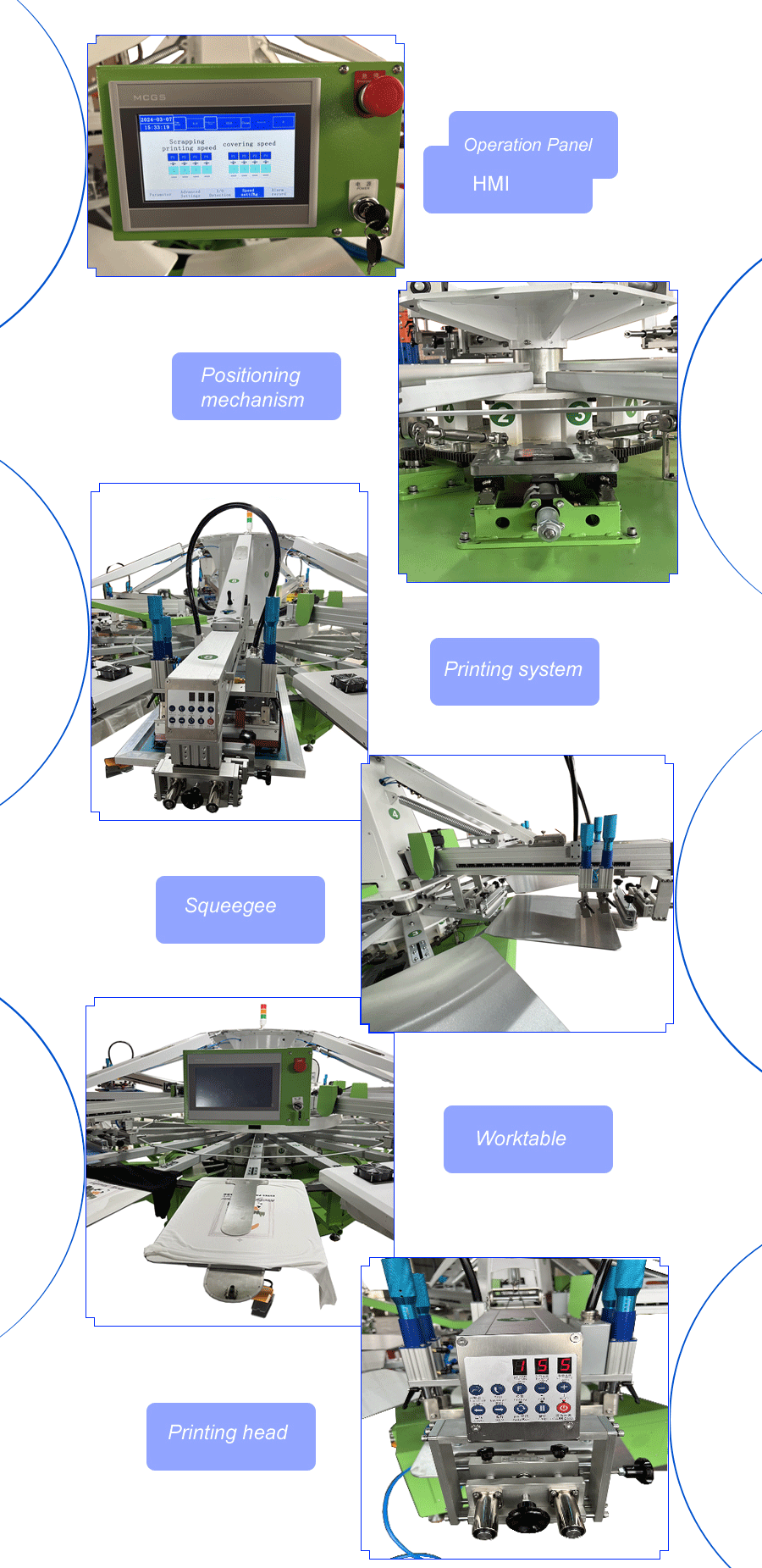

Machine details description

There are many structures of screen printers, but you will find that the structure of screen printers for printing clothing pieces is very different from that of screen printers for printing plastic, paper, glass and other products. Screen printers for fabric pieces are usually designed in a form where the screen and printing head rotate around the central axis, similar to an octopus. We call this type of screen printer an octopus screen printer.

1) The workbench generally uses a flat aluminum plate, on which glue can be applied during printing. The glue can bond the clothing pieces to the workbench to prevent movement;

2) The screen and workbench of a manual screen printer will rotate around the central axis to achieve multi-color screen printing. The automatic screen printing machine table keeps rotating to achieve multi-color screen printing;

3) The printing device generally adopts front and back scraping printing, which makes it easier to place products, check products, and achieve multi-color accurate overprinting;

4) A swing drying device is usually set between printing stations to facilitate the drying of the ink layer and prevent the next color printing from causing ink color bleeding;

5) The drying device on the screen printing machine often only dries the ink layer on the surface and dries it thoroughly. A separate tunnel drying furnace can be used for drying, which can improve production efficiency.

Screen printing machines face fierce competition from printers. Printers have developed rapidly due to the lack of complex processes such as plate making and color matching, but they are still difficult to compare with screen printing machines in terms of three-dimensional patterns and bright colors with very strong surface power. They play a powerful role in clothing printing in the market.
