Cold wrapped anticorrosive tape
Cold wrapped anticorrosive tape is a tape in which the product can be wrapped along the wrapped object at room temperature without the need for heat winding, so it is also called cold wrapped tape. The product is a strip-shaped anti-corrosion material formed by thermally laminating a polyethylene base film with a layer of adhesive layer mainly composed of butyl rubber and co-extruding it. This tape is generally widely used as an external anti-corrosion material for steel pipelines in the field of pipeline anti-corrosion. It is also commonly known as pipeline cold-wrap tape, anti-corrosion cold-wrap rubber hose, pipeline anti-corrosion tape, and polyethylene cold-wrap tape.
Product Features:
1. The unwinding force is uniform, with strong adhesion to the metal surface and good sealing performance. It can effectively prevent the infiltration of water vapor and other corrosive gases. It has the characteristics of anti-ultraviolet penetration and strong anti-squeezing. The primer and the tape layer have good compatibility.
2 .The thickness of the adhesive layer is uniform and it has wide adaptability.
3 .The tape has excellent adhesion and elasticity, enabling the anti-corrosion coating to adapt to the thermal expansion and contraction of the pipeline.
4. It has high tensile strength, appropriate elongation at break, and is convenient for mechanized and manual winding.
5 The adhesive layer is uniform, with strong adhesion, moderate elasticity and good connection and sealing performance.
6. The bonding force between the base material and the adhesive layer is strong, and there is no delamination during storage or construction.
7. It can adapt to the thermal expansion and contraction of pipelines, has excellent heat resistance, strong UV resistance, long service life and wide application range.
8. It has relatively good water resistance and chemical stability.
9. It can be used in conjunction with cathodic protection.
10. High tensile strength, moderate elongation at break, convenient for mechanized and manual winding, convenient for customers to use in construction, saves manpower and material resources, and causes no pollution.
11. We offer a complete range of varieties, specifications and colors, including anti-corrosion tapes (inner tapes), protective tapes (outer tapes), patch tapes, anti-corrosion primers and construction machinery, etc.
twelve High quality, low price and very economical.
Product application scope:
Cold-wrap tape is widely used for the external anti-corrosion of steel pipelines in industries such as petroleum, chemical engineering, natural gas, power, urban gas, drainage, and sewage, as well as for the anti-corrosion and repair of straight pipes, elbows, storage tanks, and special-shaped parts of drainage pipelines.
Product application diagram:

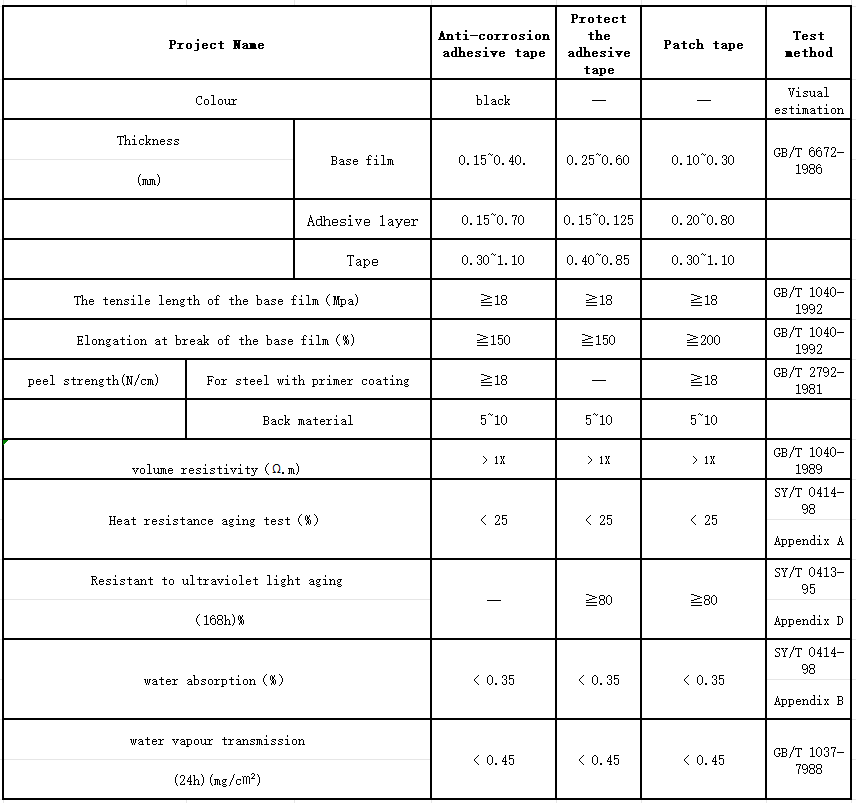

Note:
1.The allowable deviation of the adhesive tape thickness is ±5% of the tape thickness.
2. The heat aging test refers to the rate of change in the tensile strength of the base film, the elongation at break of the base film, and the peel strength of the sample after 2400 hours of heat aging at 100℃.
3.The UV aging resistance index refers to the retention rate of tensile strength and elongation at break after the test.

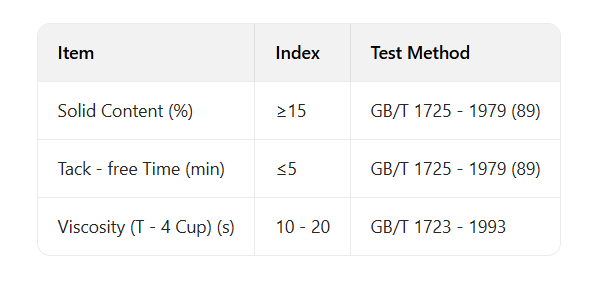

Primer coating performance

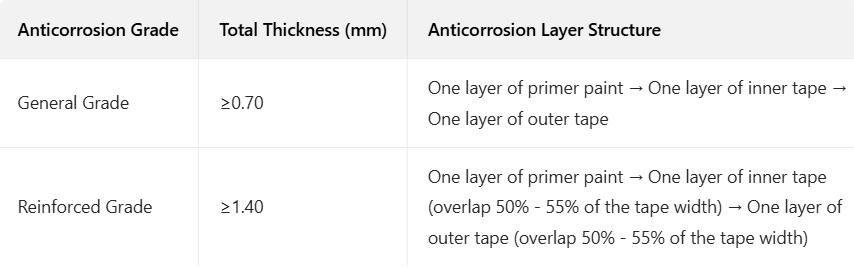

Grade structure of anti-corrosion coating for adhesive tape
Note:
1.For ordinary anti-corrosion coatings, when the width of the adhesive tape is less than or equal to 75mm, the lap width can be greater than or equal to 10mm. When the adhesive width is greater than 75mm and less than 230mm, the lap width can be greater than or equal to 15mm. When the adhesive width is greater than 230mm, the lap width can be greater than or equal to 20mm.
2. The allowable deviation of the adhesive tape width is ±5% of the adhesive tape width.
3.The thickness of the anti-corrosion coating at the weld seam should be no less than 85% of the designed thickness.
4. For special environments and special sections, the structure of the anti-corrosion coating shall be determined separately by the design.

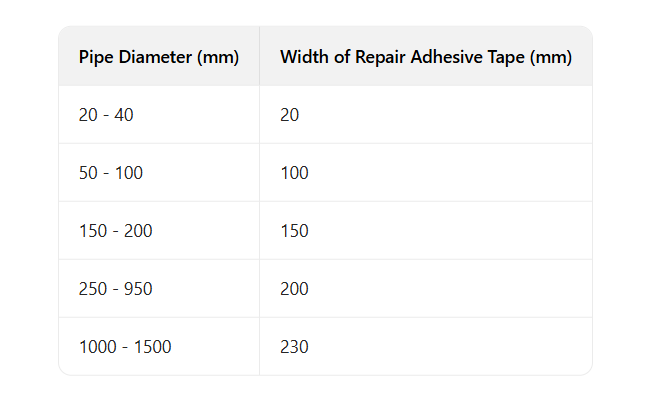

The width of the joint adhesive tape is preferably as shown in the table
Note: The performance of the anti-corrosion coating at the joint should not be lower than that of the pipe body.
