PTFE Braided Straight Tube

Product Overview

The PTFE braided straight tube consists of a PTFE tube and a single - or double - layer outer braiding of stainless steel wires. As a basic - level PTFE braided tube, it finds extensive applications in the automotive industry, fluid handling, chemical transportation, paint, pharmaceutical, food and beverage processing, cosmetics, and general applications.

Product Composition

Inner Tube: Made from 100% polytetrafluoroethylene (PTFE) resin, it contains no pigments or additives. This ensures excellent chemical resistance, high - temperature stability, and purity, making it suitable for even the most demanding fluid transfer tasks.

Braiding Layer: Composed of AISI 304 or 316 stainless steel. The stainless - steel braiding provides enhanced mechanical strength, abrasion resistance, and pressure - bearing capacity, protecting the inner PTFE tube and extending the service life of the entire assembly.

Optional Antistatic Property: All braided tubes can be enhanced with antistatic (carbon - containing) performance. This feature is crucial in environments where static electricity may pose risks, such as in the handling of flammable chemicals or electronic components.

Notes

When placing an order, please specify the color requirement.

Our company can provide special packaging, dimensions, and colored bellows according to customer needs. Whether you need customized lengths, unique packaging for easy storage and transportation, or specific colors to match your equipment or production line, we can accommodate your requests.

All the above data are for common values and do not include custom - sized products. For custom - sized tubes, specific performance parameters and technical details will be determined based on the customized specifications.

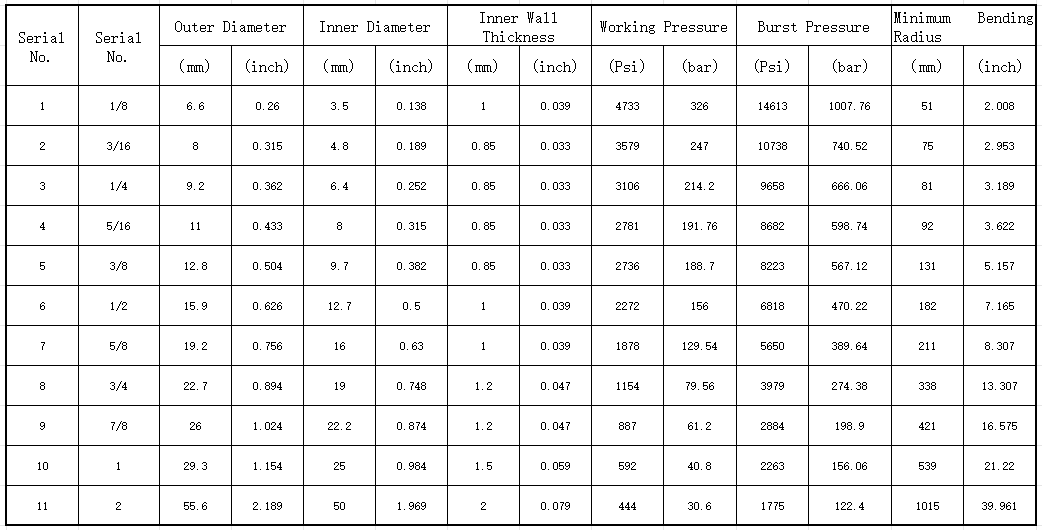

Product Specification
