WAG-PA corrugated pipe

WAG-PA corrugated pipe

2 month ago

6 0

Dong Guan KE YU New Material Technology co.,LTD

 8 year year

Product details

WAG-PA corrugated pipe

The WAG-PA eco-friendly PA flame-retardant corrugated pipe is made from environmentally friendly polyamide. This product is environmentally friendly and reliable, with ideal flame-retardant effect, high mechanical load-bearing strength, good flexibility, excellent bending performance, anti-twisting, wear resistance, acid, alkali, inorganic salt, lubricating oil, etc. It is an ideal product for insulation protection of lines, water supply and gas supply.

We can customize V0 grade flame-retardant and split corrugated pipes for customers.

Product application

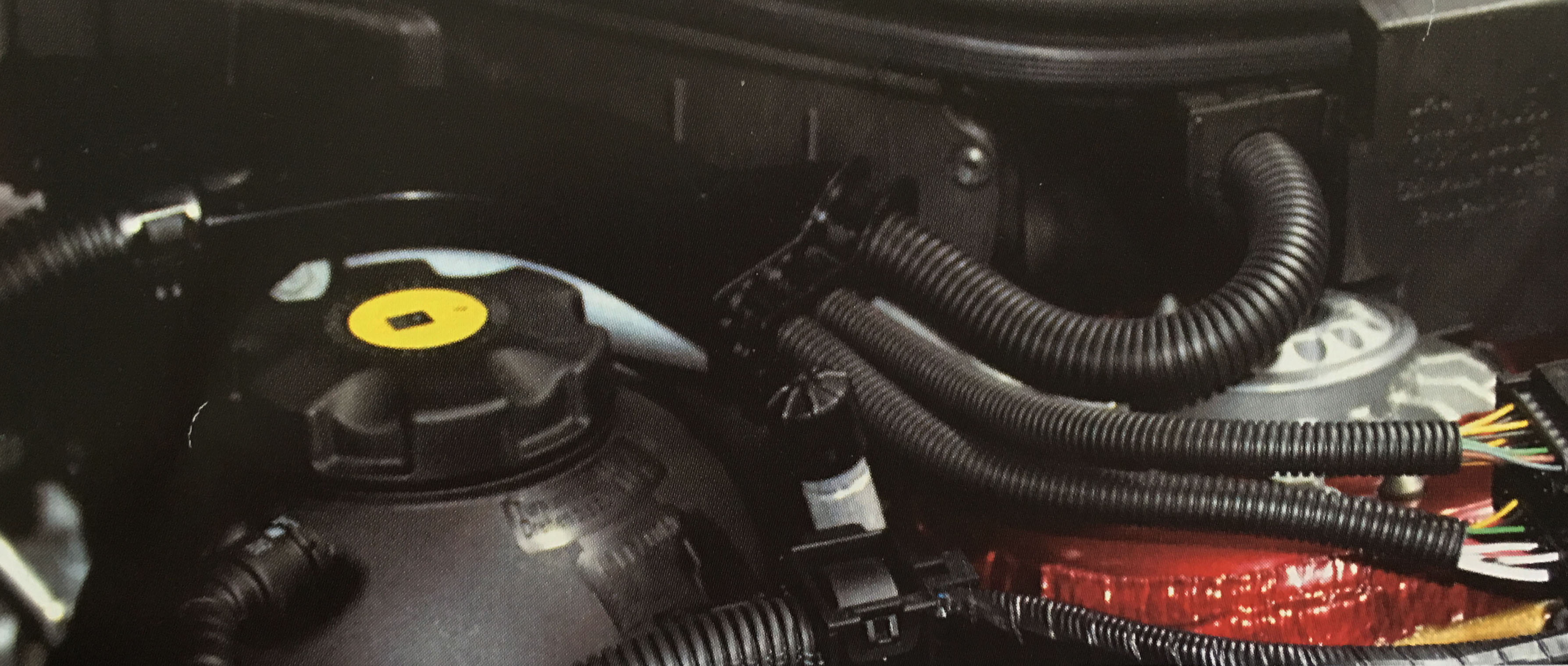

The WAG-PA environmentally friendly flame-retardant corrugated pipe products are widely used in machine tools, mechanical engineering, shipbuilding, communication lines, power engineering, electronic appliances, rail transit and industrial automation, etc.

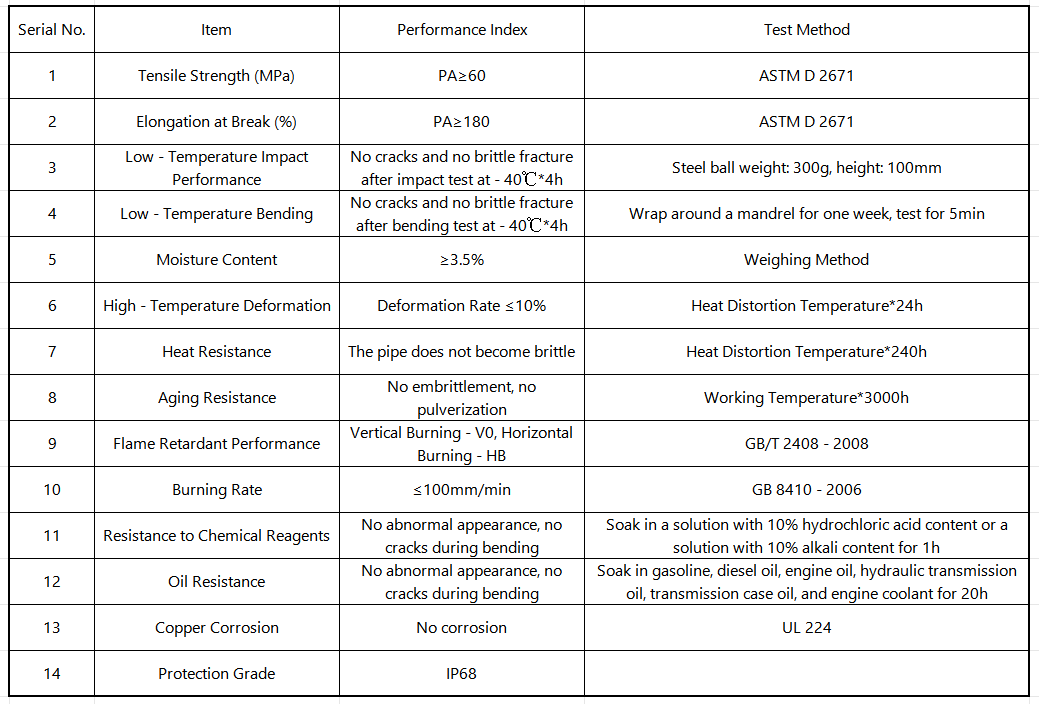

Technical parameters:

Note: PA corrugated pipes are available in four temperature grades: 105℃, 125℃, 135℃, and 150℃. Please choose according to your needs.

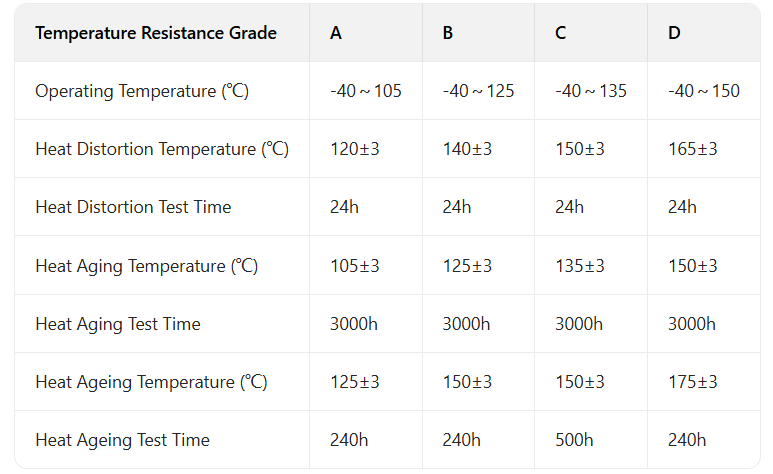

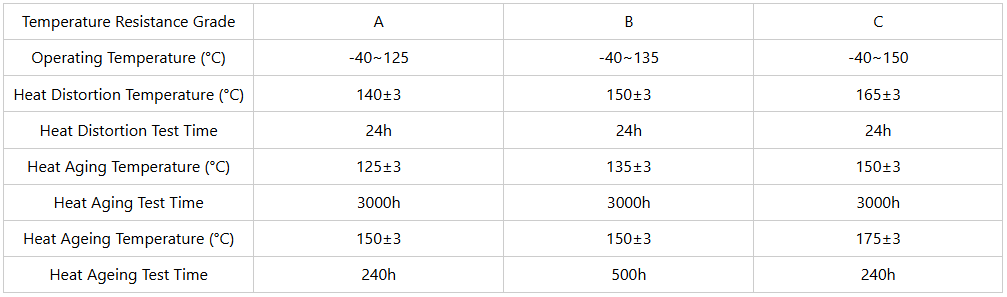

Comparison table of temperature resistance grade * Working temperature * heat distortion temperature * heat aging temperature * heat aging temperature and test time:

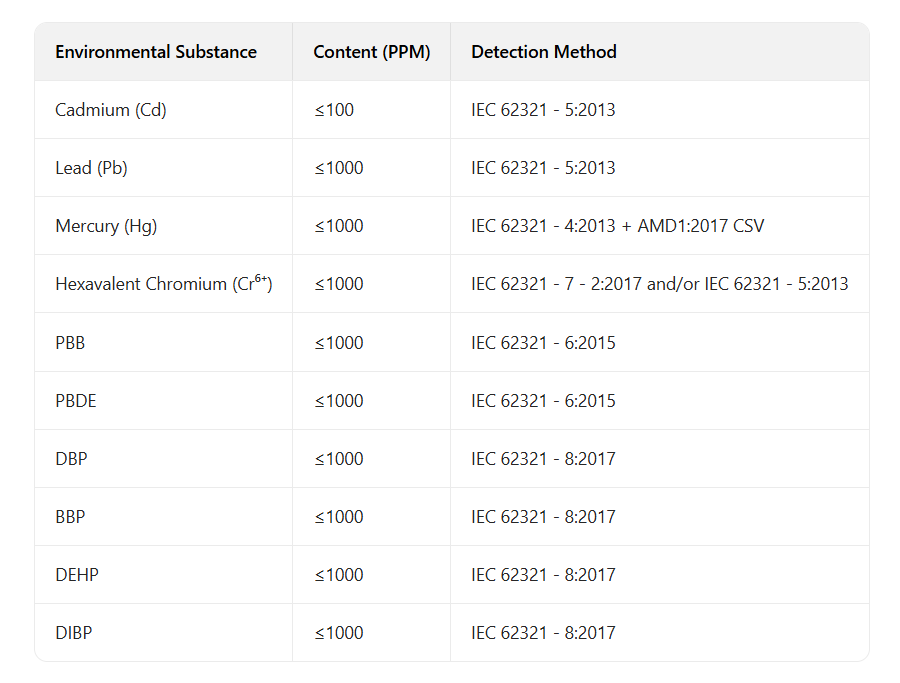

Environmental protection standard: Complies with EU RoHS2.0

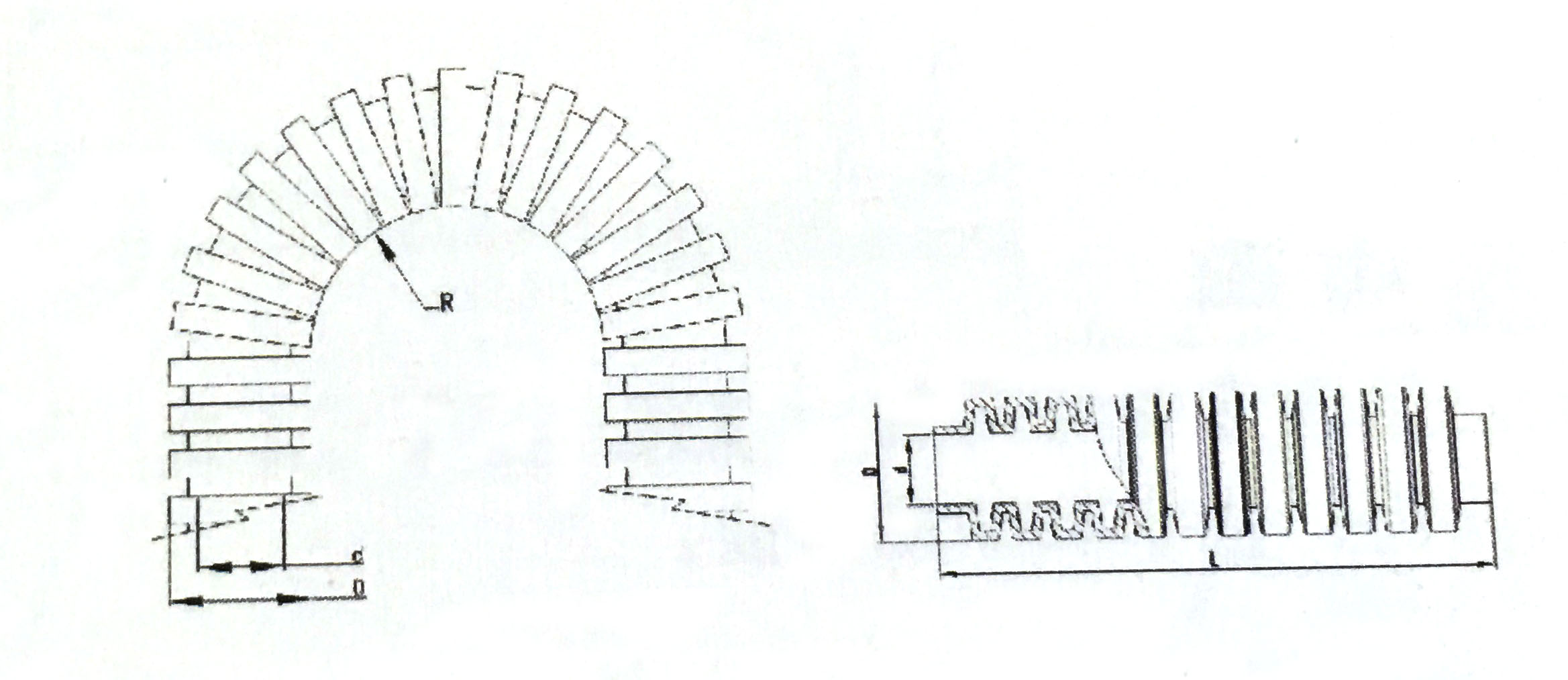

Product drawing:

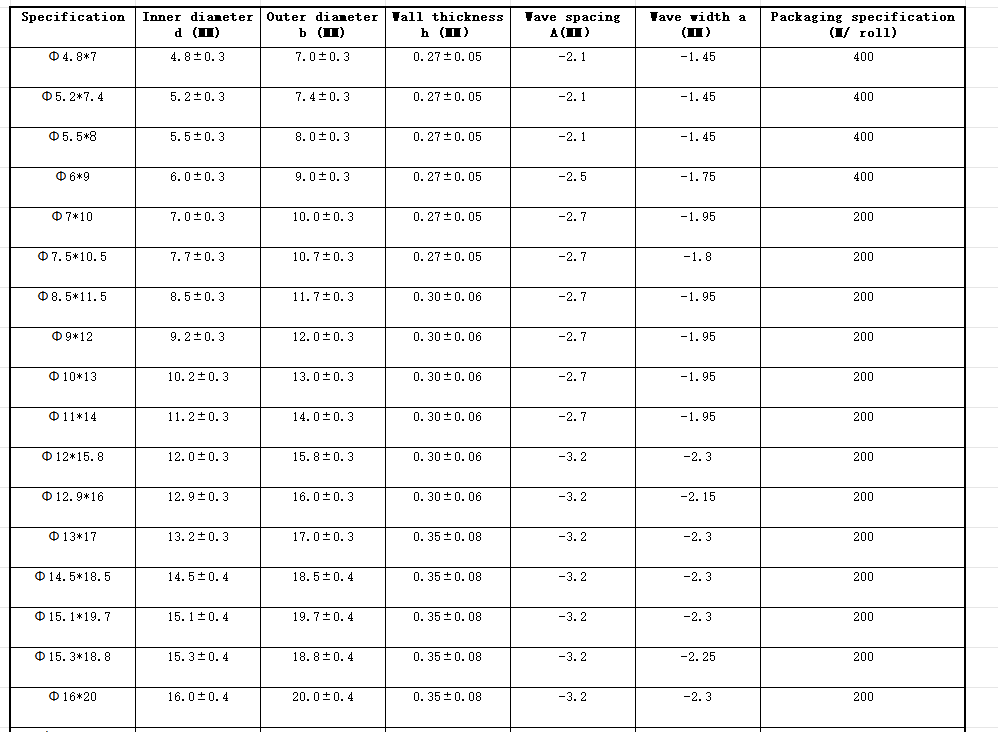

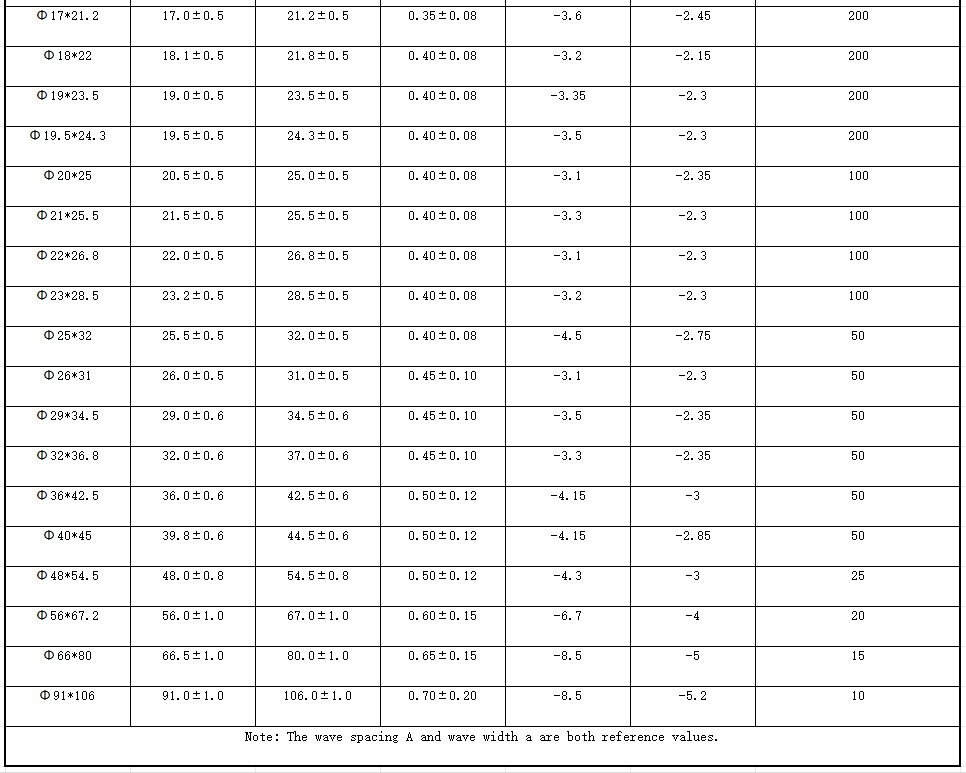

Specification and Dimension table:

Color: Black/orange (standard), red, green, blue, yellow, and other colors can be customized. Cuts can also be made as required.
