H-TC50KMA automatic heat transfer machine //Usage and characters

Automatic hot stamping machine for plastic bottle caps is a hot stamping machine specially designed for hot stamping metal lines of various colors on bottle caps. The hot stamping machine adopts a turntable structure, and the hot stamping roller contacts the bottle cap from the side, with strong and uniform pressure.
The hot stamping machine can automatically load and unload the material. The feeding manipulator transfers the bottle caps on the conveyor belt to the turntable in turn, and the turntable turns to transfer the bottle caps to the hot stamping position. The silicone roller moves and compresses the bottle under the drive of the cylinder. When the cap rotates, the bronzing paper will be transferred to the mouth of the bottle cap under the action of pressure and heat, and the stamped bottle cap will continue to rotate with the turntable until it is sucked by the blanking suction cup and sent to the conveyor belt at the unloading position.

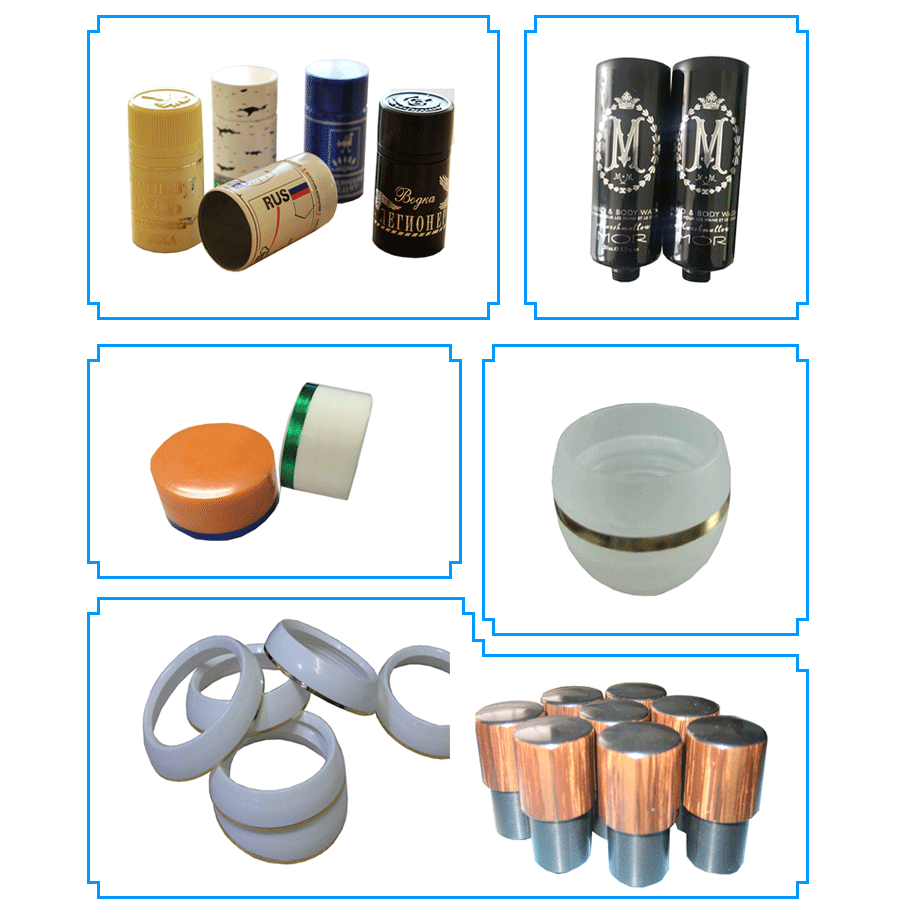

Application-printed Samples

116

Data sheets

H-TC50KMA automatic bottle cap foil heat transfer Machine //Structure
Working table	10 stations rotating workbench ;
Stamping Head drive	Pneumatic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Front-back of stamping head
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Stamping roller size	Width: 100mm, diameter: 125mm.
H-TC50KMA automatic bottle caps foil heat transfer Machine //Parameter
Technical parameters	Diameter of stamping roller :plate: 125×100 mm; Heater Wattage: 2000W; Stamping height adjustable range =100 mm; Max. stamping diameter: 50mm Stamping temperature adjustable range: 0 - 250oC; Stamping foil pulling length: =150 mm; Stroke of stamping plate: 50 mm; Max. stamping pressure: 600 kgf (7bar); Max. stamping speed: 1100 pcs/hr; Air consumption: 100 litre/min; Dimensions: 1450 x1450 x 1300 mm; Weight: 465 Kg;
Works supply	1 Phase 220V Power supply.
Package list	Package dimension:1.5×1.5×1.35m Gross weight: 439KG; CBM:3.296176
H.S.Code	8443198000
Certificate	CE

Details-advantage

The program controller, easy to operate;
10 stations rotating workbench,
Uniform heat transfer, plastic roller rotation, suitable for cylinder heat transfer can be achieved by installing a different fixture;
High-precision photoelectric cell tracking control for easy positioning thermal transfer;
Non-location requirements of stamping using a timed feeder by the length of the rolls can be flexibly adjusted;
Adjustable worktable, easy to transfer the workpieces of different lengths;
The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
The height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect;
Bench design of the patented floating bodies, in accordance with the outline of the product line floating in the transfer process to maintain the Cots thermal transfer film or foil paper is closely attached to the surface of the product, and profiling Hot Stamping and Heat Transfer .
Robot downloading, speed more fast.
