Beam Welded Metal Alloy SMD Resistor

E-beam Welding Alloy Resistor for current sensing, surface mount (SMT) package, ultra-low resistance value.
Features excellent stability and passes AEC-Q200 automotive-grade reliability testing.

Product Features:

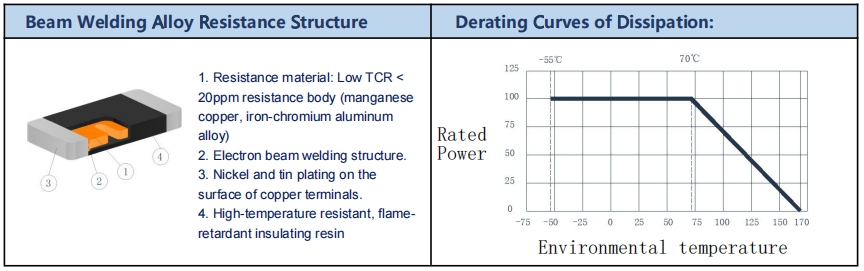

Features electron-beam welded alloy resistors and pure copper electrodes, making it ideal for current sensing applications.
Excellent consistency, high reliability and stability, and strong pulse withstand capability.
Special welding process, all-metal construction, and encapsulation with high-temperature-resistant resin for superior weather resistance.
Extremely low thermal EMF (Electromotive Force).
Ultra-low parasitic inductance and fast response speed, suitable for high-frequency AC current detection.
Compliant with AEC-Q200 automotive-grade reliability testing.
Meets environmental requirements such as RoHS compliance.
Supports custom specifications.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
