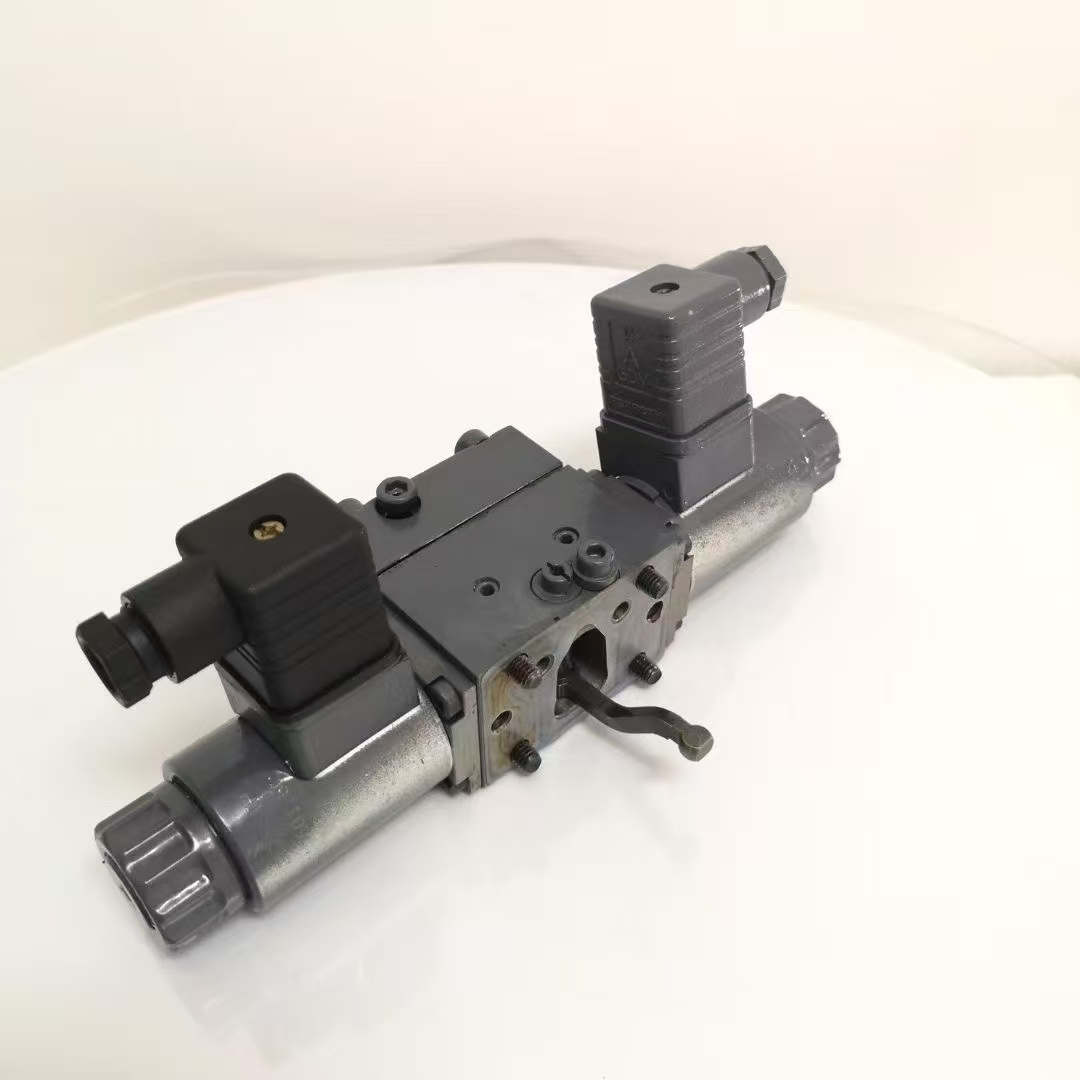

Rexroth A4VG/A10VG Series Hydraulic Pump Control Valves Overview
The Rexroth A4VG and A10VG series hydraulic pumps are widely recognized in the industrial and mobile hydraulic sectors for their high - performance capabilities. The control valves associated with these pumps play a crucial role in regulating the pump's operation, ensuring efficient and reliable performance.
Types of Control Valves and Their Functions
1. EZ (Electronic Proportional Pressure Control Valve)
• Function: This valve is designed to provide precise electronic proportional pressure control. It can adjust the output pressure of the hydraulic pump in proportion to an electrical input signal. For example, in a precision - controlled industrial machine, the EZ valve can be used to vary the clamping force according to the specific requirements of different workpieces.
• Advantages: Offers high - precision control, allowing for fine - tuning of pressure settings. It also enables remote control and automation, which can improve the overall efficiency and accuracy of the hydraulic system.
2. EP (Electro - Hydraulic Proportional Pressure Control Valve)
• Function: Similar to the EZ valve, the EP valve uses electro - hydraulic principles to control the pressure of the hydraulic pump. It combines electrical and hydraulic components to achieve proportional pressure regulation. In mobile hydraulic applications such as construction equipment, the EP valve can be used to adjust the pressure of the hydraulic cylinders for different operating conditions, like lifting heavy loads or performing fine - movement tasks.
• Advantages: Provides reliable and accurate pressure control with the flexibility of electro - hydraulic operation. It can handle a wide range of pressure requirements and is suitable for both stationary and mobile applications.
3. GD (Load - Sensing Control Valve)
• Function: The GD valve is a key component in load - sensing hydraulic systems. It senses the pressure required by the load and adjusts the pump's output pressure accordingly. In a hydraulic excavator, for example, when the bucket is digging into the ground, the GD valve detects the increased load pressure and signals the pump to increase its output pressure to meet the demand, while maintaining optimal efficiency.
• Advantages: Improves energy efficiency by only supplying the pressure needed for the load, reducing energy waste. It also provides better system response and control, enhancing the overall performance of the hydraulic system.
4. HWDL (High - Pressure, Low - Flow Control Valve)
• Function: This valve is designed to handle high - pressure conditions while maintaining a relatively low flow rate. It is often used in applications where precise control of a small amount of high - pressure fluid is required, such as in hydraulic presses for metal forming or in high - pressure testing equipment.
• Advantages: Offers reliable operation under high - pressure conditions, ensuring the stability and accuracy of the hydraulic process. Its low - flow characteristic makes it suitable for applications where excessive flow could cause problems.
5. HW (High - Pressure Control Valve)
• Function: The HW valve is used to control high - pressure hydraulic systems. It can regulate the pressure of the fluid in the system to prevent over - pressurization and ensure safe operation. In a hydraulic system for a large industrial press, the HW valve can be set to a maximum pressure limit to protect the equipment from damage.
• Advantages: Provides reliable pressure control in high - pressure applications, enhancing the safety and durability of the hydraulic system. It can be adjusted to different pressure settings according to the specific requirements of the application.
6. DA (Direct Acting Pressure Control Valve)
• Function: The DA valve is a direct - acting pressure control device that responds quickly to pressure changes. It can be used to maintain a constant pressure in a hydraulic system or to limit the maximum pressure. In a simple hydraulic circuit, the DA valve can be installed to prevent the pressure from exceeding a certain value, protecting other components in the system.
• Advantages: Has a fast response time, making it suitable for applications where quick pressure regulation is required. It is also relatively simple in design and easy to install and maintain.
7. DW (Differential Pressure Control Valve)
• Function: The DW valve controls the differential pressure between two points in a hydraulic system. It can be used to maintain a constant pressure difference, which is important in some applications such as heat exchangers or filtration systems. In a hydraulic cooling system, the DW valve can ensure a consistent pressure drop across the heat exchanger, optimizing the cooling performance.
• Advantages: Helps to maintain stable operating conditions in systems where differential pressure is critical. It can improve the efficiency and reliability of the hydraulic system by ensuring proper flow and pressure distribution.
8. Charge Pressure Valves
• Function: Charge pressure valves are used to maintain a minimum pressure in the hydraulic system, especially in closed - loop systems. They ensure that there is always enough fluid pressure to prevent cavitation and maintain proper lubrication of the pump and other components. In a hydrostatic transmission system, the charge pressure valve supplies a small amount of fluid at a constant pressure to the low - pressure side of the loop.
• Advantages: Prevents system damage caused by low pressure, such as cavitation and wear. It also helps to maintain the overall performance and efficiency of the hydraulic system.
9. Flush Valves
• Function: Flush valves are used to remove contaminants and heat from the hydraulic system. They typically divert a small amount of fluid from the main circuit to a cooling or filtration device. In a high - performance hydraulic system, the flush valve can help to maintain the cleanliness and temperature of the fluid, extending the service life of the components.
• Advantages: Improves the reliability and longevity of the hydraulic system by removing harmful contaminants and controlling the fluid temperature. It can also reduce maintenance costs and downtime.
Application Areas
The Rexroth A4VG/A10VG series hydraulic pump control valves are used in a wide range of applications, including:
• Mobile Hydraulics: Construction equipment (excavators, loaders, bulldozers), agricultural machinery (tractors, harvesters), and material handling vehicles (forklifts, cranes).
• Industrial Hydraulics: Plastic injection molding machines, metal forming presses, machine tools, and hydraulic power units.
• Marine and Offshore: Ship propulsion systems, winches, and deck machinery.
