Automatic turntable hot stamping machine for flying disc

7 month ago

16 0

 10 year year

Product details

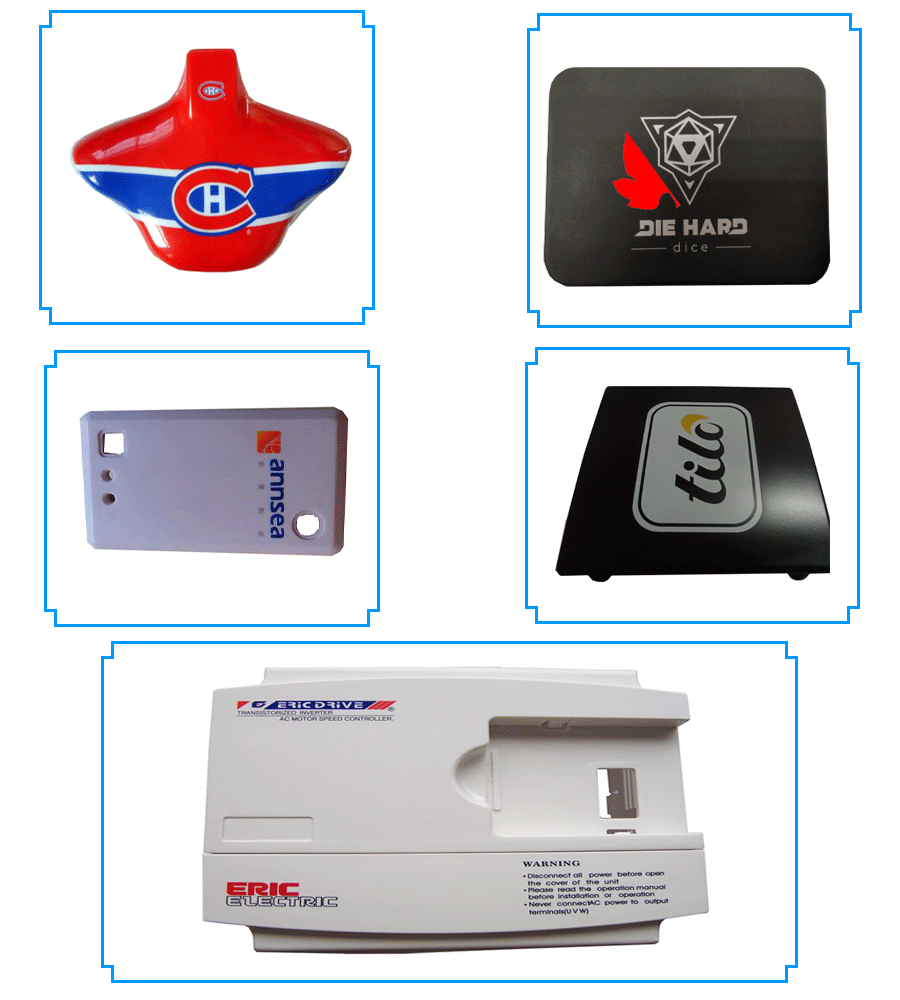

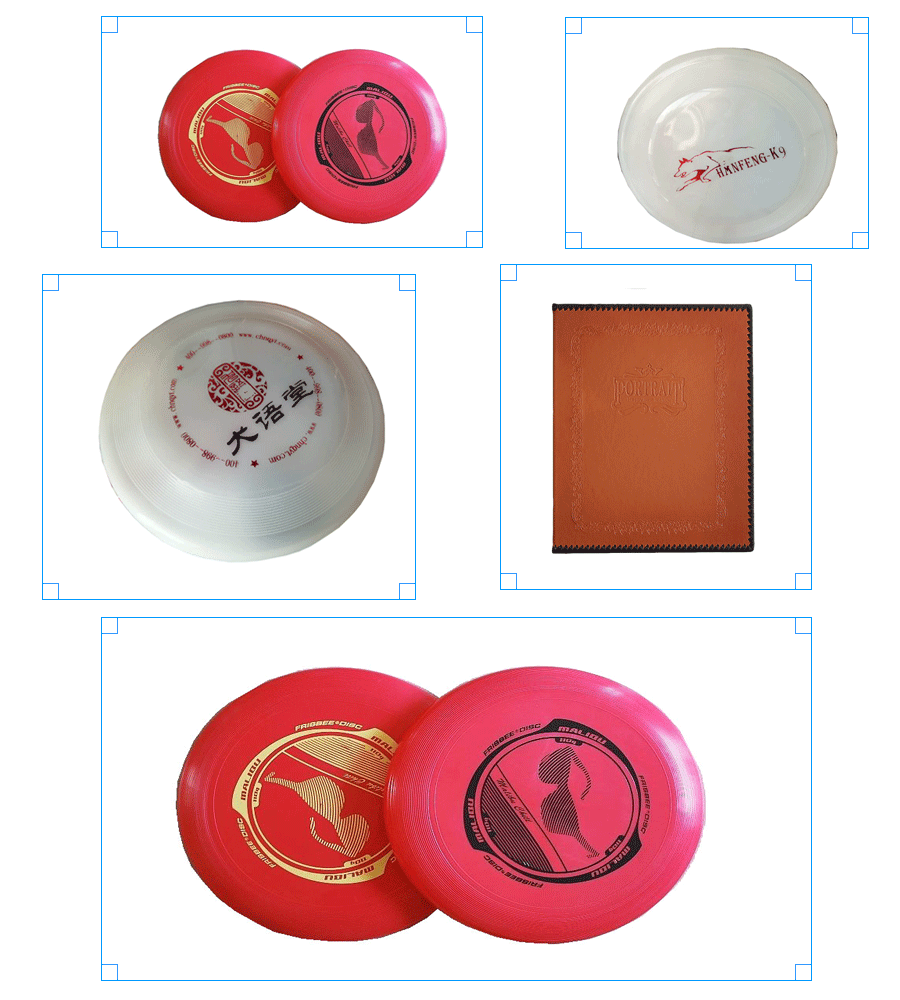

Hot foil stamping samples show

The Turntable three heads automatic hot stamping machine is a fully automatic turntable gilding machine designed specifically for hot stamping golf plastic discs in one to three colors. It utilizes a flat turntable structure with three hydraulic hot stamping units arranged around a 1-meter diameter aluminum rotating platform. The rotating platform is equipped with eight workstations for mounting fixtures and securing the plastic discs. Each time a disc enters a hot stamping unit, it is stamped with a single color of hot foil. It offers precise overprinting, stable operation, and easy operation.

This fully automatic hot stamping machine is specifically designed and manufactured for various plastic sports discs. It consists of loading and unloading conveyors, a flat turntable worktable, a hydraulic hot stamping device, an automatic winder, a touchscreen operator panel, and a temperature control system. The operator places the disc onto the loading conveyor. At the loading position, it is gripped by a robotic arm and placed on a dedicated fixture on the turntable worktable. The turntable rotates, and the pressure plate cylinder presses down to the desired position. The turntable continues to rotate, completing the three-color hot stamping process simultaneously. Each hot stamping unit can independently adjust the vertical, front-to-back, and left-to-right position of the hot stamping plate to ensure precise overprinting of the three colors of hot stamping foil. Each hot stamping unit also features an independent temperature control system to ensure consistent foil temperature. After hot stamping, the plastic disc finally rotates to the unloading position, where it is gripped by a robotic arm and transferred to the unloading conveyor. The entire machine is controlled by a PLC and touchscreen, allowing for digital management of all parameters. The hot stamping unit is hydraulically driven, generating tremendous pressure and is suitable for various plastic sports discs made of polypropylene and polyethylene.

Technical parameters:

Width of Feeding Conveyor and unloading conveyor : 300mm.

Round plate diameter: 1400mm,

Round plate motor wattage: 3000W

Station number: 8pcs.

Heating wattage: 3500W Machine total wattage:13500W

Stamping plate size： 250mm*220mm

Max stamping size: 200mm*200mm

Max pressure: 2tons

Max stamping height: 50mm;

Stamping speed : 15-20pcs/Min

Power supply： 3∅ 380V 50HZ 11.0KW

Air pressure： 5---7bar

Machine outer size: 1920*2800*2160mm, Net weight: 1600kg.

Package size: 2100*2400*2350mm, Gross weight: 2000kg.

Details photo

• Loading Conveyor: Automatically transports the plastic discs to be hot-stamped to the designated location. The conveyor speed is adjustable. When a disc reaches the loading position, the loading robot is activated.

• Loading Robot: Grabs the plastic discs from the conveyor and precisely places them on the fixture on the turntable worktable, replacing manual loading and ensuring accurate and consistent positioning.

• Turntable: A rotating worktable controlled by a precision cam divider. It typically has eight stations and can carry the plastic discs through the various hot stamping steps, enabling continuous production.

• Hydraulic Hot Stamping Device: Provides stable pressure to drive the hot stamping head into contact with the workpiece, ensuring a clear and secure hot stamping pattern.

• Three-Color Hot foil Stamping Head: Each head is compatible with three different colors of hot stamping foil, enabling multi-color hot stamping effects on workpieces, enriching product decoration.

• Unloading Robot: Removes the finished foil from the turntable and places it on the unloading conveyor, whose speed can also be adjusted.

The three-color fully automatic hot foil stamping machine is controlled by a touchscreen panel, allowing real-time adjustments to the foil pressure, temperature, and time based on the foiling status. Each foil head can be adjusted vertically, front-to-back, left-to-right, and at different angles to suit overprinting requirements, ensuring precise alignment of the three colors of foil to meet overprinting requirements.

Machine structure

Machine advantage

Adjustable loading conveyor speed to accommodate varying hot stamping speeds;
Suction cup robot for loading, accurately placing products on the fixture;
Pressing plate mechanism for vertical positioning of products;
The turntable is controlled by a precision divider, ensuring smooth operation and precise positioning;
Precision temperature control device, with a temperature error of less than 3 degrees;
The hot stamping head can be adjusted forward, backward, left, right, and at an angle;
Three-color hot stamping with accurate overprinting, and the machine can also perform single- and two-color hot stamping;
Electric hot foil feeder with adjustable hot stamping time;
Fine-tuned up and down movement of the hot stamping head for precise control of hot stamping pressure;
Hydraulic hot stamping device, high hot stamping pressure, suitable for a wide range of applications;
Touchscreen operation panel for digital parameter settings;
Safety shield for safe and reliable operation;
Adjustable unloading conveyor speed.

What is a plastic sports Frisbee?

A plastic sports disc is a disc-shaped device made of plastic and used in various Frisbee sports. In 1948, American Morrison, leveraging knowledge of aerodynamics, successfully developed the world's first modern Frisbee from plastic. In 1959, Whamo Corporation established the "Frisbee" brand name. Frisbee spread from a popular sport among college students to all ages and social classes, gradually spawning over a dozen different competitions.

Professional sports Frisbees are typically made of PE plastic, a material with a low density and high hardness, which provides greater stability and distance. A typical Ultimate Frisbee disc weighs 175 grams and is approximately 23 cm in diameter. Its surface must be smooth and glossy to ensure proper speed and direction. Frisbee games include Ultimate Frisbee, Frisbee Golf, Throw, and Accurate Throw. Ultimate Frisbee is a non-contact, 7-on-7 team-based competitive sport that incorporates elements of rugby, soccer, and basketball. Players score by catching passes in a scoring area. Disc golf, on the other hand, uses their hands as clubs and the disc as a ball to propel it toward a target. The winner is the player with the fewest throws.

Printing Methods for Plastic Frisbees:

Hot foil Stamping: Using a hot stamping machine or fully automatic hot stamping machine, you can achieve a metallic sheen on a variety of disc materials. Single-color or multi-color hot stamping is possible.

Screen Printing: Using a screen printing machine. Suitable for large-scale printing, it produces high color saturation, a thick ink layer, strong hiding power, and a strong three-dimensional effect. It is not suitable for discs with textured or grooved surfaces.

Pad Printing: Using a pad printing machine, it is suitable for printing on irregular or curved discs. It can produce precise and detailed designs, easily handles multi-color pad printing, and produces clear and beautiful images. Heat Transfer: A heat transfer machine uses heat and pressure to transfer color images from the film to the disc. This can be used to create a variety of simulated effects, such as leather and wood grain, giving the plastic disc a more upscale look.

UV Printing: Utilizing non-contact inkjet technology, high-precision printheads and an intelligent positioning system, this process produces vibrant colors, high resolution, and excellent wear and corrosion resistance.
