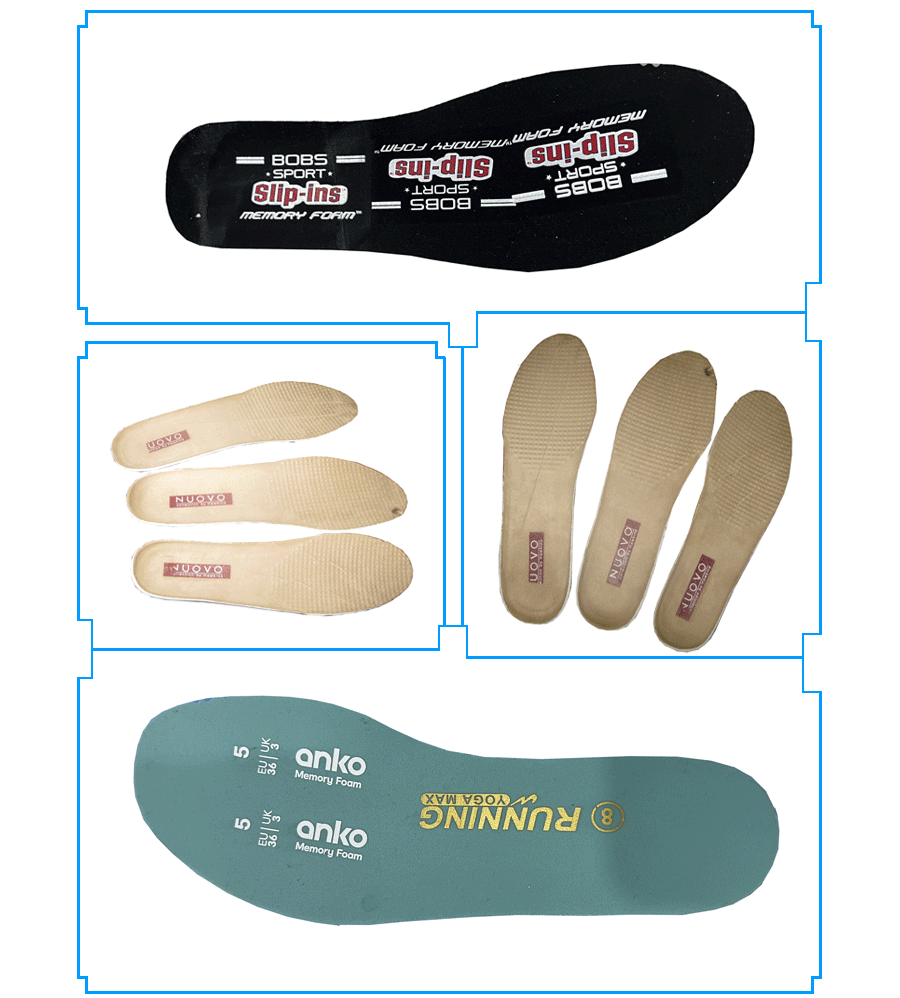

Samples

Insoles are shoe inserts, often sold with shoes. They are one of the most commonly used items in daily life. Brand logos are often printed on the heel contact area for promotional purposes. Decorative techniques include pad printing, silk screen printing, hot stamping, and heat transfer.

Hot stamping and heat transfer machines use heat and pressure to transfer patterns, increasing the added value of insoles. Although their market share is lower than that of pad printing and silk screen printing, they are popular among high-end brand shoe manufacturers. Insoles are made of a variety of materials and have complex surface properties. Rough, textured, elastic, highly deformable, porous, and fleece-like surfaces can hinder pad and silk-screen printing. However, these materials present opportunities for hot stamping and heat transfer machines:

The pressure generated by hot stamping and heat transfer can flatten the insoles for decoration;
Hot stamping and heat transfer can conceal the porous structure of the insoles;
Hot stamping and heat transfer can accommodate insoles made of a variety of materials, including fabric, leather, and plastic;
Flatbed heat transfer machines can precisely position the heat transfer film, allowing for multi-color transfers at specific locations on the insoles, combining the multi-color capabilities of pad printing with the aesthetic appeal of hot stamping.

Data

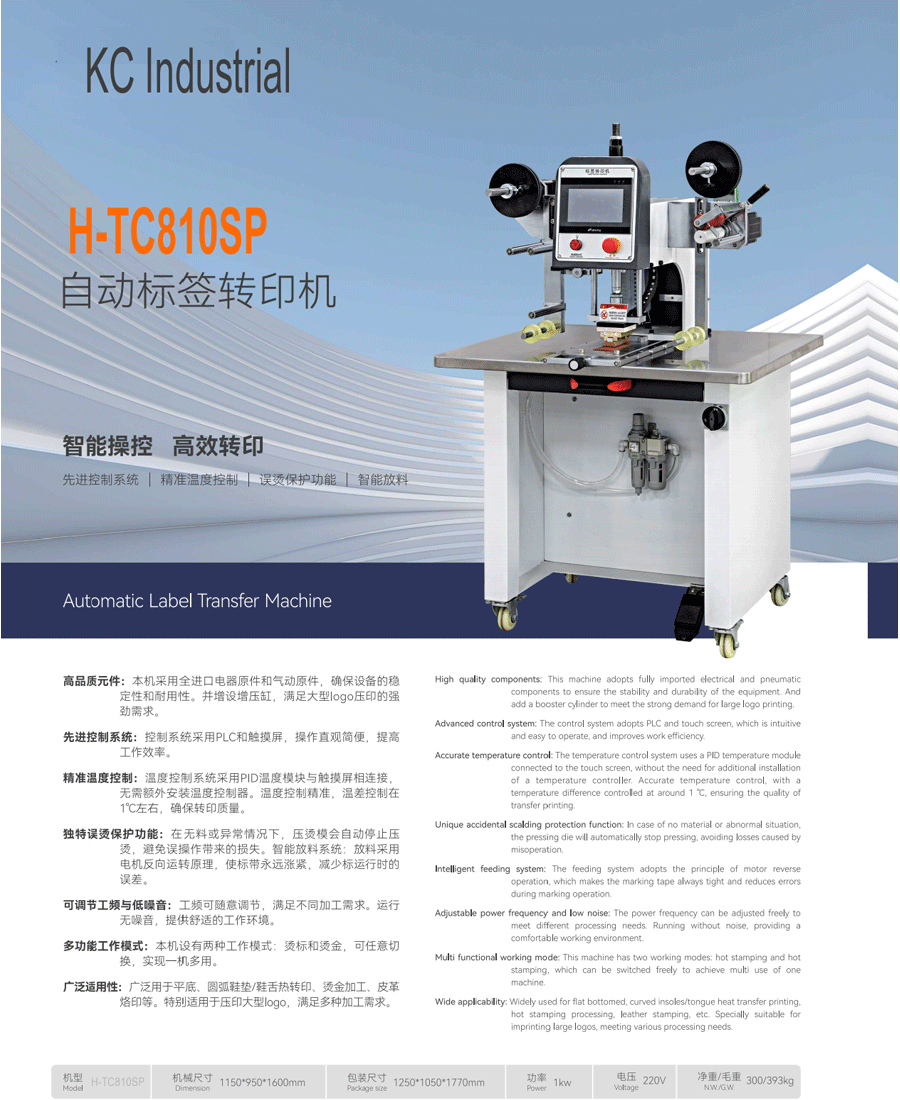

Pneumatic insole hot stamping Machine //Parameter
Technical parameters	H-TC810SP
	Size of stamping plate:80×100mm; Stamping height adjustable range:50mm; Size of working table: 300×1000mm; Stamping temperature adjustable range:0-280; Max. stamping pressure:2000kg; Max. stamping speed:1200pcs/hr; Air consumption:80 liter/min; Heat Wattage:1000W; Max open distance: 150mm.
	Works supply	110V-220VPower supply; 5-7Bar compress air
	Package list	Wooden Case: Package size: 9808801600mm; Gross weight: 380kg.
H.S.Code	8443198000
Certificate	CE

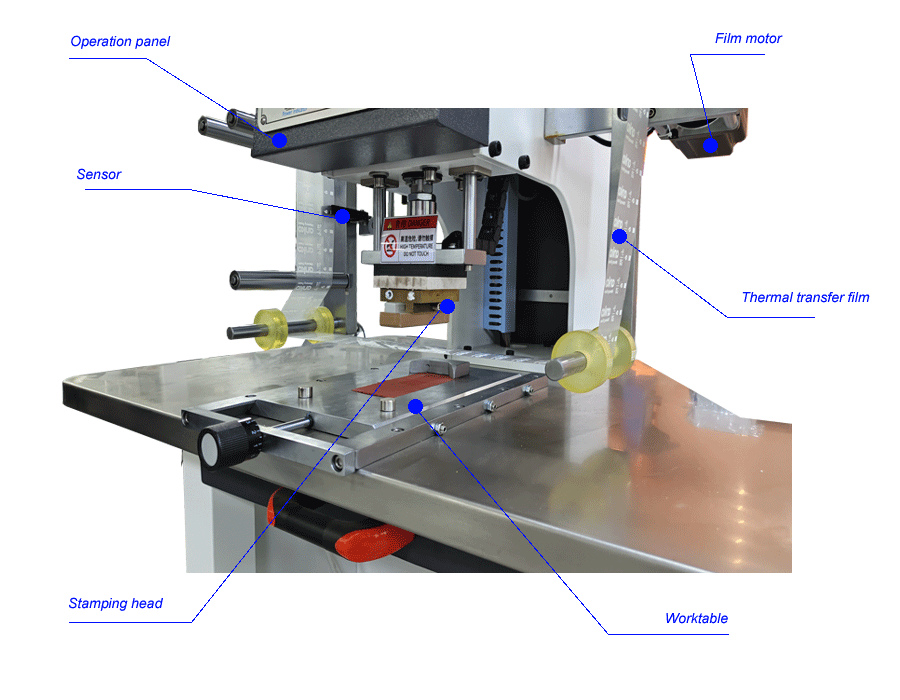

Details-Advantage

Stamping plate can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Stamping head lifting screw adjustment, simple and convenient;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace;
Tabletop type hot stamping machine
