Product details

LED-PET Ex Proof Diffuse Shrink Tube

Product Overview

Heat shrink tube Made of PET polymer material, it integrates high light transmittance, efficient heat dissipation and electrical insulation. It can not only convert the LED point light source into a uniform surface light source, but also form a protective barrier when the glass lamp tube breaks, eliminating potential safety hazards.

Core characteristics

1. Excellent optical performance

Uniform light design: By applying the principles of optical refraction, reflection and scattering of media with different refractive indices, the point light source of LED fluorescent lamps is precisely transformed into a surface light source to achieve uniform lighting without glare.

Light transmittance: 85-93%, Haze: 95-99% (customizable), balancing light softness and brightness output.

2. Dual advantages in safety protection

Explosion-proof protection: After wrapping the glass lamp tube, a buffer layer is formed to prevent fragments from splashing when it breaks, making it suitable for scenarios with high safety requirements such as food processing.

Insulation and heat dissipation: PET material combines electrical insulation and heat conduction capabilities, ensuring the long-term stable operation of the lamp tube.

3. Environmental Protection and Compliance

It complies with the EU RoHS directive, is mercury-free and ultraviolet pollution-free, low-carbon and energy-saving, and meets the requirements of green lighting.

Application scenarios

The light diffusion and explosion-proof protection of LED glass T5 tubes, especially suitable for:

▶ Food Processing Workshop (Preventing contamination by debris)

▶ Pharmaceutical cleanroom (no release of harmful substances)

▶ Commercial lighting (Uniform luminous efficacy requirement)

Project indicators

The initial shrinkage temperature is 60℃

The complete shrinkage temperature is 125℃

The operating temperature range is -55℃ to 125℃

Standard color: White (Other colors are available for customization)

Installation Operation Guide

Size cutting:

Cut each end of the glass lamp tube by 5mm according to its length to ensure a tight fit after contraction.

Wear clean gloves when operating to avoid contaminating the inner wall of the pipe.

Surface treatment:

Wipe the surface of the glass tube with alcohol and dry it to ensure there is no oil stain or dust.

Heat shrinkage process

Put it into the constant temperature heat circulation tunnel oven and bake at 75-85℃ for 1-2 minutes.

Check the integrity of the shrinkage. If the shrinkage is not complete, repeat the operation. (Note: A temperature exceeding 100℃ may cause the product to crystallize and turn black.)

Finishing touches

After cooling, trim the edges with a utility knife and check that the appearance has no wrinkles or black spots before assembly.

Customized service

Support customization of light transmittance and haze parameters to meet the luminous efficiency requirements of different lighting scenarios;

Customizable non-standard colors to adapt to personalized appearance designs.

Through precise optical design and safety protection performance, this product provides a one-stop solution for LED glass tubes, ranging from luminous efficiency optimization to explosion-proof protection.

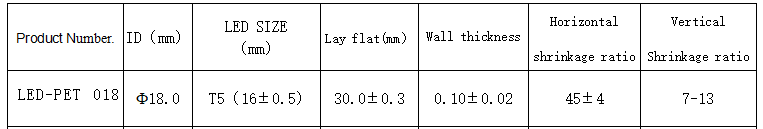

Product Specification

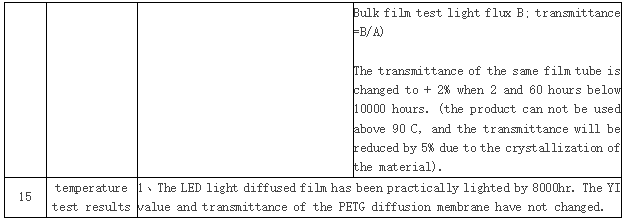

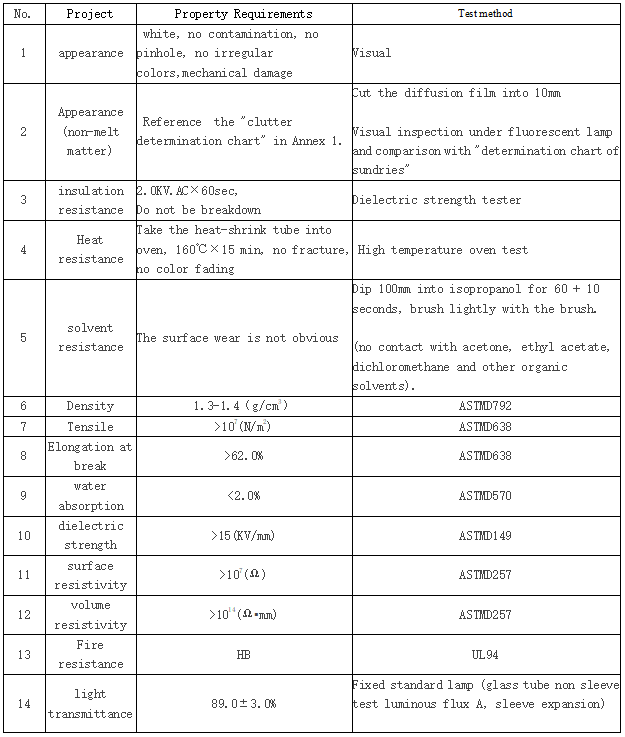

Technical performance
