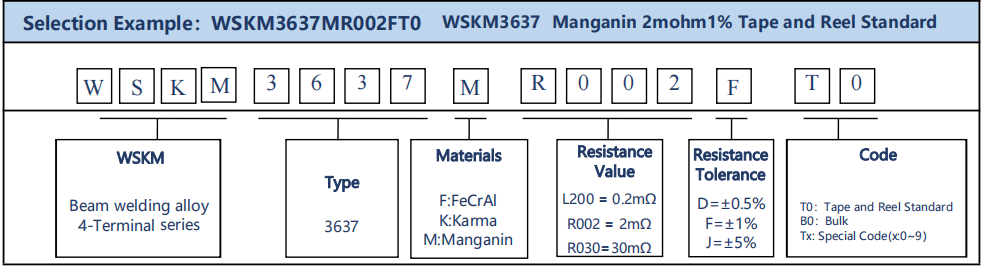

30mΩ WSKM3637 Current Sense Precise Alloy Resistor

3 week ago

4 0

Guangdong Kinwill Electronic Co., Ltd

 4 month year

Product details

Current Sense Precise Alloy Resistor

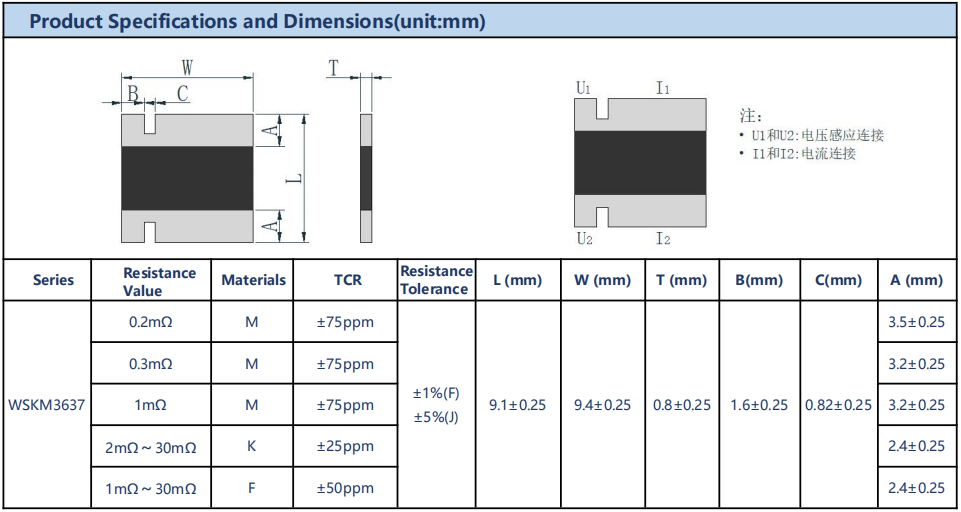

4-terminal precision alloy resistor, used for current detection, surface mount packaging,

Extremely low resistance value with excellent stability, passed AEC-Q200, automotive grade reliability test.

Product Features:

- 4-terminal Kelvin sampling, pure copper electrodes, ideal solution for current detection applications.

- Good product consistency, high reliability and stability, strong pulse resistance.

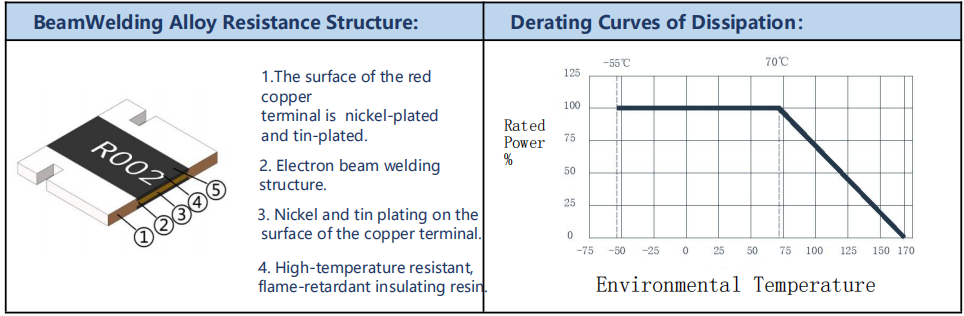

- Vacuum electron beam welding process, all-metal structure, high-temperature resistant resin molding encapsulation, strong weather resistance.

- Extremely low thermoelectric potential.

- Ultra-low parasitic inductance, fast response speed, suitable for high-frequency current detection.

- Compliant with RoHS and other environmental protection requirements.

- Supports special specification customization.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
