Beam-Welded Alloy Current-Sensing Resistor

Square beam-welded alloy resistors are used for current sensing, featuring SMD mounting and high stability.

Passed the AEC-Q200 automotive-grade reliability test.

Product Features:

Adopting electron beam welding process and pure copper electrodes, it is an ideal solution for current sensing applications.
Excellent product consistency, high reliability and stability, strong pulse resistance, and good long-term stability.
All-metal structure with surface pickling and passivation treatment, featuring strong sulfidation resistance and weather resistance.
Ultra-low parasitic inductance and fast response speed, suitable for high-frequency AC current detection.
Compliant with RoHS and other environmental protection requirements.
Customization of special specifications is available.

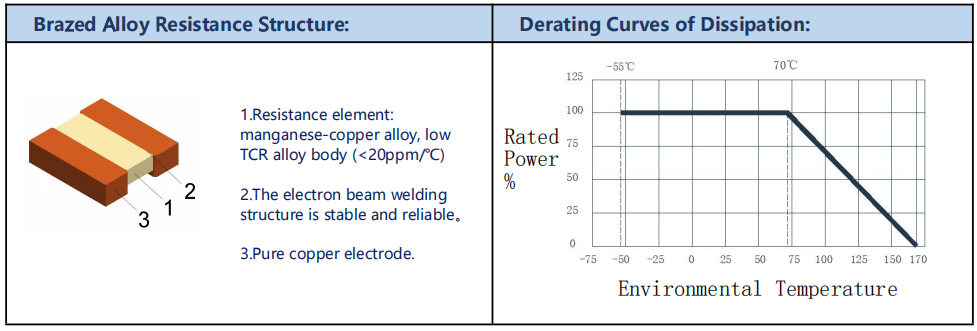

Beam Welding Shunt SMD Resistor Structure and Derating Curves of Dissipation:

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
