5mohm 1% WSM2817 E-beam Welding Alloy Resistor

2 week ago

2 0

Guangdong Kinwill Electronic Co., Ltd

 4 month year

Product details

Beam Welded Metal Alloy SMD Resistor

Welding alloy resistor, Used for current detection, Surface mount packaging, High power.

With excellent stability, passing AEC-Q200 automotive-grade reliability tests.

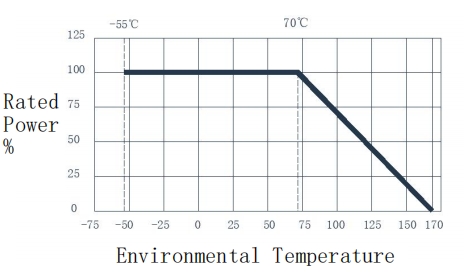

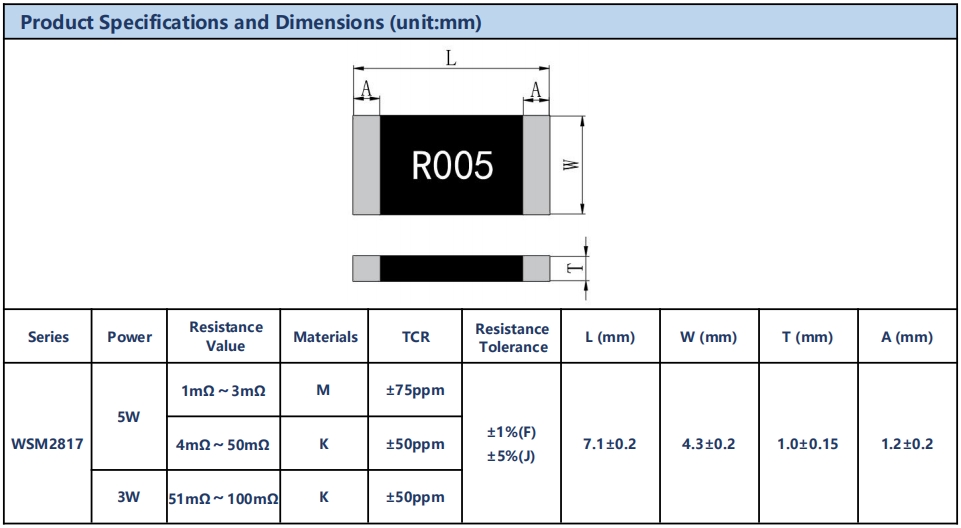

Beam Welding Alloy Resistance Structure and Derating Curves of Dissipation:

1. The surface of the pure purple copper terminal is nickel-plated and tin-plated.

2. Electron beam welding structure.

3. Resistance material: manganese-copper/Kamar alloy.

4. Silk-screen marking.

5. High-temperature resistant insulating flame-retardant resin.

Product Features:

* Electron beam welding technology, pure copper electrodes, making it an ideal solution for current detection applications.

* Good product consistency, high reliability, stability, and strong pulse resistance.

* Special welding process, all-metal structure, resistant to high-temperature resin molding encapsulation, and strong weather resistance.

* Extremely low thermoelectric potential.

* Ultra-low parasitic inductance, fast response speed, suitable for the detection of high-frequency alternating current.

* Compliant with environmental protection requirements such as RoHS.

* Supports customized special specifications.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
