Ribbon sublimation transfer machine

7 day ago

0 0

 9 year year

Product details

Introduction

Ribbon Heat Sublimation Transfer Machine is a printing device that uses the principle of thermal sublimation to directly penetrate patterns or texts into the surface of the printed object through a ribbon. This device is usually used to print fine patterns, images or texts on various materials, such as cloth, paper, plastic, etc.

Features

High-precision printing: The thermal transfer ribbon sublimation transfer machine can achieve high-precision printing, with clear edges and rich colors for patterns and texts.

Multi-material applicability: The device is suitable for printing on a variety of materials, including but not limited to cloth, paper, leather, plastic, etc.

Environmental protection and energy saving: No solvent or ink is required during thermal sublimation printing, so the impact on the environment is small, and the energy utilization efficiency is high.

Personalized customization: Due to the high precision and multi-material applicability of thermal sublimation printing, personalized customization is possible to meet the different needs of users.

Performance

Printing speed: The printing speed of the thermal transfer ribbon sublimation transfer machine is usually fast, which can meet the needs of large-scale production.

Print quality: The printing quality is high, the color reproduction is high, and the patterns and texts are clear and delicate.

Stability: The equipment has good stability and can maintain stable printing quality and performance during long-term continuous work.

Ease of use: The equipment is simple to operate, easy to learn and master, and reduces the difficulty and cost of operation.

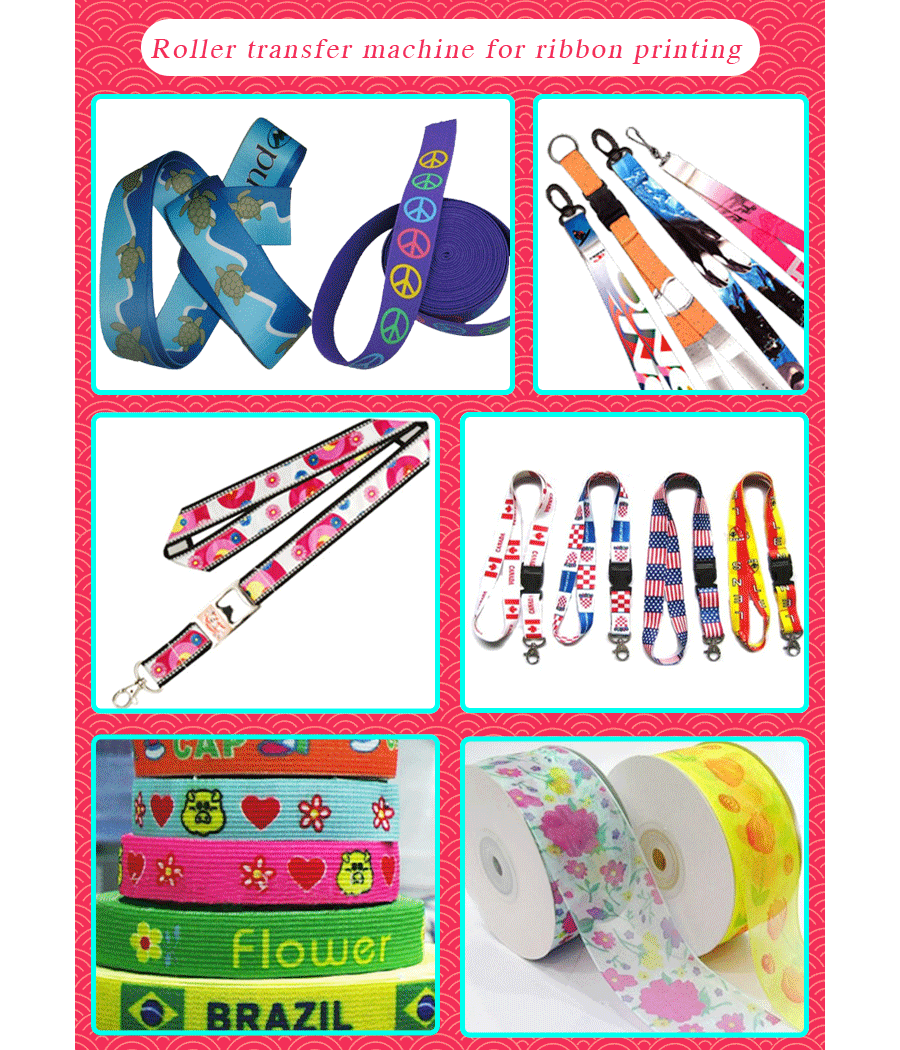

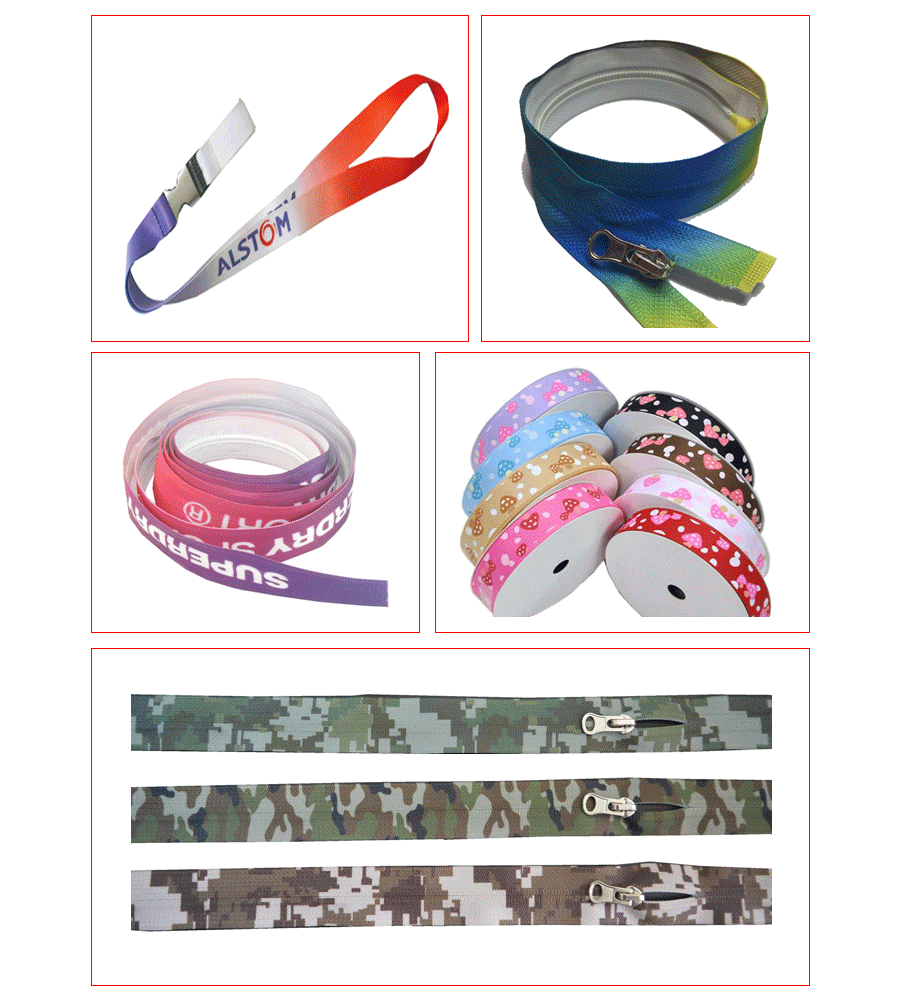

Printed Samples-Application

Textile industry: Thermal transfer ribbon sublimation transfer machines are widely used in the textile industry to print patterns and texts on various fabrics, such as T-shirts, shirts, skirts, etc.

Advertising industry: In the advertising industry, thermal sublimation printing technology is used to make various billboards, posters, leaflets and other promotional materials.

Gift industry: The gift industry also widely uses thermal sublimation printing technology to make various personalized gifts, such as cups, plates, mobile phone cases, etc.

Packaging industry: In the packaging industry, thermal sublimation printing technology is used to make various exquisite packaging materials, such as packaging boxes, wrapping paper, etc.

Technicals Data

AB4260 Ribbon Heat trasfer machine.
Voltage: 380V.
Power: 12KW
Temperature Range: 0-399°C
Time range: 0-999Sec.
Table size:60X37.5cm
Speed range Of roller 0.-3.5M/minutes
Weight:400kg

AB4290 Ribbon Heat trasfer machine.
Voltage: 380V.
Power: 14KW
Temperature Range: :0-399°C
Time range: 0-999Sec.
Table size:90X37.5cm
Speed range Of roller 0.-3.5M/minutes
Weight:500kg

AB42120 Ribbon Heat trasfer machine.
Voltage: 380V.
Power: 16KW
Temperature Range: :0-399°C
Time range: 0-999Sec.
Table size:120X37.5cm
Speed range Of roller 0.-3.5M/minutes
Weight:600kg

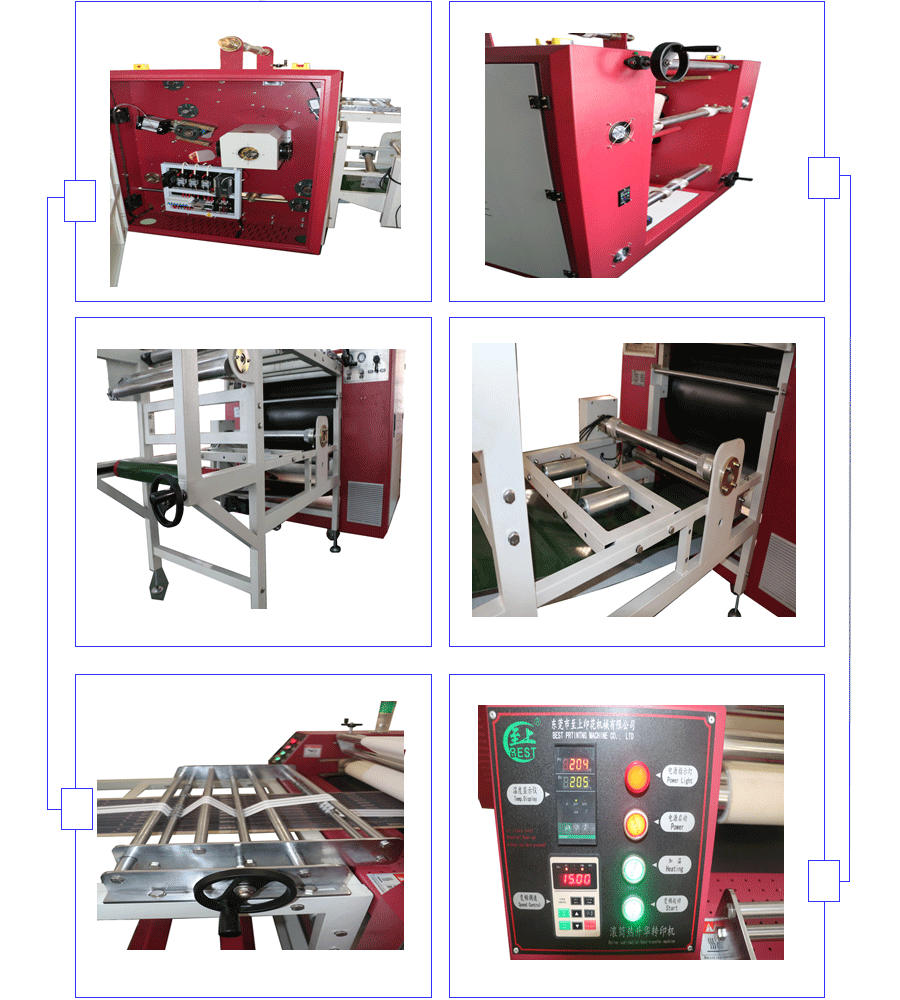

Advantages

1. Selection of high quality carpet belt conveyors, which will help the passing of the pressure of the transfer process;
2, The use of advanced control system, imported components, automatic limit performance (accuracy, safety), long service life;
3.Microcomputer of the PID control temperature control system, high accuracy (0.5 ° C);
4 Time display all-digital, high accuracy;
5. Imported high quality heating plate material, the use of vacuum gas heating and oil heating two devices, even heating, and thermal conductivity, the oil thermal conductivity structure, transfer color uniformity.
6, One-piece quantities can be produced, large-diameter bearings, wearing parts of heating systems and easy maintenance;
7 Transmission glue stick with the Japanese brand of raw materials, long service life;
8. Configure the backup power supply. Are available upon request, instead of imitation imports of blankets from the structure, avoid blanket artificial corrective trouble drawbacks.
9 U.S. imports "DuPont" raw materials, high-capacity heat-conducting oil, temperature effect, continuous transfer without color;
10 Diameter of 377mm roller, the transfer speed inverter speed control, frequency conversion timing motor, carbon brush conductive heating, automatic release paper, cloth and the collection of paper, cloth.
11 Motivated type of fabric conveyor greatly expand the functions of the machine, not only suitable for the transfer of rolls of fabric, but also for more personalized pieces of the transfer process.
12 with the specialized conducting device for the accurate delivery of the different widths of ribbon.
13 installed at the same time the number of ribbon to carry out transfer, the production efficiency..

Ribbon Heat Sublimation Transfer Machine is widely used in many industries such as textiles, advertising, gifts, packaging, etc. due to its high precision, applicability of various materials, environmental protection and energy saving, personalized customization and other characteristics and advantages.
