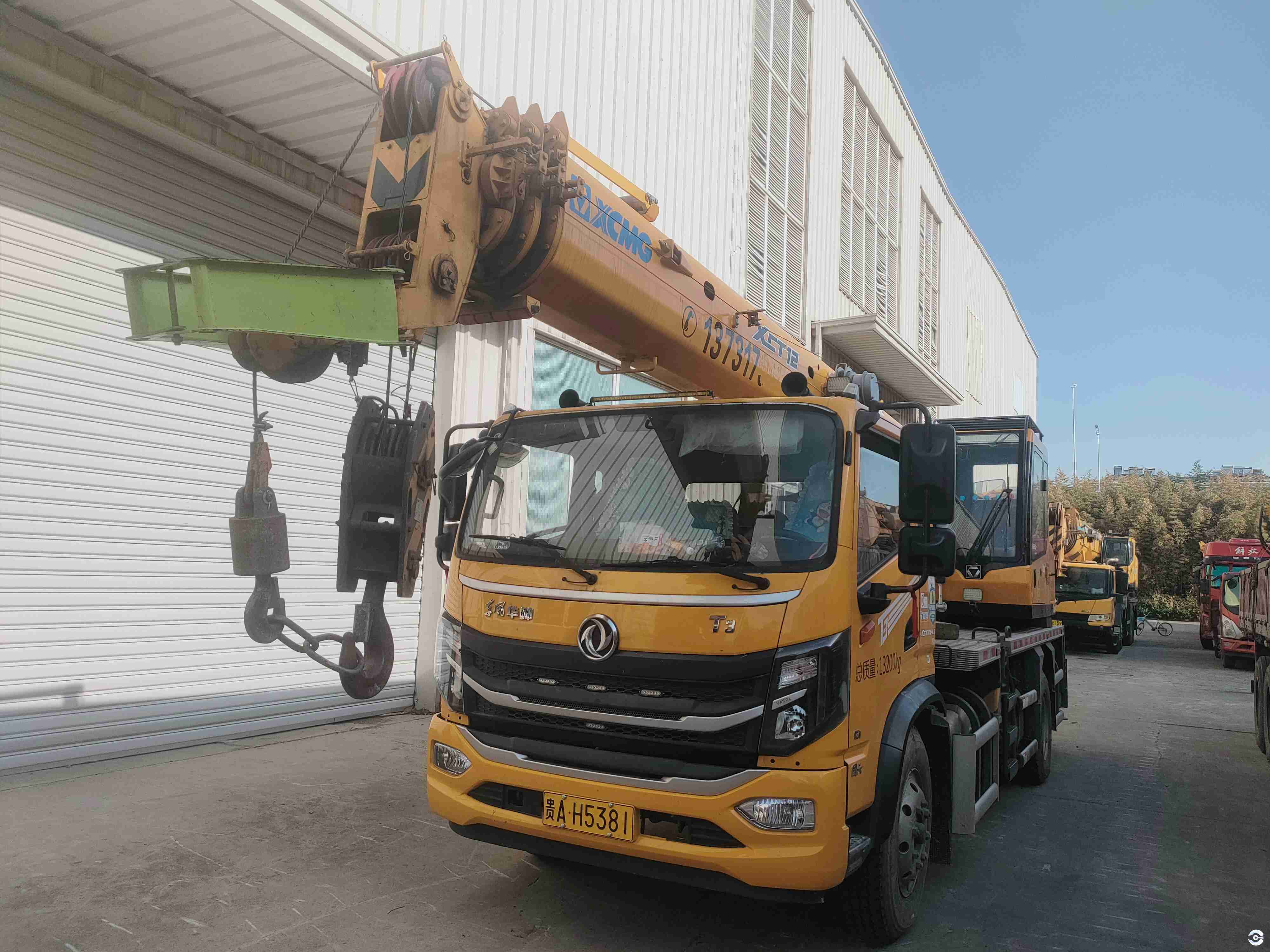

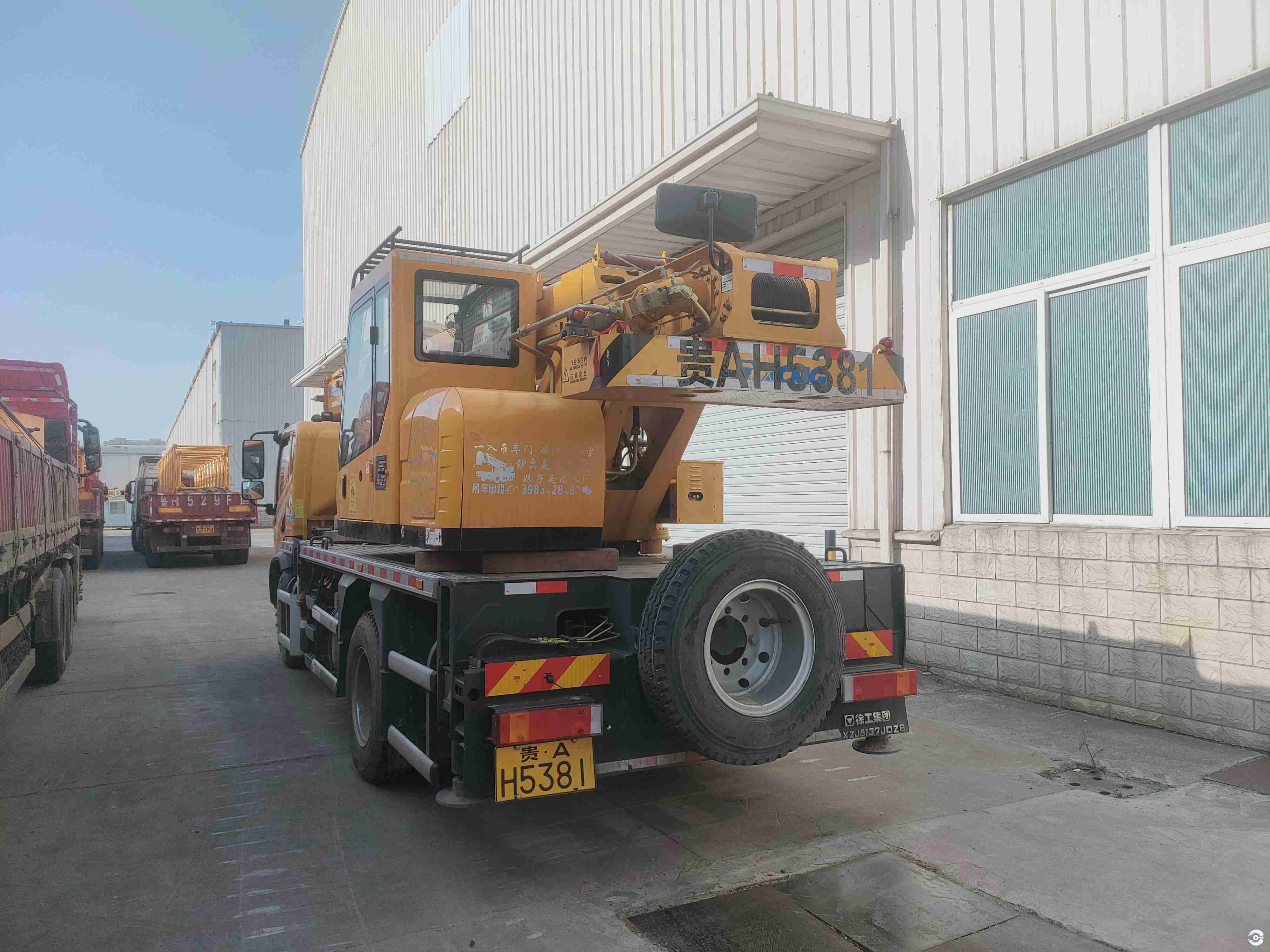

XCMG 8 Ton Truck Crane Xct8l4 with Best Price
XCT8L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
4-section boom of 25.5 m with Octagon-type profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 20% higher than that of the competitors, theperformance of medium-long boom is higher.
The min. stable slewing speed is 0.3°/s. The min. stable lifting speed (drum) is 3.0m/min. Precise and safe lifting movements can be realized.
Spiral spring clutch is upgraded by diaphragm spring clutch, torque transfer efficiency improves 10%; with large-ratio transmission adopted, max. grade ability is up to 35%; max. travel speed is 90km/h, ranking first in the industry.
Dimension | Unit | XCT8L4 |
---|---|---|
Overall length | mm | 9375 |
Overall width | mm | 2400 |
Overall height | mm | 3240/3170 |
Total weight in travel | kg | 12300/12100 |
Max. travel speed | km/h | 90 |
Min. turning diameter | m | 16 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 18 |
Departure angle | ° | 13 |
Max. grade ability | % | 35 |
Fuel consumption for 100km | L | 18 |
Max. rated total lifting capacity | t | 8 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 2.327 |
Max. lifting torque | kN.m | 302 |
Base boom | m | 8.5 |
Max.main boom | m | 25.6 |
