Why do wine bottle caps need hot stamping?

Wine bottle caps, especially those for white wine, require hot stamping on the sides or top to enhance the product's visual quality and brand recognition. Semi-automatic hot stamping machines, fully automatic hot stamping machines, and fully automatic heat transfer machines are commonly used for hot stamping bottle caps.

1. Enhanced Texture: Hot stamping creates a metallic luster on the bottle cap's surface, creating a refined and high-end look. This aligns with the perceived quality and gift-like qualities of wine, especially mid- to high-end white and red wines, attracting consumers' attention.

2. Strengthen Brand: Wine bottle caps are a key part of brand presentation. Hot stamping patterns and text (such as brand logos and product names) create high contrast and a three-dimensional effect, resisting wear and fading. Hot stamping clearly conveys brand information over time, helping consumers quickly identify the brand and enhancing brand recall.

3. Improved anti-counterfeiting and durability: Some hot stamping processes (such as hot stamping special textures and combining hot stamping foil materials) have certain technical barriers and can help improve product anti-counterfeiting and reduce counterfeiting. At the same time, the hot stamping layer can protect the bottle cap surface to a certain extent, resisting minor friction or environmental impact, and extending the appearance and service life.

Full automatic cap-side hot stamping Machine //Structure
Feeding	Crawling robot
Working table	12 stations rotating disk, index plate control
Press	Vertical press
Temperature control	IR Heater, automatically controlling
Foil collecting	Automatically collecting
Full automatic cap side hot stamping machine //Usage and characters

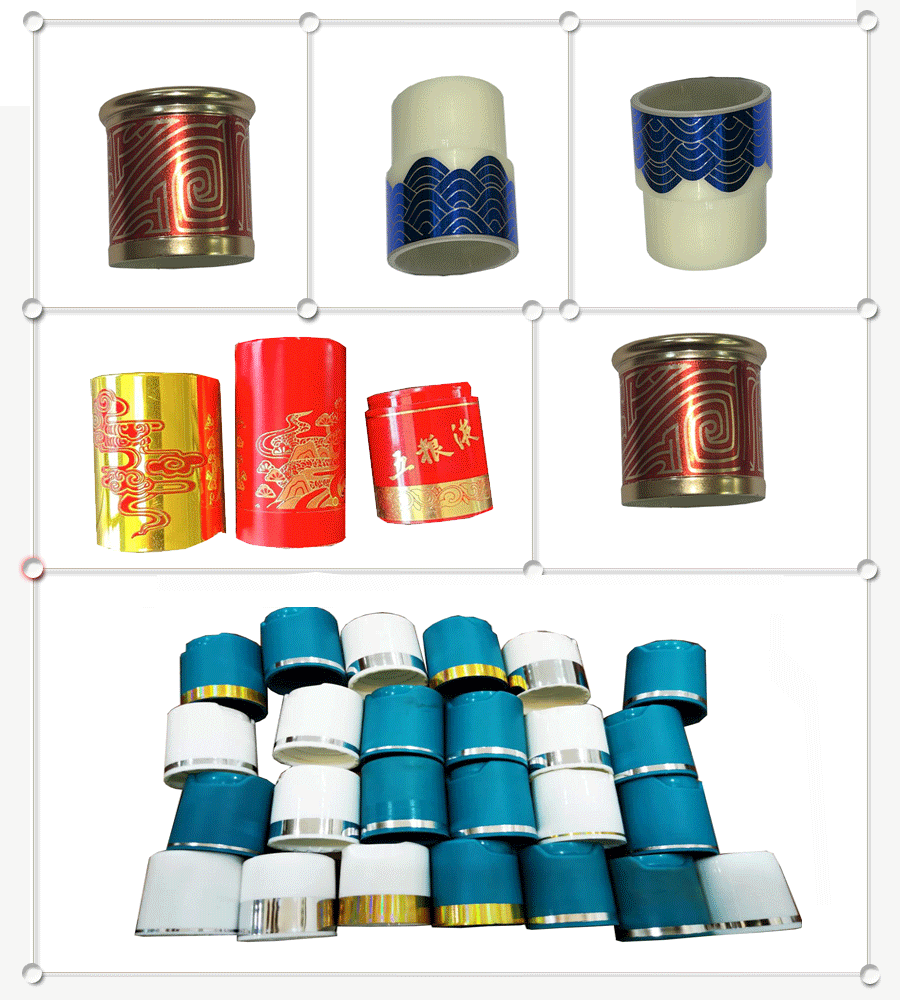

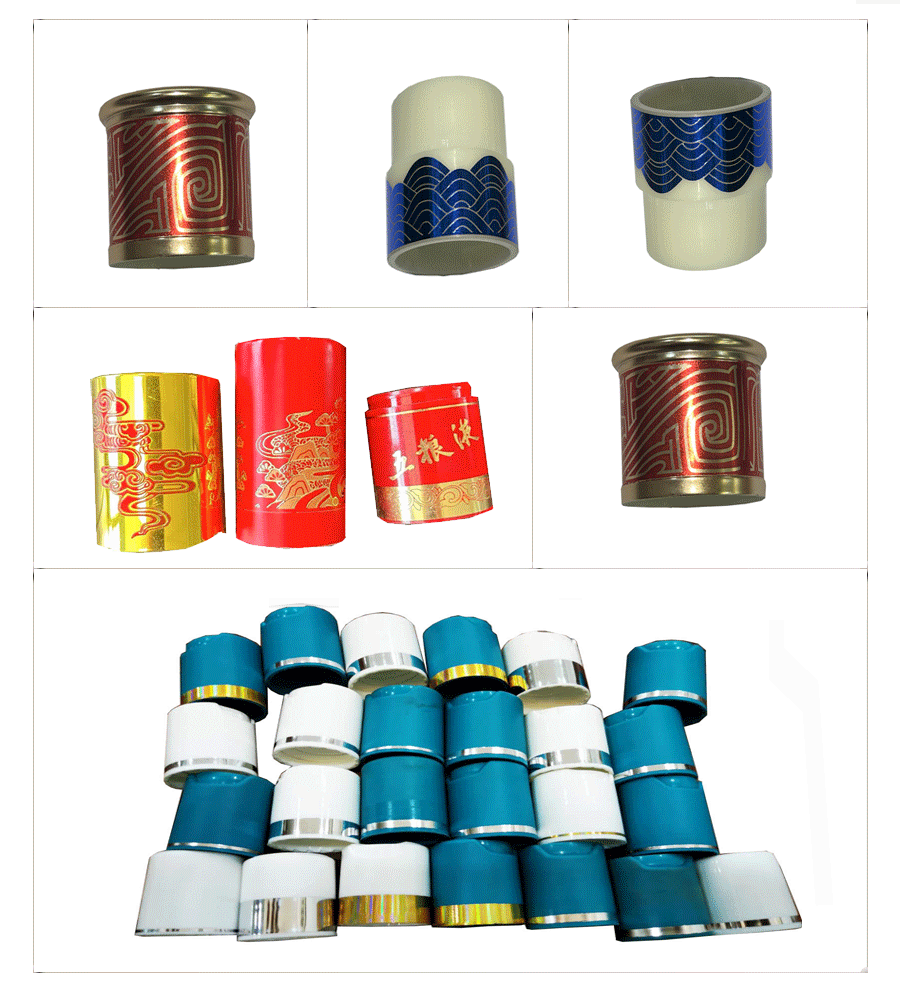

Application fields	35mm in diameter, about the various sides of the foil cap; All kinds of plastic material cap bronzing; Various painted metal surface on the side of the bottle cap gilt; Liquor industry, plastic containers and packaging industry, cosmetics industry, cap side tipping.
Full automatic cap-side hot stamping Machine //Parameter
Technical parameters	Total consume Wattage: 260W; Stamping temperature Rnange:20∼300℃; Compress air Pressure﹕5－8Bbar; Products Diameter:﹕（φ15~Φ35mm）×（20~60mm） Max stamping Speed:2000-3000pcs/h Outer dimension: 2300×2160×1200mm; Net weight(kg) : 420; Motor wattage: 1500W; Power supply: 220V; Heater wattage: 800W IR.
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size: 2770×1680×1790MM; Gross weight: 745kg CBM: 8.329
H.S.Code	8443198000
Certificate	CE

Machine advantage

Vertical cylinder pressure mechanism design, a strong pressure;
Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
Stamping pressure, temperature, time stamping adjustable;
Automatic foil feeding , Foil collection, and adjustment;
Lift stamping head height adjustable;
Bin storage, automatic Crawler installed for cap feeding;
Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
Automatic stamping process;
The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
With a square column design, the machine structure, solid and durable;
Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
Rotary table design automatic inflatable device for stamping cap sideways。

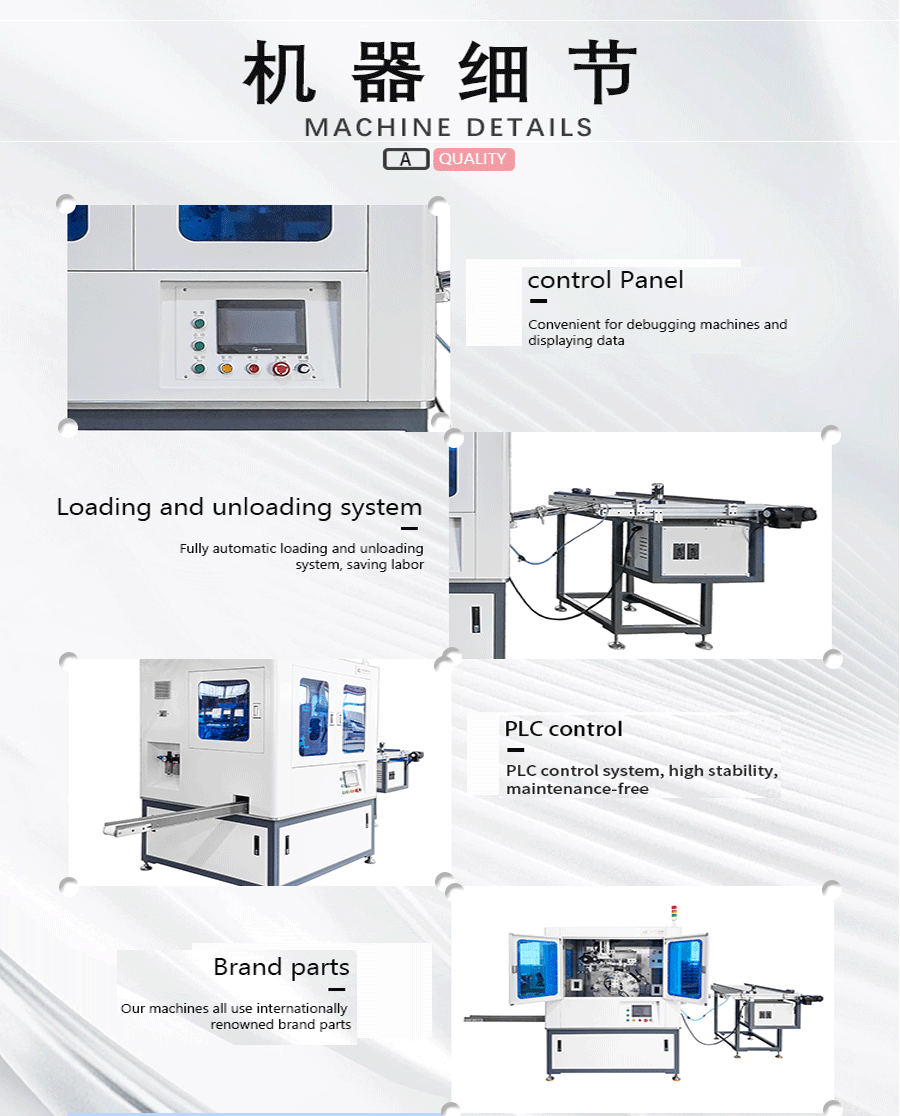

Machine details

This fully automatic curved hot stamping machine is specifically designed for circumferential hot stamping of cylindrical plastic products with a diameter of less than 50mm, such as bottle caps and cosmetic caps. The machine consists of a loading system, a vertical turntable, a loading robot, a servo hot stamping device, an automatic rewinder, a touchscreen operation panel, and an unloading robot. Bottle caps are placed on the loading tray, where a screening mechanism arranges them in a specific order and feeds them onto a loading conveyor. The loading robot pushes the caps onto a dedicated fixture on the vertical turntable. The turntable then rotates counterclockwise, driving the fixture and the products through the dust removal, positioning, hot stamping, and unloading mechanisms. The unloading mechanism removes the hot stamped products and places them onto the unloading conveyor. The hot stamping machine is fully controlled by a servo system combined with a starting system, ensuring smooth operation and high precision, capable of reaching speeds of up to 2,500 caps per hour.

The Difference Between Hot Stamping and Thermal Transfer

In the plastic packaging decoration industry, hot stamping and thermal transfer play important roles. While they are closely related, they also have subtle differences. Hot stamping relies on metal foil to achieve a single or holographic metallic effect, while thermal transfer uses transfer film to reproduce full-color patterns.

Specific differences are as follows:

1. Transfer Media:

Hot stamping uses various colored metal foils, typically consisting of a polyester film base with a metal coating. Thermal transfer uses thermal transfer film (including a release layer, color layer, and adhesive layer), which can be pre-printed with full-color patterns.

2. Effects:

Hot stamping can only achieve single metallic colors such as gold and silver, or special textures such as matte and laser, but cannot produce multi-color or gradient effects. Thermal transfer supports full color, gradients, and photo-quality patterns, with high color reproduction and the ability to reproduce complex graphics. 3. Process Focus:

Hot stamping: Using high temperature and high pressure, the metal layer of the foil is peeled off and transferred to the substrate, creating a metallic texture. Thermal transfer: Using high temperature, the color and adhesive layers of the transfer film are melted, resulting in a complete transfer to the substrate, with the emphasis on image transfer.

4. Positioning:

Hot stamping foil has no pattern restrictions, requiring only a rough length limit for transport and no positioning requirements. Thermal transfer film, on the other hand, has an independent pattern integrity and requires positioning during transport. This requires a relative position relative to the product, thus requiring sensor control.

Bottle caps and their printing methods:

Bottle caps are used to seal the openings of containers (such as bottles and cans). They seal and protect the contents, preventing leakage, contamination, deterioration, or volatilization. They are used for storage and transportation, while also being convenient for opening and use. They are widely used in food and beverages (such as mineral water and beverage bottles), daily chemicals (such as shampoo and skincare products), and pharmaceuticals (such as medicine bottles).

Common printing methods for bottle caps include the following:

Silk screen printing: This method is widely applicable and can be used on metal, plastic, and glass bottle caps. It can be used on both the sides and tops of bottle caps. Common fully automatic screen printing machines are widely used.

Pad printing: This method can produce fine text or small designs and is often used for multi-color pad printing on the tops of plastic bottle caps. Fully automatic four-color rotary pad printers are an excellent example. Curved pad printers can be used to print on the sides of bottle caps, but are less efficient and limited to single-color printing. Hot stamping: Hot stamping of bottle caps is also common, particularly on the top and sides. Fully automatic flat-surface hot stamping machines can be used for hot stamping the top, while fully automatic curved-surface hot stamping machines can be used for hot stamping the sides. Some fully automatic hot stamping machines can also stamp both the top and sides simultaneously.

Flexographic printing: Flexographic printing is also a common method for bottle cap printing, renowned for its high speed and multi-color capabilities. However, flexographic printing machines are complex and expensive.

Heat transfer: Thermal transfer allows for rich multi-color transfers. Fully automatic heat transfer machines can transfer a wide range of designs to the top and sides of bottle caps.

UV printing: UV inkjet printing is an advanced decorative process that has become popular in recent years. It eliminates the need for plate preparation and is renowned for its high speed, wide adaptability, and strong color expression. Using UV ink and ultraviolet light curing, designs are wear-resistant, scratch-resistant, and vibrantly colored. It can be used in conjunction with processes such as silk screen printing and flexographic printing, making it suitable for bottle caps requiring high durability. Currently, UV inkjet printers are relatively expensive.
