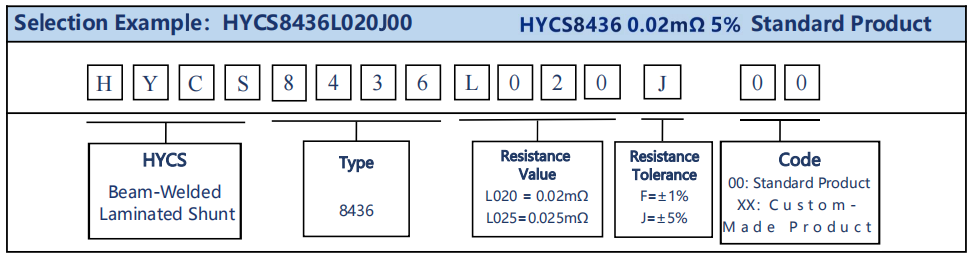

25µΩ HYCS8436L020J00 Ribbon Bonded Flat Strip Shunt

5 day ago

1 0

Guangdong Kinwill Electronic Co., Ltd

 4 month year

Product details

Ribbon Bonded Flat Strip Shunt

Wire Bonded Flat Plate Shunt for high-current signal sampling applications, featuring tolerance down to ±0.5%. Ultra-low resistance, high rated power.

The shunt resistor has passed the AEC-Q200 automotive-grade reliability test, featuring high stability, extremely low thermoelectric potential and temperature coefficient.

Product Features:

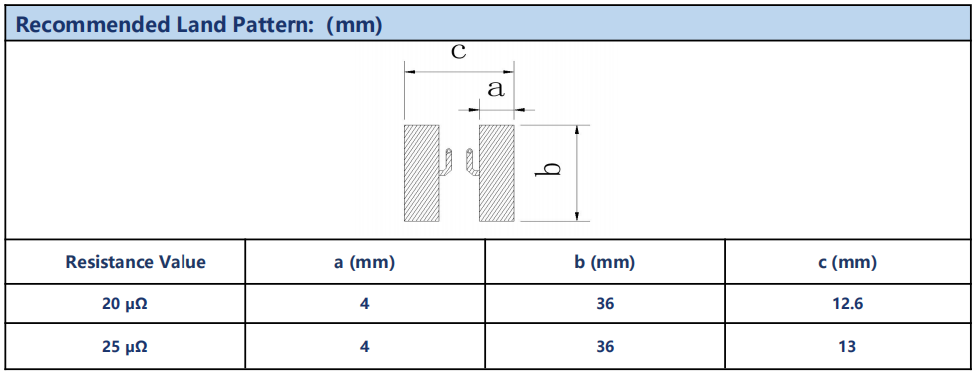

Grooved Flat Plate Shunt for PCB Surface-Mount Current Sampling
Electron Beam Welded Structure for Robust Reliability
Rated power up to: 50W
Maximum fastening torque: 10N
The product features high consistency, reliability and stability, as well as strong pulse resistance
Copper terminals plated with nickel and tin to prevent oxidation and ensure better connectivity
Complies with RoHS & Environmental Regulations

*As a high-tech enterprise in a specialized field, our company is dedicated to providing high-strength, high-power, high-precision, high-reliability, ultra-low resistance, ultra-low temperature coefficient, ultra-low inductance value current sensing alloy resistors and shunt resistors. The product categories include Combined Shunts, Ribbon Bonded Flat Strip Shunts, U-Type Plug-In Shunts, High-Current Power Shunts, Pin-Type Shunt and more. We deliver related solutions for R&D, design, and production in sectors including automotive electronics, medical devices, smart home, measurement instruments, and energy storage BMS.
