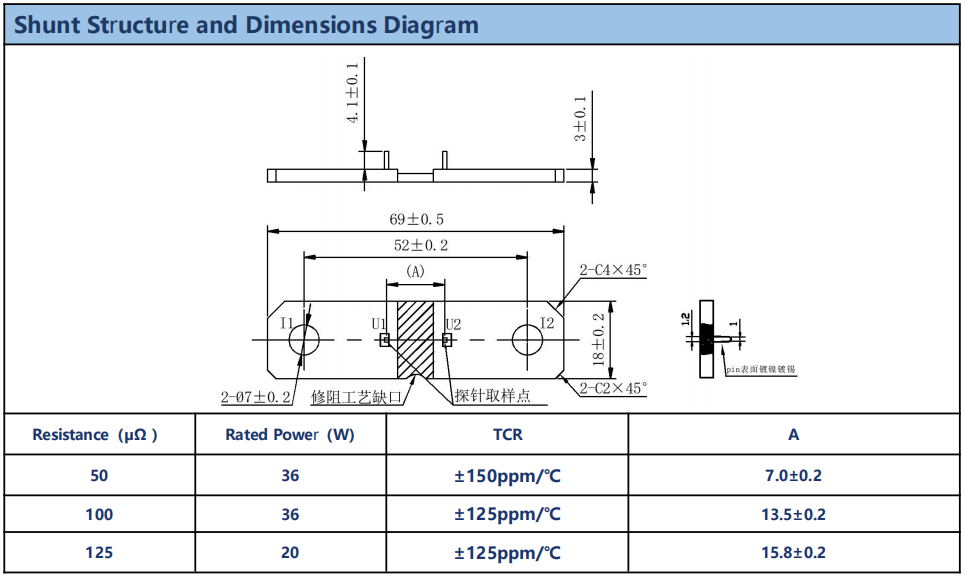

Pin-Type Shunt with defined sampling positions for thermal drift compensation, suitable for precise current sensing on PCB-mounted applications.
Electron beam welded structure ensures robust and reliable performance.
Excellent consistency, high reliability, superior stability, and strong pulse withstand capability.
Available with tin-plated terminals or bare terminals (optional).
Maximum tightening torque: 10 N·m.
Compliant with RoHS & environmental regulations.
Custom specifications supported (upon request).
If you are interested in the product, contact 2bvideo.com for more information for more information
