Product details

Overview

Traditional semi-automatic hot foil stamping machines require manual loading and unloading, which limits production efficiency and increases safety risks due to operator contact with heated stamping components. For high-volume production and standardized packaging applications, fully automatic hot foil stamping machines have become an essential solution for improving productivity, precision, and workplace safety. The Fully Automatic Paper Box Hot Stamping Machine was initially widely adopted in industries such as greeting cards, luxury gift boxes, and jewelry packaging, where high-quality decorative finishing and consistent output are required. Equipped with automatic paper feeding systems, stackers, and adjustable lifting worktables, the machine completes feeding, positioning, hot stamping, and collection processes with minimal manual intervention. Featuring advanced automation technology and precise control systems, the Full Servo Flatbed Hot Stamping Machine provides stable foil feeding, accurate positioning, and consistent stamping pressure, ensuring excellent stamping quality for various packaging materials. With production speeds of up to 1,200 pieces per hour, the High Precision Packaging Box Hot Stamping Machine significantly improves manufacturing efficiency while reducing labor costs and enhancing operational safety, making it an ideal solution for modern packaging and printing production lines.

Foil stamping samples of automatic hot stamping machine

This fully automatic servo flat‑bed hot foil stamping machine is specially designed for high‑quality decoration of gift boxes, paper cartons and packaging products. Equipped with a high‑precision servo drive system, it ensures stable running speed and accurate positioning for consistent, clear hot stamping effects. The integrated hot stamping system provides stable heating and adjustable pressure for reliable foil transfer. The automatic feeding and receiving system uses suction‑cup robotic arms to realize fully automatic material transport and finished product collection, greatly improving production efficiency. Controlled by an advanced PLC and touch screen HMI, the machine supports precise parameter setting, fault diagnosis, alarm prompts and production statistics. It runs stably, operates easily and is widely used in gift box, paper packaging and high‑end printing industries. Paper package automatic hot stamping machine

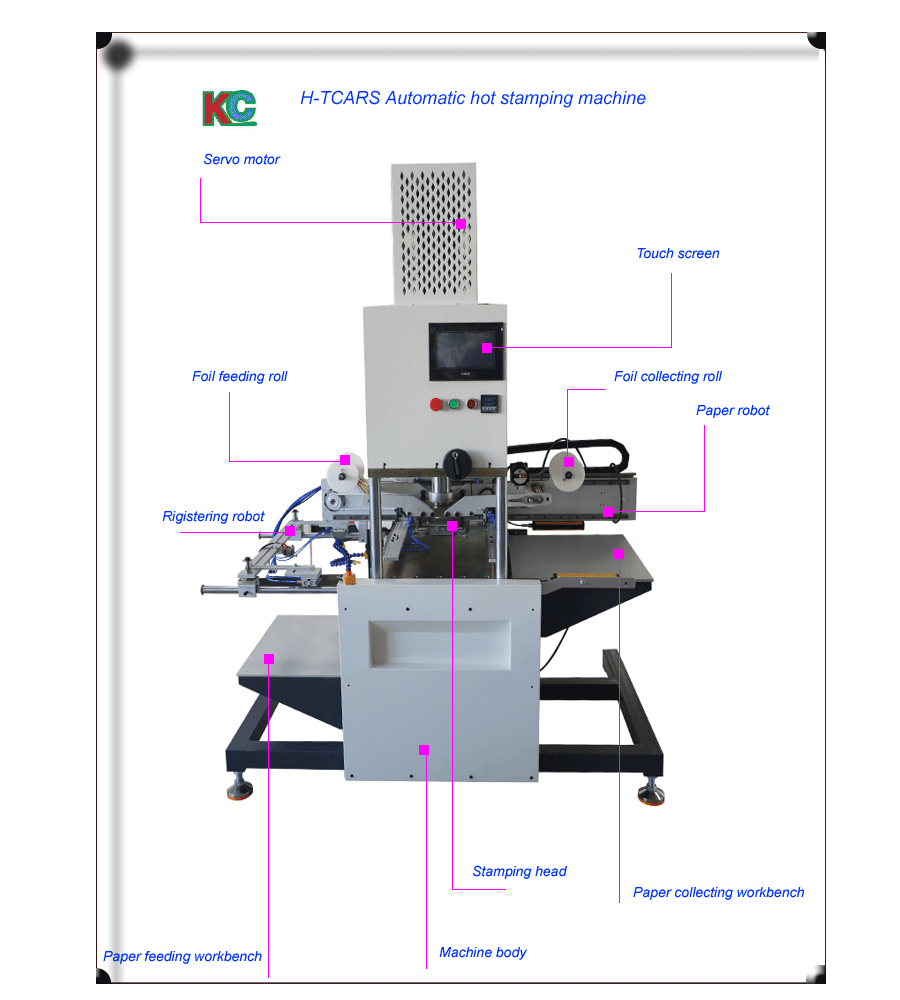

Full automatic paper box hot foil stamping Machine //Structure
Feeding	Paper feeding robot
Initial position	Sensor control , Guide rail
Press	Servo vertical press
Temperature control	IR Heater, automatically controlling
Foil collecting	Automatically collecting
Downloading	Automatically Robot
Full automatic paper box hot stamping machine //Usage and characters
Guide	Hot stamping of plain paper below 400*600mm size; Hot stamping for harder sheets; If the surface of the sheet and paper is printed with graphics, the accuracy of bronzing should not be too high; It is a fully automatic hot stamping machine with automatic stacking paper conveying. It is suitable for large-volume uniform shape documents, greeting cards, books, and document pockets. The structure is designed with a compact central structure; the paper is automatically transported from the stacker and positioned into the hot stamping station; The stable opening and closing movement is controlled by the servo motor , the hot stamping pressure is uniform, and the hot stamping quality is good.

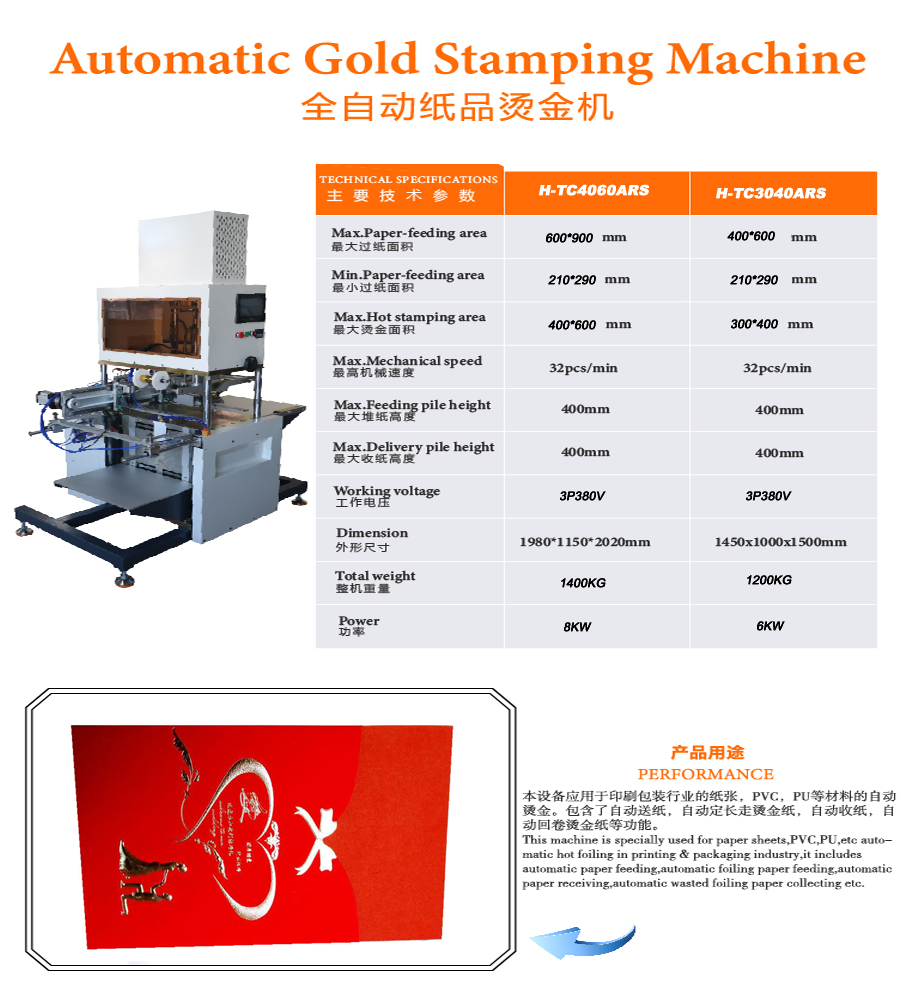

	Stamping temperature Rnange:20∼300℃; stamping size : 300400mm Table size:500500mm Max stamping Speed:1500-2000pcs/h Outer dimension: 1800×1200×1700mm; Net weight(kg) : 1400; Motor wattage: 8000W; Power supply: 3P38020V; Heater wattage: 1800W. Max pressure :10 tons Stamping accurate: 0.1-0.25mm
Works supply	3 P 380v Power supply；

Machine advantage

Automatic hot stamping of paper, PVC, PU and other materials used in the printing and packaging industry. It includes automatic paper feeding, automatic length walking hot stamping paper, automatic paper collection, automatic rewinding of hot stamping paper and other functions.
Automatic paper feeding and automatic paper collection are controlled by servo motors, the paper is accurate, and the error can be controlled within 0.1mm. Both the paper feed table and the paper collection table can be automatically adjusted according to the height of the paper, ensuring the precise positioning of the paper collection and paper feeding.
The automatic bronzing spindle is controlled by a 1500W servo motor with brakes + planetary reducer, which can easily achieve a pressure adjustment range of 0-1.5 tons.
The bronzing temperature control system uses high-precision temperature control switches, thermocouples, and 400W heating plates, and the temperature difference range can be controlled within 2-3 °C, which is extremely effective for temperature-sensitive aluminum hot stamping film.
The automatic paper walking of aluminum galvanized aluminum and bronzing paper is controlled by stepper motor + high-precision pulley, and the fixed length of hot stamping paper is within 0.2mm.
The whole machine is programmable logic controller + touch screen man-machine interface + high-precision servo motor + cylinder control operation, reasonable design, high precision, small appearance and space-saving, especially suitable for jewelry box packaging, wallet watch box packaging, small leather shell, red packet bag, display box PVC and other products surface gilding.

Automatic paper hot foil stamping machine
