PS-2030PT4 Flat screen printing machine with conveyor //

Usage and characters

Turntable screen printing machine is an important type of transition from semi-automatic flat screen printing machine to automatic flat screen printing machine. By upgrading the workbench to a structure that can be rotated and alternately conveyed, the degree of automation of the flat screen printing machine has been improved. The turntable table can be set to 4, 6, 8 or more stations ensure the continuous delivery of products and reduce the waste of time during product printing. After the turntable screen printing machine is equipped with a manipulator, the printed product can be grabbed to the IR drying oven or the conveyor belt of the drying oven to realize a relatively automated production line, which is also a trend of today's screen printing machines. The elements of the rotary screen printing machine include:

Screen printing ink, the type of ink is selected according to the material of the product, and the color is selected according to the color required by the design. Whether it is an ink of a famous foreign brand or a domestic brand, as long as it meets the customer's requirements after testing, it can be delivered.

Screen printing jigs: Turntable screen printing machines usually need to make the same number of jigs as the number of workstations, and the uniformity and interchangeability of the jigs are better.

Screen printing screen: The screen printing screen should be made according to the printing pattern provided by the user. You can hand it over to a third party or make it yourself.

Screen printing squeegee: Screen printing squeegee is usually a rubber tool made of polyurethane material with a rectangular or triangular or even more complex cross-sectional shape. It is in close contact with the screen and squeezes the ink onto the product surface through angle and pressure.

Samples

190

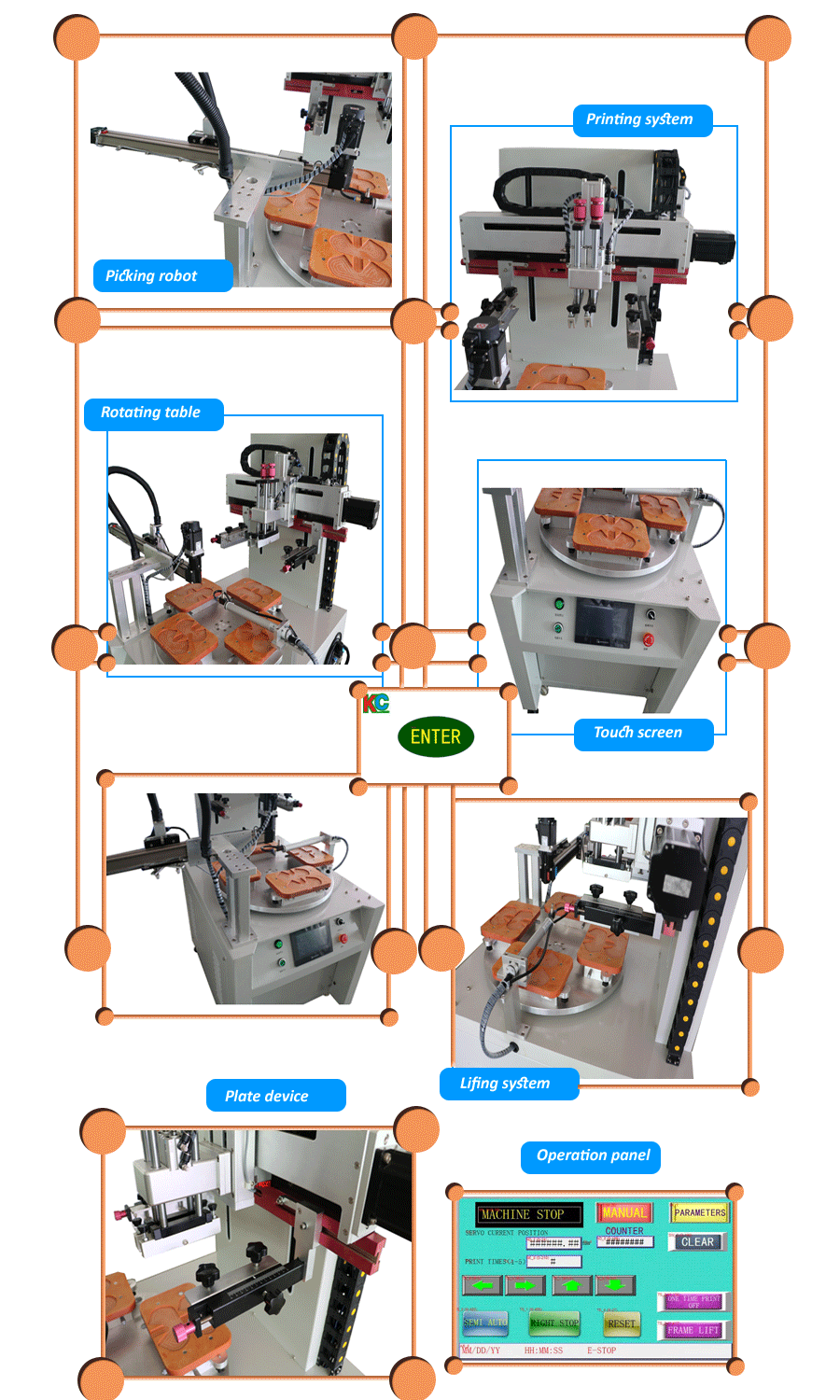

Details-Advantage

Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
Screen lift, precision and smooth running.
Automatically the line scraping oil back to the for mimeographed head movements function.
Printing stroke and speed can be flexibly adjusted.
Automatically balance the scraper technology.
Before and after the screen frame and turn the trim function.
Cast aluminum alloy beams, pneumatic lifting mode.
Foot printing function;
Scraper can set as stopping front or Back;
4 Products installed to improve production printing speed.

Description

- Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
- Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
- The structural design using the up and down movement of the screen plate type, conducive removed and placed;
- Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
- Semi-automatic operation, the operator interface can be used;

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

Flat screen printing Machine with Rotating table //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1970×1450×1650MM;
The max printing area : 180×280MM;
Dimension of working table: 200mm×300mm;
Max printing speed: 1200Pc/H;
Max frame dimension: 550×350mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 200mm;
Number of working table: 4

Screen printing machine workbench

The structure of the screen printer is constantly changing with the changes in the market. The main change is the change in the movement form of the workbench. The change in the movement form of the workbench makes the printing change from intermittent to continuous, realizing the relative automation of the printing process.

1) Flip screen printer

The screen printer can only print on one plane of the product at a time. If the workbench can rotate 90 degrees or 180 degrees, the screen printer can print on different planes of a product. For example, square containers such as beer plastic frames and storage plastic frames are often used for this type of screen printer. Its workbench is controlled by a servo motor and can rotate freely in the vertical direction.

2) Rotary screen printer

The workbench of the rotary screen printer has multiple even-numbered stations forming a disc, which are arranged and rotated along the central axis and enter the printing device in turn. Pre-press devices such as flame treatment devices, plasma treatment devices, and electrostatic dust removal devices can be set between the stations. Post-press devices such as tunnel drying devices and UV curing devices can make the printing process more perfect.

3) Conveyor belt screen printer

A conveyor belt screen printer is a screen printer that is equipped with a conveyor belt. The conveyor belt can run continuously. The operator can place the products on the conveyor belt at a certain interval, and the products will be transported to the printing position in sequence.

4) Slide screen printer

A slide screen printer is a screen printer that can move along the guide rail, or move left and right, or move forward and backward. When moving out, the product can be removed and placed, and when moving into the printing position, printing can be performed. The slide screen printer avoids contact between the operator and the printing device, improving safety.

What is a touch screen?

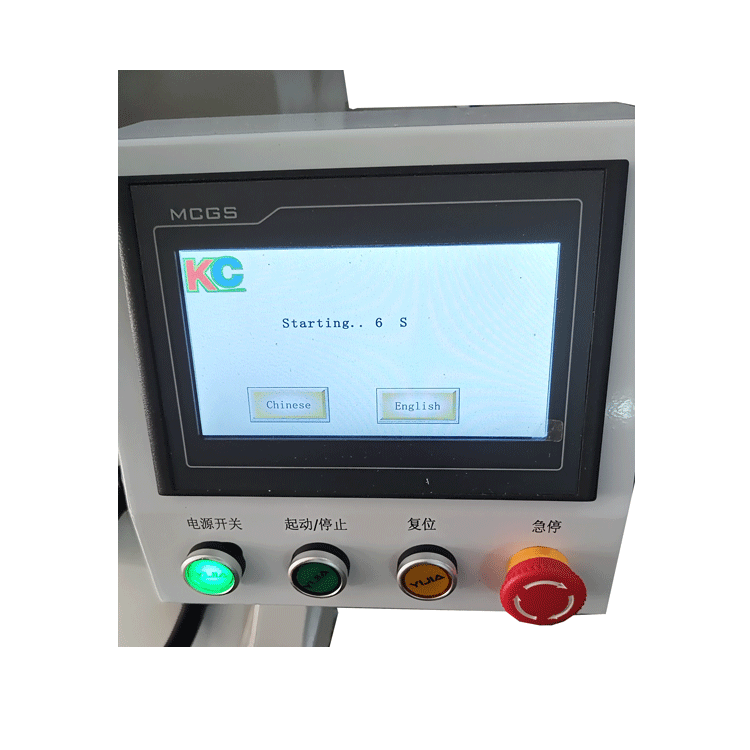

A touch screen is an inductive display screen that can receive touch commands. Users can operate the device (such as parameter setting, function selection, etc.) by touching the screen with their fingers or a stylus. It is simple, intuitive and convenient. Touch screens are widely used in various intelligent pad printers, screen printers, hot stamping machines and various automated printing equipment.

Why does a turntable screen printer need a touch screen panel?

A multi-station rotary screen printer is a more complex semi-automatic screen printer. Due to the installation of a turntable, the screen printing process is continuous, which improves production efficiency. It is equipped with a touch screen panel and has the following advantages:

1. Centralized control.

The turntable screen printer involves multiple stations such as loading, dust removal, printing, drying, and unloading. It is necessary to set multiple parameters such as printing speed, pressure, turntable speed, drying temperature, etc. The touch screen can integrate these parameters in a visual interface, and users can adjust them by touching and clicking.

2. Improve the setting accuracy

The rotary screen printer can be suitable for most flat products. The parameter settings of the touch screen can be digitized and stored in the same way, which is conducive to the management of the characteristics of different products, and the setting accuracy is also greatly improved.

4. Fault prompt

The touch screen itself is also a display screen, which can display the real-time operation status of the screen printer on the screen. At the same time, when the screen printer fails, it can also be judged from the screen, and the fault can be eliminated according to the prompts on the screen. The jamming of the screen printer, motor abnormality and sensor abnormality can be quickly eliminated.

5. Adaptation to automation

Modern rotary screen printers are often equipped with automatic feeding and detection devices. The back-end can be connected to UVLED curing machines and IR tunnel furnaces and connected to automated production lines. The touch screen can be used as a central control hub to realize the linkage between equipment and external devices.

In summary, the touch screen panel is the core control component for the rotary screen printer to achieve precise, efficient and automated production, and can realize friendly operation of human-computer dialogue.
